EL2630 Series

Catalog

OPTOISO 5KV OPEN COLLECTOR 8DIP

Part	Data Rate	Voltage - Supply	Inputs - Side 1/Side 2 [custom]	Supplier Device Package	Output Type	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]	Common Mode Transient Immunity (Min) [Min]	Package / Case	Number of Channels	Current - DC Forward (If) (Max) [Max]	Input Type	Voltage - Forward (Vf) (Typ)	Current - Output / Channel	Operating Temperature [Min]	Operating Temperature [Max]	Propagation Delay tpLH / tpHL (Max) [Max]	Mounting Type

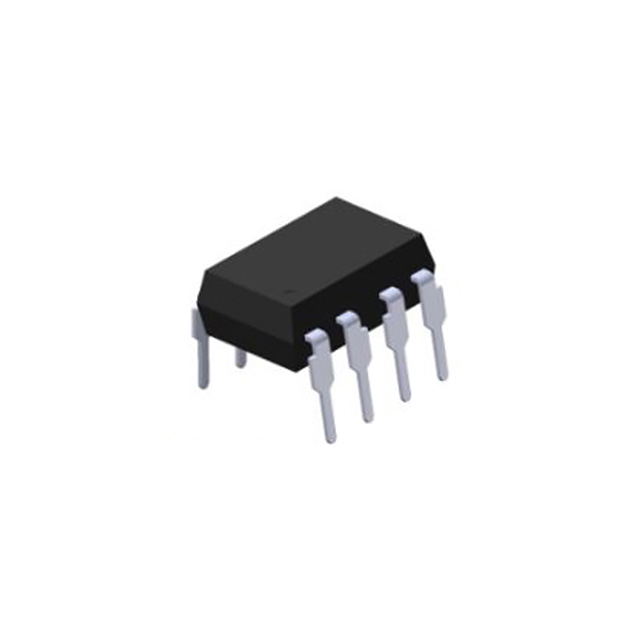

Everlight Electronics Co Ltd EL2630-V	10 Mbps	7 V	2	8-DIP	Open Collector	10 ns	40 ns	5 kV/µs	8-DIP (0.300" 7.62mm)	2	20 mA	DC	1.4 V	50 mA	-40 C	100 °C	100 ns	Through Hole

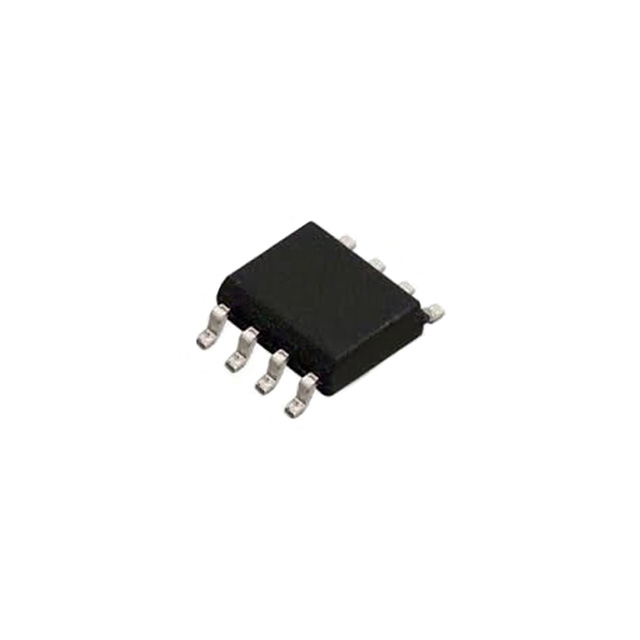

Everlight Electronics Co Ltd EL2630S(TA)	10 Mbps	7 V	2	8-SMD	Open Collector	10 ns	40 ns	5 kV/µs		2	20 mA	DC	1.4 V	50 mA	-40 C	100 °C	100 ns	Surface Mount
Everlight Electronics Co Ltd EL2630S1(TA)-V	10 Mbps	7 V	2	8-SMD	Open Collector	10 ns	40 ns	5 kV/µs		2	20 mA	DC	1.4 V	50 mA	-40 C	100 °C	100 ns	Surface Mount
Everlight Electronics Co Ltd EL2630S(TA)-V	10 Mbps	7 V	2	8-SMD	Open Collector	10 ns	40 ns	5 kV/µs		2	20 mA	DC	1.4 V	50 mA	-40 C	100 °C	100 ns	Surface Mount
