CXM-9-30 Series

Catalog

LED COB SENSUS GEN3 WH SQ 3000K

Part	Voltage - Forward (Vf) (Typ)	Size / Dimension [y]	Size / Dimension [x]	Light Emitting Surface (LES) [diameter]	Current - Test	Type	Configuration	Viewing Angle	CCT (K)	CCT (K)	Color	Current - Max [Max]	Temperature - Test	Lens Type	CRI (Color Rendering Index)	Height [z]	Lumens/Watt @ Current - Test	Luminous Flux @ Current/Temperature	Luminous Flux @ Current/Temperature [Max]	Luminous Flux @ Current/Temperature [Min]
Luminus Devices Inc. CXM-9-30-90-36-AA32-F4-3	34 V	13.5 mm	13.5 mm	9 mm	360 mA	Chip On Board (COB)	Square	120 °	3-Step MacAdam Ellipse	3000 K	Warm White	730 mA	85 °C	Flat	90	1.37 mm
Luminus Devices Inc. CXM-9-30-90-36-AC00-F2-2	35 V	13.5 mm	13.5 mm	9 mm	240 mA	Chip On Board (COB)	Square	120 °		3000 K	Warm White	530 mA	85 °C	Flat	90	1.37 mm	99 lm/W	830 lm
Luminus Devices Inc. CXM-9-30-90-36-AC30-F4-3	34 V	13.5 mm	13.5 mm	9.6 mm	360 mA	Chip On Board (COB)	Square	120 °	3-Step MacAdam Ellipse	3000 K	Warm White	720 mA	85 °C	Flat	90	1.37 mm	123 lm/W	1500 lm
Luminus Devices Inc. CXM-9-30-90-36-AA12-F3-3	35 V	15 mm	15 mm	9 mm	240 mA	Chip On Board (COB)	Square	120 °	3-Step MacAdam Ellipse	3000 K	Warm White	530 mA	85 °C	Flat	90	1.37 mm	104 lm/W	870 lm
Luminus Devices Inc. CXM-9-30-80-36-AC30-F4-3	34 V	13.5 mm	13.5 mm	9.6 mm	360 mA	Chip On Board (COB)	Square	120 °	3-Step MacAdam Ellipse	3000 K	Warm White	720 mA	85 °C	Flat	80	1.37 mm	146 lm/W	1780 lm
Luminus Devices Inc. CXM-9-30-80-36-AA32-F4-3	34 V	13.5 mm	13.5 mm	9 mm	360 mA	Chip On Board (COB)	Square	120 °	3-Step MacAdam Ellipse	3000 K	Warm White	730 mA	85 °C	Flat	80	1.37 mm

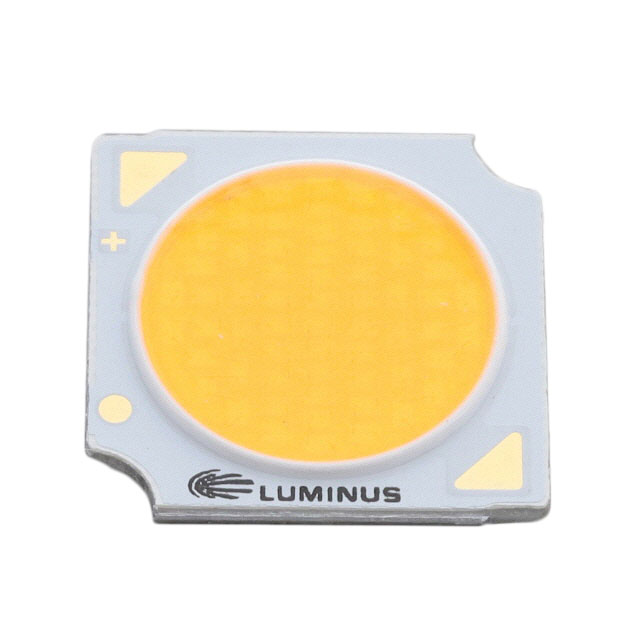

Luminus Devices Inc. CXM-9-30-90-36-AC42-F5-3
Luminus Devices Inc. CXM-9-30-90-36-AA00-F2-2	35 V	15 mm	15 mm	9 mm	240 mA	Chip On Board (COB)	Square	120 °		3000 K	Warm White	530 mA	85 °C	Flat	90	1.37 mm	96 lm/W	810 lm	830 lm	790 lm
Luminus Devices Inc. CXM-9-30-90-36-AA30-F4-3	34 V	13.5 mm	13.5 mm	9.6 mm	360 mA	Chip On Board (COB)	Square	120 °	3-Step MacAdam Ellipse	3000 K	Warm White	730 mA	85 °C	Flat	90	1.37 mm	123 lm/W	1500 lm
Luminus Devices Inc. CXM-9-30-80-36-AA12-F3-3	35 V	15 mm	15 mm	9 mm	240 mA	Chip On Board (COB)	Square	120 °	3-Step MacAdam Ellipse	3000 K	Warm White	530 mA	85 °C	Flat	80	1.37 mm	122 lm/W	1025 lm
