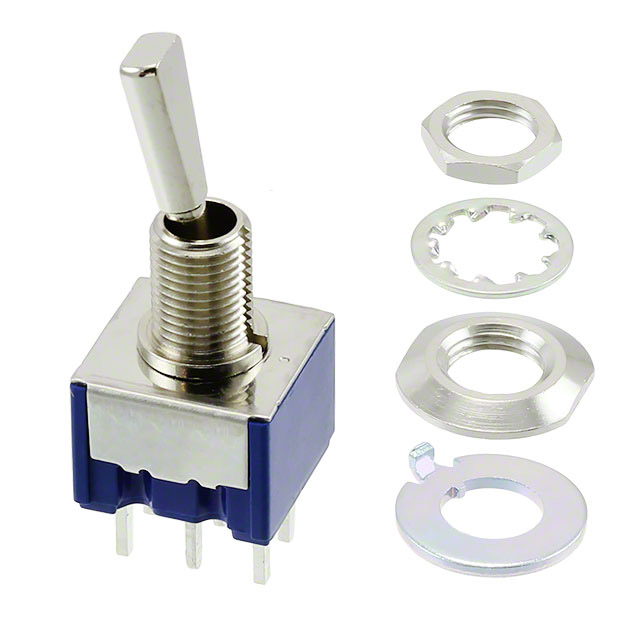

8C2012 Series
Manufacturer: Nidec Components Corporation
Beta
⌘K
SWITCH TOGGLE DPDT 6A 125V
| Part | Electrical Life | Actuator Type | Voltage Rating - AC | Panel Cutout Dimensions [diameter] | Actuator Length [x] | Termination Style | Current Rating (Amps) | Switch Function | Mounting Type | Circuit | Voltage Rating - DC | Bushing Thread | Features | Illumination | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Nidec Components Corporation | 50000 Cycles | Flat Anti-Rotation | 125 V | 6.5 mm | 11.4 mm | PC Pin | 4 A 6 A | On-On | Panel Mount | DPDT | 30 V | 1/4-40 | Sealed - Flux Protection | Non-Illuminated | 85 °C | -20 ░C |
