SM02B-NS Series
Manufacturer: JST Sales America Inc.
Beta
⌘K

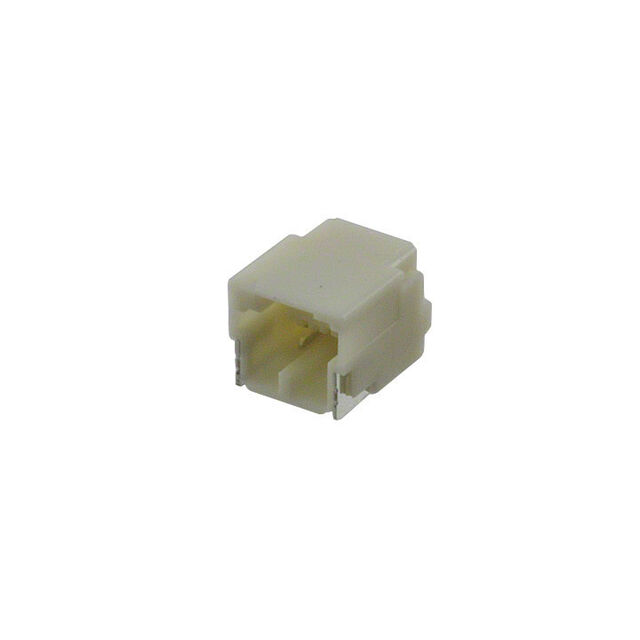

CONN HEADER SMD R/A 2POS 1MM
| Part | Mounting Type | Features | Fastening Type | Number of Positions Loaded | Pitch - Mating | Pitch - Mating | Contact Material | Insulation Material | Connector Type | Number of Positions | Material Flammability Rating | Number of Rows | Shrouding | Contact Finish - Post | Voltage Rating | Style | Insulation Height | Insulation Height | Insulation Color | Contact Type | Operating Temperature [Max] | Operating Temperature [Min] | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JST Sales America Inc. | Right Angle Surface Mount | Solder Retention | Latch Holder | All | 1 mm | 0.039 in | Copper Alloy | Nylon Polyamide (PA) | Header | 2 | UL94 V-0 | 1 | Shrouded - 4 Wall | Tin | 50 V | Board to Cable/Wire | 4.4 mm | 0.173 in | Natural | Male Pin | 85 °C | -25 °C | Solder |
