SMV-28 Series
Manufacturer: Astrodyne TDI
Beta
⌘K

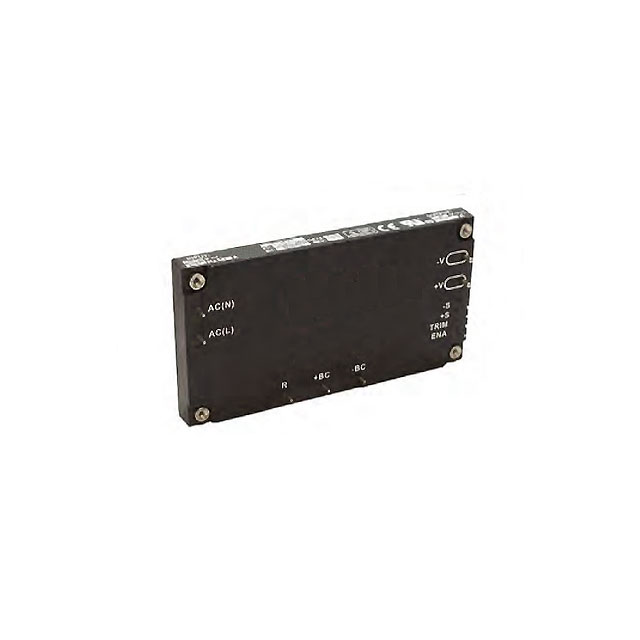

AC/DC CONVERTER 28V 500W
| Part | Line Regulation | Load Regulation | Weight [custom] | Weight [custom] | Power (Watts) | Mounting Type | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Voltage - Output 1 | Current - Output (Max) [Max] | Approval Agency | Features | Applications | Type | Voltage - Input [Max] | Voltage - Input [Min] | Operating Temperature [Min] | Operating Temperature [Max] | Number of Outputs | Package / Case | Standard Number | Efficiency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Astrodyne TDI | 56 mV | 56 mV | 209 g | 0.46 lb | 500 W | Through Hole | 2.4 in | 4.6 " | 12.7 mm | 0.5 in | 61 mm | 116.8 mm | 28 V | 18 A | CE cURus TUV | Adjustable Output Baseplate Remote Sense Universal Input | ITE (Commercial) | Enclosed | 265 VAC | 85 VAC | -40 C | 100 °C | 1 | Full Brick | 60950-1 | 90.5 % |
