500-080 Series

Manufacturer: EDAC Inc.

Catalog

ZD CONNECTOR 2.0MM HARD METRIC,

Part	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating	Features	Number of Positions Loaded	Pitch	Pitch	Contact Finish	Contact Finish Thickness	Mounting Type	Connector Style	Connector Type	Termination	Number of Positions	Number of Rows

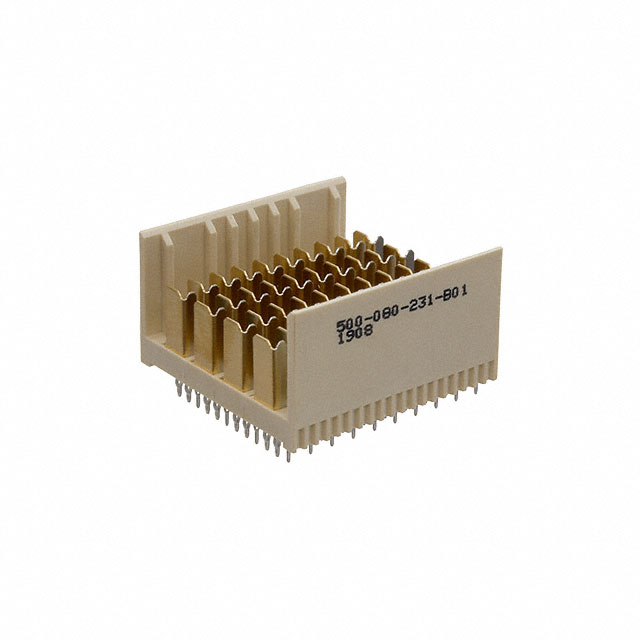

EDAC Inc. 500-080-231-B01	105 ░C	-65 ░C	250 VAC	Jackscrew Socket Mating Guide	All	2.5 mm	0.098 in	Gold	Flash	Through Hole	ZD	Header Male Pins and Blades	Press-Fit	80	8

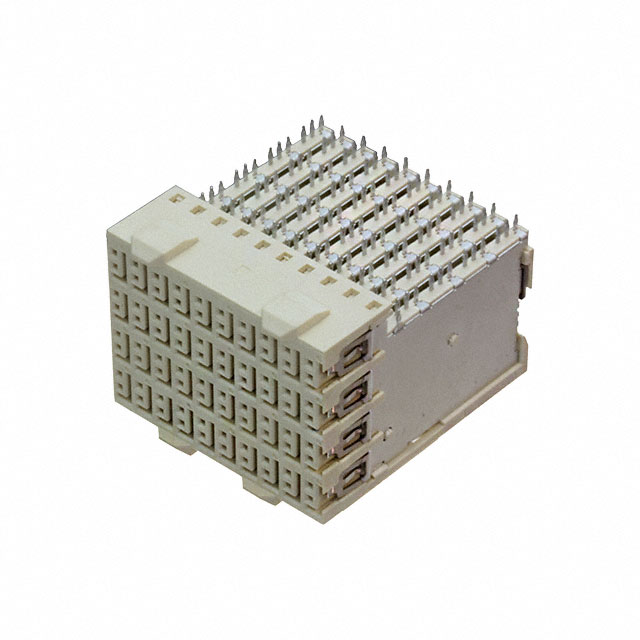

EDAC Inc. 500-080-225-F02	105 ░C	-65 ░C	250 VAC	Guide Pin Jackscrew	All	2.5 mm	0.098 in	Gold	Flash	Board Edge Right Angle Through Hole	ZD Plus	Receptacle Female Sockets	Press-Fit	80	8

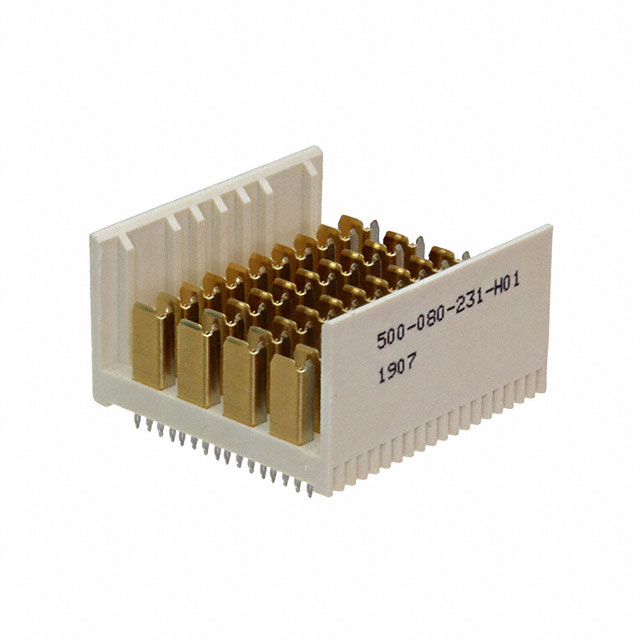

EDAC Inc. 500-080-231-H01	105 ░C	-65 ░C	250 VAC	Jackscrew Socket Mating Guide	All	2.5 mm	0.098 in	Gold	Flash	Through Hole	ZD Plus	Header Male Pins and Blades	Press-Fit	80	8

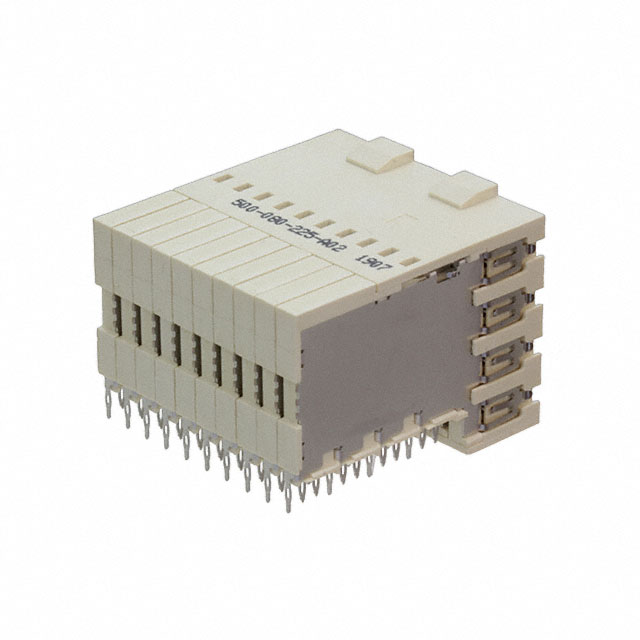

EDAC Inc. 500-080-225-A02	105 ░C	-65 ░C	250 VAC	Guide Pin Jackscrew	All	2.5 mm	0.098 in	Gold	Flash	Board Edge Right Angle Through Hole	ZD	Receptacle Female Sockets	Press-Fit	80	8
