SK36 Series
Manufacturer: Surge
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K
DIODE SCHOTTKY 60V 3A DO214AB
| Part | Current - Average Rectified (Io) | Voltage - DC Reverse (Vr) (Max) | Package / Case | Mounting Type | Technology | Package Name | Current - Reverse Leakage | Capacitance | Voltage - Forward (Vf) (Max) | Operating Temperature - Junction (Max) | Operating Temperature - Junction (Min) | Speed - Fast Recovery (Maximum) | Speed - Fast Recovery (Minimum) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

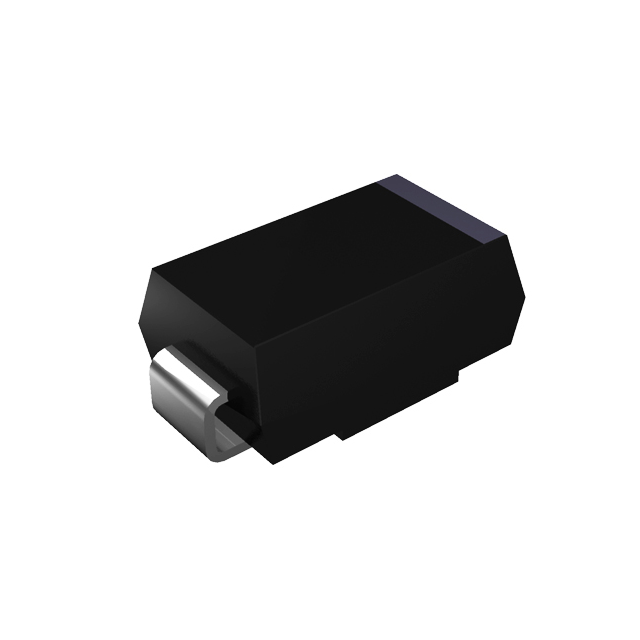

 Surge | 3 A | 60 V | DO-214AB SMC | Surface Mount | Schottky | DO-214AB (SMC) | 150 µA | 250 pF | 700 mV | 150 °C | -55 °C | 500 ns | 200 mA |

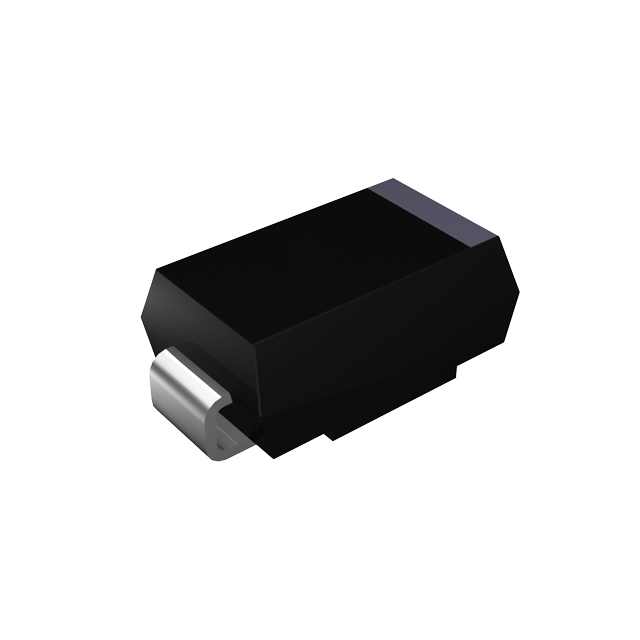

 Surge | 3 A | 60 V | DO-214AC SMA | Surface Mount | Schottky | DO-214AC (SMA) | 150 µA | 250 pF | 700 mV | 150 °C | -55 °C | 500 ns | 200 mA |
 Surge | 3 A | 60 V | DO-214AA SMB | Surface Mount | Schottky | DO-214AA (SMB) | 200 µA | 250 pF | 700 mV | 150 °C | -55 °C | 500 ns | 200 mA |
