R11420 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

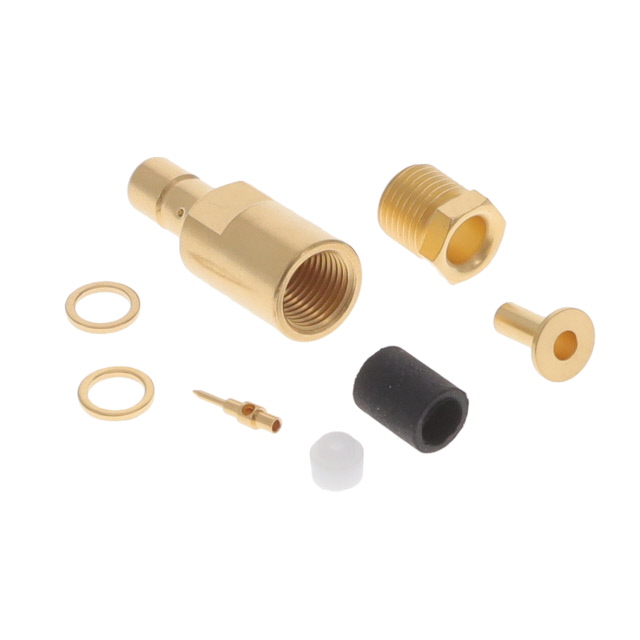

SMB / STRAIGHT JACK CLAMP TYPE C
| Part | Voltage Rating | Operating Temperature [Min] | Operating Temperature [Max] | Dielectric Material | Center Contact Plating | Body Material | Body Finish | Mating Cycles | Number of Ports | Connector Type | Connector Style | Center Contact Material | Mounting Type | Fastening Type | Impedance | Cable Group | Shield Termination | Frequency - Max [Max] | Housing Color | Contact Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | 335 V | -65 ░C | 165 °C | Polytetrafluoroethylene (PTFE) | Gold | Brass | Gold | 500 | 1 | Jack Male Pin | SMB | Brass | Free Hanging (In-Line) | Snap-On | 50 Ohms | 187 188 316 RG-179 | Clamp | 4 GHz | Gold | Solder |
