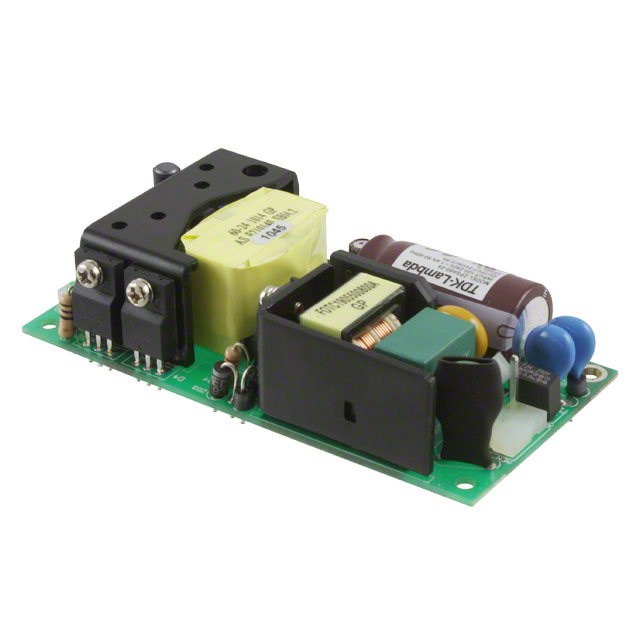

ZPSA60 Series
Manufacturer: TDK Corporation
Beta
⌘K
AC/DC OPEN FRAME POWER SUPPLY (PSU), 1 OUTPUT, 60 W, 90V AC TO 264V AC, FIXED, 3.3 V
| Part | Minimum Load Required | Number of Outputs | Approval Agency | Current - Output 1 | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Input [Max] | Voltage - Input [Min] | Voltage - Output 1 | Power (Watts) | Mounting Type | Applications | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [x] | Type | Voltage - Isolation | Efficiency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TDK Corporation | 1 | CE | 8 A | 70 °C | 0 °C | 264 VAC | 90 VAC | 3.3 V | 60 W | Chassis Mount | ITE (Commercial) | 2 in | 50.8 mm | 27.1 mm | 1.07 in | 101.6 mm | 4 " | Open Frame | 3000 V | 74 % | |
 TDK Corporation | 1 | CE | 2.14 A | 70 °C | 0 °C | 264 VAC | 90 VAC | 28 V | 60 W | Chassis Mount | ITE (Commercial) | 2 in | 50.8 mm | 27.1 mm | 1.07 in | 101.6 mm | 4 " | Open Frame | 3000 V | 86 % |
