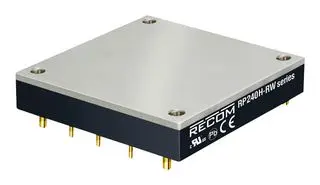

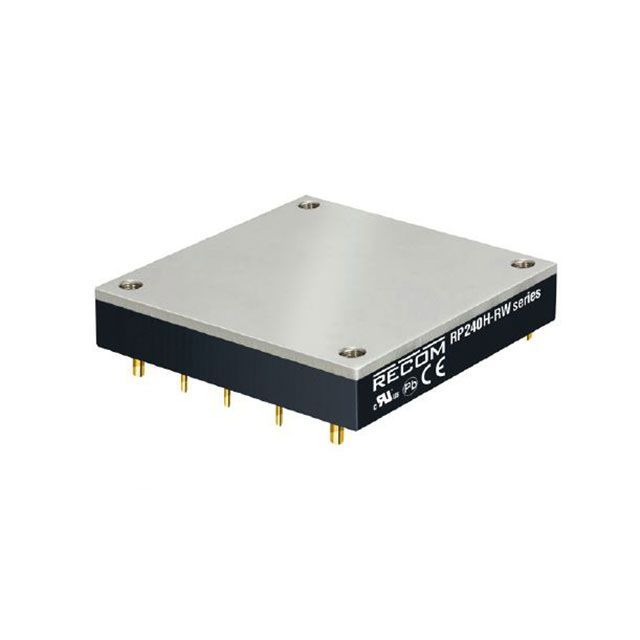

RP240H-RW Series

Isolated DC/DC Converters - Through Hole 216W 16.5-75Vin 12Vout 18A

Manufacturer: Recom Power

Catalog

Isolated DC/DC Converters - Through Hole 216W 16.5-75Vin 12Vout 18A

Catalog

Isolated DC/DC Converters - Through Hole 216W 16.5-75Vin 12Vout 18A

Part	Voltage - Isolation	Voltage - Input (Min) [Min]	Features	Number of Outputs	Voltage - Output 1	Power (Watts)	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Supplier Device Package	Current - Output (Max) [Max]	Applications	Efficiency	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Voltage - Input (Max) [Max]	Mounting Type	Type	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Current - Output (Max)
Recom Power RP240H-4815SRW/P	2250 VDC	16.5 V	OCP OTP OVP Remote On/Off SCP UVLO	1	15 V	210 W	-40 °C	115 °C	Half Brick	Half Brick	14 A	ITE (Commercial) Railway	91 %	57.9 mm	2.28 "	2.4 "	12.1 mm	0.48 "	61 mm	75 V	Through Hole	Isolated Module
Recom Power RP240H-2412SRW/P	2250 VDC	9 V	OCP OTP OVP Remote On/Off SCP UVLO	1	12 V	180 W	-40 °C	115 °C	Half Brick	Half Brick	15 A	ITE (Commercial) Railway	89 %	57.9 mm	2.28 "	2.4 "	12.1 mm	0.48 "	61 mm	36 V	Through Hole	Isolated Module
Recom Power RP240H-11005SRW/N	3000 V	43 V	OCP OTP OVP Remote On/Off SCP UVLO	1	5 V	220 W	-40 °C	115 °C	Half Brick	Half Brick	44 A	ITE (Commercial) Railway	89 %	57.9 mm			12.7 mm		61 mm	160 V	Through Hole	Isolated Module	2.28 in	2.4 in	0.5 in
Recom Power RP240H-11048SRW/P-HC	3000 V	43 V	OCP OTP OVP Remote On/Off SCP UVLO	1	48 V	240 Watts	-40 °C	115 °C	Half Brick	Half Brick		ITE (Commercial) Railway	89 %	57.9 mm			24.1 mm		61 mm	160 V	Through Hole	Isolated Module	2.28 in	2.4 in	24.13 mm	5 A
Recom Power RP240H-2405SRW/P	2250 VDC	9 V	OCP OTP OVP Remote On/Off SCP UVLO	1	5 V	180 W	-40 °C	115 °C	Half Brick	Half Brick	36 A	ITE (Commercial) Railway	90 %	57.9 mm	2.28 "	2.4 "	12.1 mm	0.48 "	61 mm	36 V	Through Hole	Isolated Module

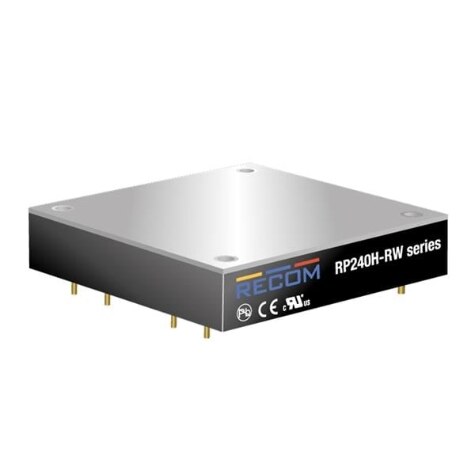

Recom Power RP240H-4815SRW/P-HC	2250 VDC	16.5 V	OCP OTP OVP Remote On/Off SCP UVLO	1	15 V	210 W	-40 °C	115 °C	Half Brick	Half Brick	14 A	ITE (Commercial) Railway	91 %	57.9 mm			24.1 mm		61 mm	75 V	Through Hole	Isolated Module	2.28 in	2.4 in	24.13 mm
Recom Power RP240H-2424SRW/N	2250 VDC	9 V	OCP OTP OVP Remote On/Off SCP UVLO	1	24 V	180 W	-40 °C	115 °C	Half Brick	Half Brick	7.5 A	ITE (Commercial) Railway	90 %	57.9 mm	2.28 "	2.4 "	12.1 mm	0.48 "	61 mm	36 V	Through Hole	Isolated Module
Recom Power RP240H-2448SRW/N-HC	2250 VDC	9 V	OCP OTP OVP Remote On/Off SCP UVLO	1	48 V	178 W	-40 °C	115 °C	Half Brick	Half Brick	3.7 A	ITE (Commercial) Railway	89 %	57.9 mm			24.1 mm		61 mm	36 V	Through Hole	Isolated Module	2.28 in	2.4 in	24.13 mm
Recom Power RP240H-11015SRW/P-HC	3000 V	43 V	OCP OTP OVP Remote On/Off SCP UVLO	1	15 V	240 Watts	-40 °C	115 °C	Half Brick	Half Brick	16 A	ITE (Commercial) Railway	90 %	57.9 mm			24.1 mm		61 mm	160 V	Through Hole	Isolated Module	2.28 in	2.4 in	24.13 mm
Recom Power RP240H-11024SRW/P	3000 V	43 V	OCP OTP OVP Remote On/Off SCP UVLO	1	24 V	240 Watts	-40 °C	115 °C	Half Brick	Half Brick	10 A	ITE (Commercial) Railway	89 %	57.9 mm			12.7 mm		61 mm	160 V	Through Hole	Isolated Module	2.28 in	2.4 in	0.5 in
