957244 Series

Catalog

CONN HEADER SMD 44POS 2MM

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Shrouding	Number of Positions	Termination	Row Spacing - Mating	Row Spacing - Mating	Insulation Material	Contact Finish Thickness - Mating	Mounting Type	Fastening Type	Material Flammability Rating	Pitch - Mating	Pitch - Mating	Number of Positions Loaded	Contact Type	Operating Temperature [Min]	Operating Temperature [Max]	Number of Rows [custom]	Contact Finish - Mating	Contact Material	Connector Type	Contact Shape	Features	Insulation Color	Insulation Height	Insulation Height	Contact Finish - Post	Contact Length - Post	Contact Length - Post
3M Electronic Specialty 957244-2000-AR-TP	39.4 çin	1 çm	Shrouded - 4 Wall	44	Solder	2 mm	0.079 in	Thermoplastic	Flash	Surface Mount	Push-Pull	UL94 V-0	0.079 "	2 mm	All	Male Pin	-40 C	105 ░C	2	Gold	Copper Alloy	Header	Square	Keying Slot	Black	5.6 mm	0.22 in	Tin

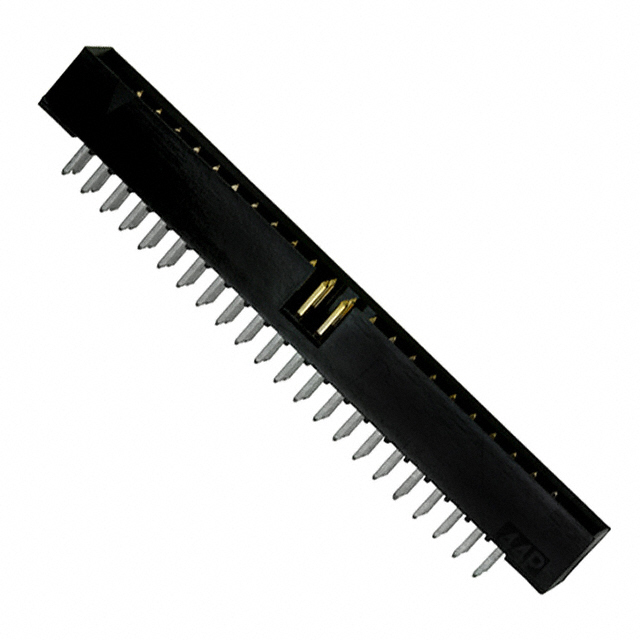

3M Electronic Specialty 957244-6002-AR	39.4 çin	1 çm	Shrouded - 4 Wall	44	Solder	2 mm	0.079 in	Thermoplastic	Flash	Through Hole	Push-Pull	UL94 V-0	0.079 "	2 mm	All	Male Pin	-40 C	105 ░C	2	Gold	Copper Alloy	Header	Square	Keying Slot	Black	5.6 mm	0.22 in	Tin	0.118 in	3 mm
