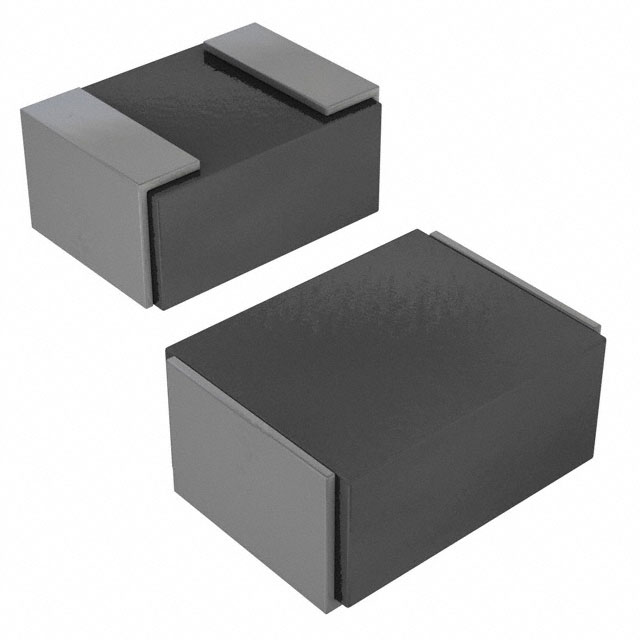

SRP2512 Series

Catalog

INDUCTOR POWER SHIELDED WIREWOUND 2.2UH 20% 1MHZ POWDERED IRON 2.1A 0.104OHM DCR 1008 T/R

Part	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Inductance	Material - Core	Current - Saturation (Isat)	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Package / Case	Package / Case	DC Resistance (DCR) [Max]	Q @ Freq	Inductance Frequency - Test	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Type	Supplier Device Package	Shielding	Tolerance	Current Rating (Amps)
Bourns Inc. SRP2512-2R2M	1.2 mm	0.047 "	2.2 µH	Iron Powder	3 A	2.5 mm	0.079 in	0.098 in	2 mm	2520 Metric	1008	104 mOhm	39	1 MHz	125 °C	-40 C	Surface Mount	Drum Core Wirewound	1008	Shielded	20 %	2.1 A
Bourns Inc. SRP2512-4R7M	1.2 mm	0.047 "	4.7 ÁH	Iron Powder		2.5 mm	0.079 in	0.098 in	2 mm	2520 Metric	1008			1 MHz	125 °C	-40 C	Surface Mount	Drum Core Wirewound	1008	Unshielded	20 %
Bourns Inc. SRP2512-1R0M	1.2 mm	0.047 "	1 µH	Iron Powder	3.4 A	2.5 mm	0.079 in	0.098 in	2 mm	2520 Metric	1008	49 mOhm	39	1 MHz	125 °C	-40 C	Surface Mount	Drum Core Wirewound	1008	Shielded	20 %	3.4 A
