OSTTJ07 Series

Catalog

TERM BLOCK PLUG 7POS STR 5.08MM

Part	Contact Material	Wire Strip Length [Min]	Wire Strip Length [Max]	Torque - Screw	Torque - Screw	Housing Material	Wire Gauge or Range - mm˛ [Min]	Wire Gauge or Range - mm˛ [Max]	Material Flammability Rating	Number of Positions	Termination Style	Color	Number of Levels	Positions Per Level [custom]	Pitch	Pitch	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Voltage - UL	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Type	Wire Gauge or Range - mm˛	Wire Gauge or Range - mm²
On Shore Technology Inc. OSTTJ075152	Brass	7 mm	8 mm	0.56 Nm	5 Lb-In	Brass	0.34 mm˛	2.5 mm˛	UL94 V-0	7	Screw	Green	1	7	5.08 mm	0.2 in	12 AWG	24 AWG	300 V	0.34 mm²	2.5 mm²	Free Hanging (In-Line)	-30 ░C	105 ░C	Plug Female Sockets
On Shore Technology Inc. OSTTJ0711520	Brass	6 mm	7 mm	0.28 Nm	2.5 Lb-In	Brass			UL94 V-0	7	Screw		1	7	3.5 mm	0.138 "	16 AWG	26 AWG	300 V			Free Hanging (In-Line)	-30 ░C	105 ░C	Plug Female Sockets
On Shore Technology Inc. OSTTJ070152	Brass	7 mm	8 mm	0.56 Nm	5 Lb-In	Brass			UL94 V-0	7	Screw		1	7	7.62 mm	0.3 in	12 AWG	24 AWG	300 V			Free Hanging (In-Line)	-30 ░C	105 ░C	Plug Female Sockets
On Shore Technology Inc. OSTTJ0711530	Brass	6 mm	7 mm	0.28 Nm	2.5 Lb-In	Brass				7	Screw		1	7	3.5 mm	0.138 "	16 AWG	26 AWG	300 V			Free Hanging (In-Line)	-30 ░C	105 ░C	Plug Female Sockets
On Shore Technology Inc. OSTTJ070150	Brass	7 mm	8 mm	0.56 Nm	5 Lb-In	Brass			UL94 V-0	7	Screw		1	7	7.62 mm	0.3 in	12 AWG	24 AWG	300 V			Free Hanging (In-Line)	-30 ░C	105 ░C	Plug Female Sockets
On Shore Technology Inc. OSTTJ0731330M51	Brass	6 mm	7 mm	0.28 Nm	2.5 Lb-In	Brass			UL94 V-0	7	Screw		1	7	3.81 mm	0.15 in	16 AWG	26 AWG	300 V			Free Hanging (In-Line)			Plug Female Sockets	1.5 mm˛	1.5 mm²
On Shore Technology Inc. OSTTJ0731520	Brass	6 mm	7 mm	0.28 Nm	2.5 Lb-In	Brass			UL94 V-0	7	Screw	Green	1	7	3.81 mm	0.15 in	16 AWG	26 AWG	300 V			Free Hanging (In-Line)	-30 ░C	105 ░C	Plug Female Sockets	1.5 mm˛	1.5 mm²

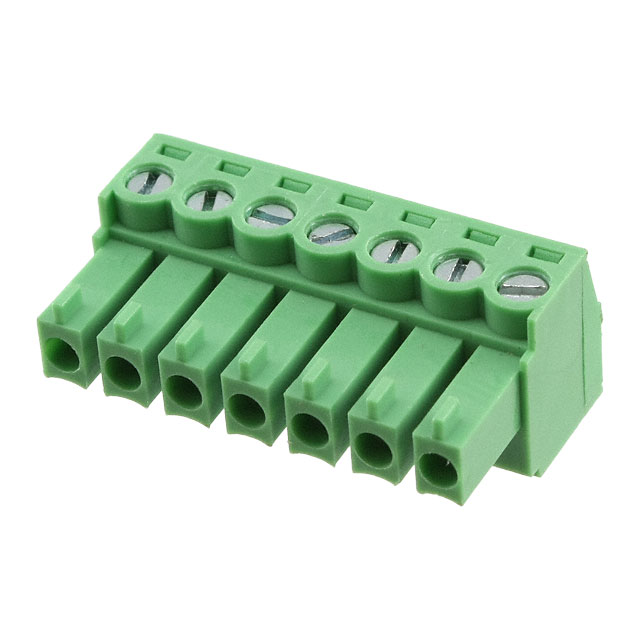

On Shore Technology Inc. OSTTJ0731530	Brass	6 mm	7 mm	0.28 Nm	2.5 Lb-In	Brass				7	Screw	Green	1	7	3.81 mm	0.15 in	16 AWG	26 AWG	300 V			Free Hanging (In-Line)	-40 C	115 °C	Plug Female Sockets	1.5 mm˛	1.5 mm²
