W4B81-8 Series
Manufacturer: SWITCHCRAFT/CONXALL
Beta
⌘K

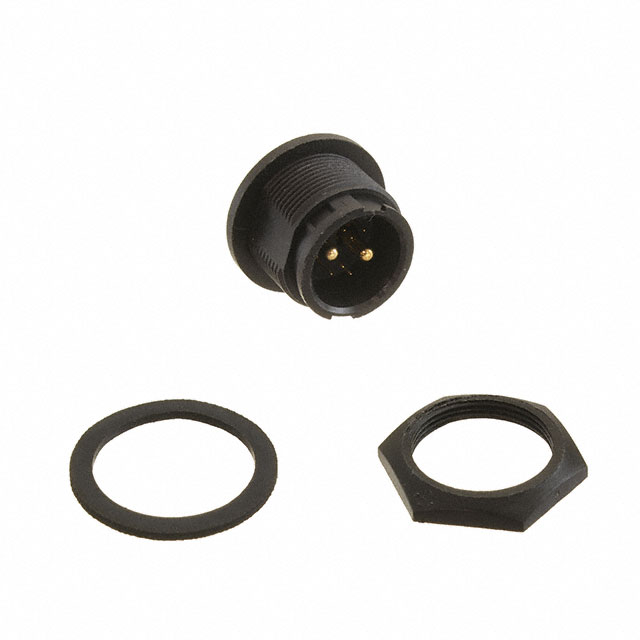

CIRCULAR CONNECTOR, MULTI-CON-X SERIES, PANEL MOUNT PLUG, 8 CONTACTS, PCB PIN, BAYONET
| Part | Primary Material | Applications | Mounting Type | Fastening Type | Insert Material | Voltage Rating | Material Flammability Rating | Shell Material | Contact Finish - Mating | Contact Material | Current Rating (Amps) | Color | Operating Temperature [Max] | Operating Temperature [Min] | Orientation | Termination | Shielding | Ingress Protection | Connector Type | Number of Positions [custom] | Number of Positions [custom] | Mounting Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SWITCHCRAFT/CONXALL | Plastic | Lighting Medical | Panel Mount Through Hole | Bayonet Lock | Polybutylene Terephthalate (PBT) | 300 VDC | UL94 HB | Polybutylene Terephthalate (PBT) | Gold | Copper Alloy | 23 A | Black | 85 °C | -40 C | Keyed | Solder | Unshielded | IP67 - Dust Tight Waterproof | Receptacle Male Pins | 2 | 6 | Bulkhead - Front Side Nut |
