UT06F Series

Manufacturer: Amphenol Aerospace Operations

Catalog

CONN PLG HSG FMALE 19POS INLINE

Part	Contact Shape	Material Flammability Rating	Contact Type	Type	Mounting Type	Shell Size - Insert (Maximum)	Shell Size - Insert (Minimum)	Ingress Protection IP Rating	Ingress Protection Description	Features	Operating Temperature (Min)	Operating Temperature (Max)	Number of Positions	Contact Size	Connector Type	Shell Finish	Housing Color	Shell Material	Shielding	Insert Material	Note	Orientation	Fastening Type	Shell Size - Insert Length	Shell Size - Insert Width	Position Types
Amphenol Aerospace Operations UT06FC1619SH	Circular	UL94 V-0	Crimp	For Female Sockets	Free Hanging (In-Line)	19	16 S	IP67 IP68 IP69K	Dust Tight Water Resistant Waterproof	Backshell Coupling Nut	-40 °C	105 °C	19	16 S	Plug Housing	Nickel	Silver	Halogen Free Zinc Alloy	Shielded	Nylon 6/6 PA66 Polyamide	Contacts Not Included	N (Normal)	Bayonet Lock

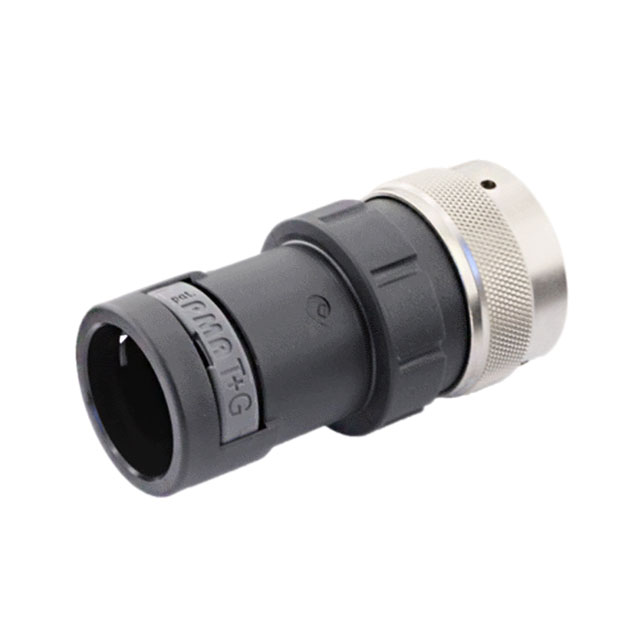

Amphenol Aerospace Operations UT06FC1823SH	Circular	UL94 V-0	Crimp	For Female Sockets	Free Hanging (In-Line)	23	18	IP67 IP68 IP69K	Dust Tight Water Resistant Waterproof	Backshell Coupling Nut	-40 °C	105 °C	23	16 S	Plug Housing	Nickel	Silver	Halogen Free Zinc Alloy	Shielded	Nylon 6/6 PA66 Polyamide	Contacts Not Included	N (Normal)	Bayonet Lock

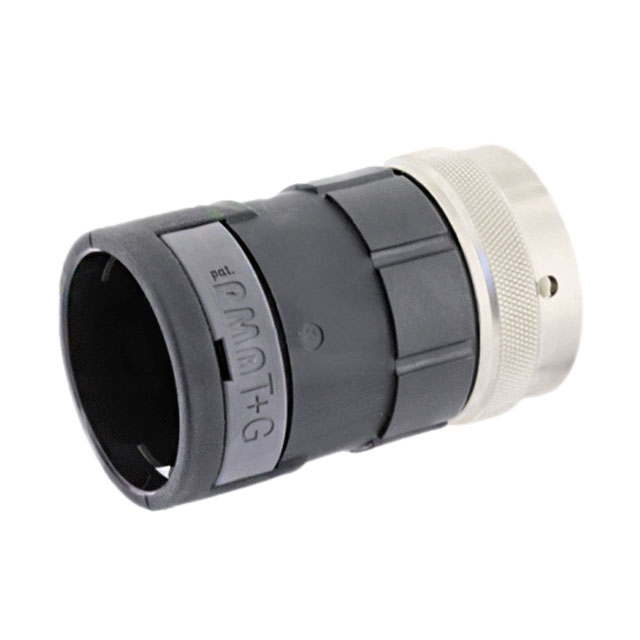

Amphenol Aerospace Operations UT06FC2448SH	Circular	UL94 V-0	Crimp	For Female Sockets	Free Hanging (In-Line)	48	24	IP67 IP68 IP69K	Dust Tight Water Resistant Waterproof	Backshell Coupling Nut	-40 °C	105 °C	48	16 S	Plug Housing	Nickel	Silver	Halogen Free Zinc Alloy	Shielded	Nylon 6/6 PA66 Polyamide	Contacts Not Included	N (Normal)	Bayonet Lock
Amphenol Aerospace Operations UT06FC2235SH	Circular	UL94 V-0	Crimp	For Female Sockets	Free Hanging (In-Line)	35	22	IP67 IP68 IP69K	Dust Tight Water Resistant Waterproof	Backshell Coupling Nut	-40 °C	105 °C	35	16 S	Plug Housing	Nickel	Silver	Halogen Free Zinc Alloy	Shielded	Nylon 6/6 PA66 Polyamide	Contacts Not Included	N (Normal)	Bayonet Lock

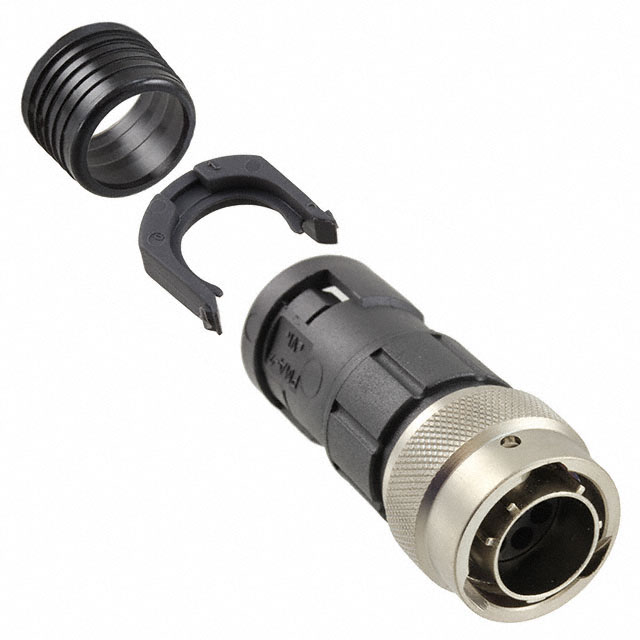

Amphenol Aerospace Operations UT06FC128PH	Circular	UL94 V-0	Crimp	For Male Pins	Free Hanging (In-Line)			IP67 IP68 IP69K	Dust Tight Water Resistant Waterproof	Backshell Coupling Nut	-40 °C	105 °C	8	16 S	Plug Housing	Nickel	Silver	Halogen Free Zinc Alloy	Shielded	Nylon 6/6 PA66 Polyamide	Contacts Not Included	N (Normal)	Bayonet Lock	12 mm	8 mm

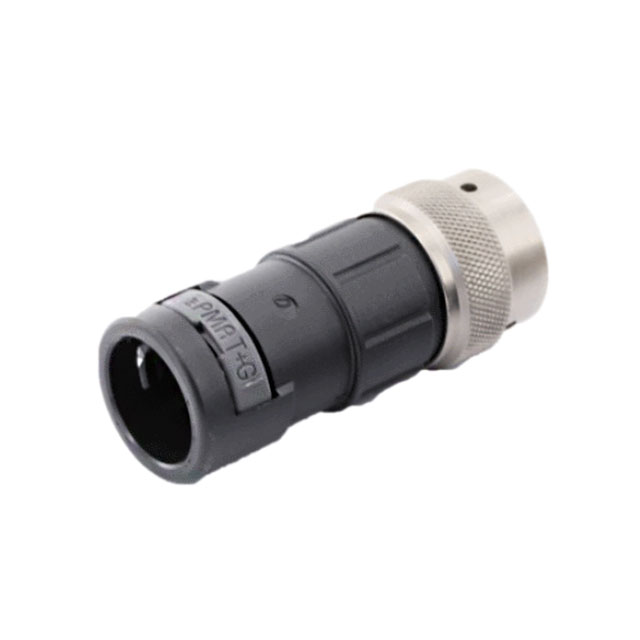

Amphenol Aerospace Operations UT06FC124PH	Circular	UL94 V-0	Crimp	For Male Pins	Free Hanging (In-Line)			IP67 IP68 IP69K	Dust Tight Water Resistant Waterproof	Backshell Coupling Nut	-40 °C	105 °C	4	16 S	Plug Housing	Nickel	Silver	Halogen Free Zinc Alloy	Shielded	Nylon 6/6 PA66 Polyamide	Contacts Not Included	N (Normal)	Bayonet Lock	12 mm	4 mm	PE

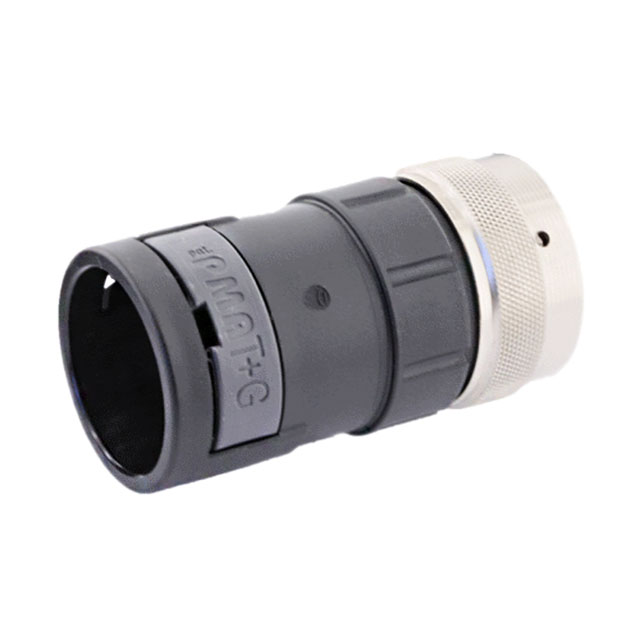

Amphenol Aerospace Operations UT06FC2028SH	Circular	UL94 V-0	Crimp	For Female Sockets	Free Hanging (In-Line)	28	20	IP67 IP68 IP69K	Dust Tight Water Resistant Waterproof	Backshell Coupling Nut	-40 °C	105 °C	28	16 S	Plug Housing	Nickel	Silver	Halogen Free Zinc Alloy	Shielded	Nylon 6/6 PA66 Polyamide	Contacts Not Included	N (Normal)	Bayonet Lock

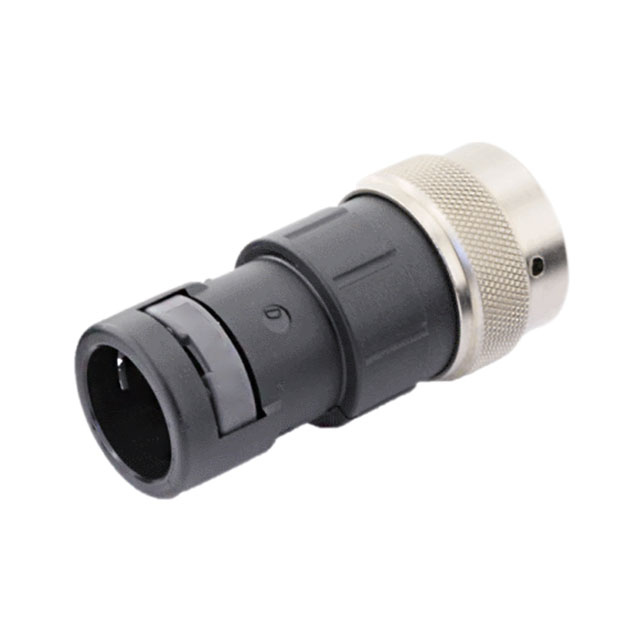

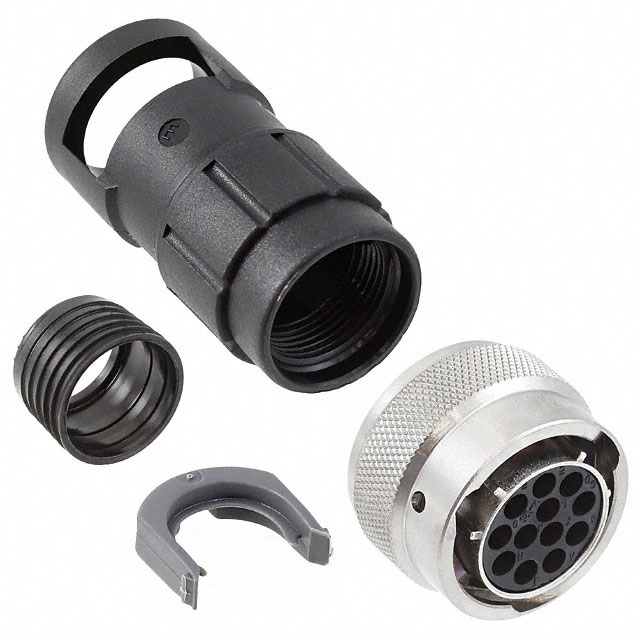

Amphenol Aerospace Operations UT06FC1412SH	Circular	UL94 V-0	Crimp	For Female Sockets	Free Hanging (In-Line)			IP67 IP68 IP69K	Dust Tight Water Resistant Waterproof	Backshell Coupling Nut	-40 °C	105 °C	12	16 S	Plug Housing	Nickel	Silver	Halogen Free Zinc Alloy	Shielded	Nylon 6/6 PA66 Polyamide	Contacts Not Included	N (Normal)	Bayonet Lock	14 mm	12 mm
Amphenol Aerospace Operations UT06FC128SH	Circular	UL94 V-0	Crimp	For Female Sockets	Free Hanging (In-Line)			IP67 IP68 IP69K	Dust Tight Water Resistant Waterproof	Backshell Coupling Nut	-40 °C	105 °C	8	16 S	Plug Housing	Nickel	Silver	Halogen Free Zinc Alloy	Shielded	Nylon 6/6 PA66 Polyamide	Contacts Not Included	N (Normal)	Bayonet Lock	12 mm	8 mm
Amphenol Aerospace Operations UT06FC147SH	Circular	UL94 V-0	Crimp	For Female Sockets	Free Hanging (In-Line)			IP67 IP68 IP69K	Dust Tight Water Resistant Waterproof	Backshell Coupling Nut	-40 °C	105 °C	7	16 S	Plug Housing	Nickel	Silver	Halogen Free Zinc Alloy	Shielded	Nylon 6/6 PA66 Polyamide	Contacts Not Included	N (Normal)	Bayonet Lock	14 mm	7 mm	PE
