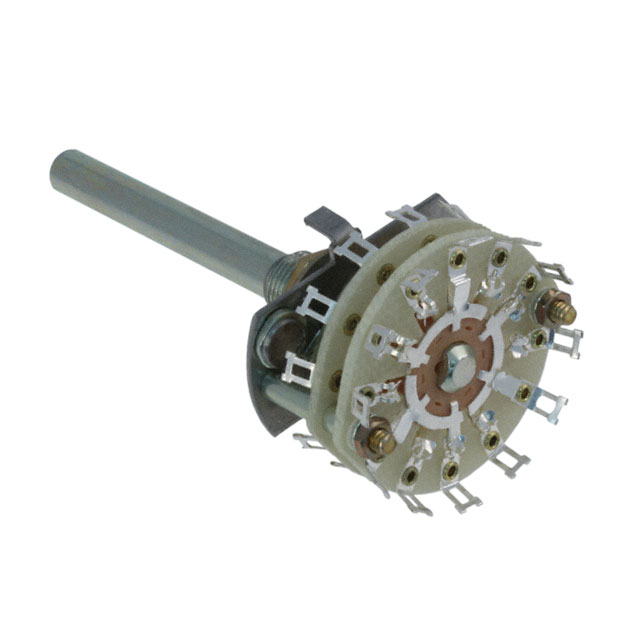

E3G0603 Series
Manufacturer: Electroswitch
Beta
⌘K
ROTARY SWITCHES 3 POS/3 P/2 SECT
| Part | Actuator Length | Voltage Rating - AC | Actuator Type | Termination Style | Current Rating | Voltage Rating - DC | Depth Behind Panel | Mounting Type | Number of Positions | Contact Finish | Circuit per Deck | Features | Number of Decks | Contact Material | Index Stops | Number of Poles per Deck | Angle of Throw | Contact Timing | Panel Cutout Diameter | Panel Cutout Shape |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Electroswitch | 47.63 mm | 115 V | Round (6.35mm Dia) | Solder Lug | 1.5 A 500 mA | 28 V | 11.96 mm | Panel Mount | 3 | Silver | 3P3T | Spring Return | 2 | Brass | Fixed | 3 | 30 ° | Non-Shorting (BBM) | 9.78 mm | Circular |
 Electroswitch | 47.63 mm | 115 V | Round (6.35mm Dia) | Solder Lug | 1.5 A 500 mA | 28 V | 11.96 mm | Panel Mount | 3 | Silver | 3P3T | Spring Return | 2 | Brass | Fixed | 3 | 30 ° | Shorting (MBB) | 9.78 mm | Circular |
Electroswitch | 47.63 mm | 115 V | Round (6.35mm Dia) | Solder Lug | 1.5 A 500 mA | 28 V | 11.96 mm | Panel Mount | 3 | Silver | 3P3T | Spring Return | 2 | Brass | Fixed | 3 | 30 ° | Non-Shorting (BBM) | 9.78 mm | Circular |
