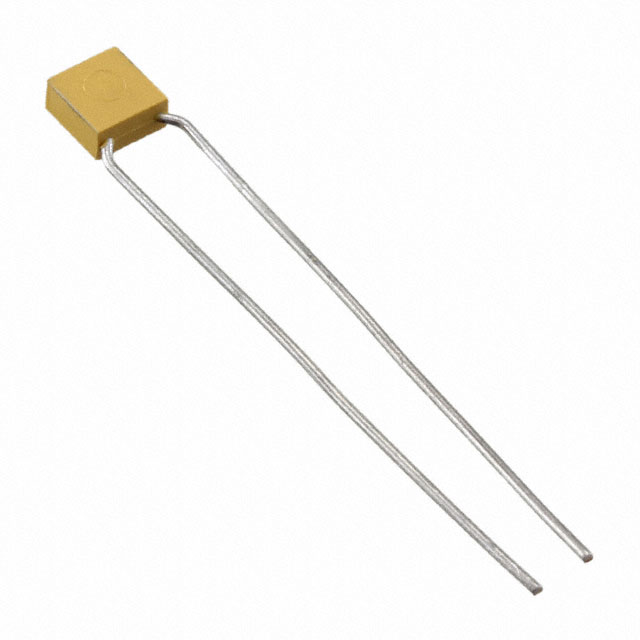

MR Series

Catalog

MULTILAYER CERAMIC CAPACITORS MLCC - LEADED 100 VDC .022UF X7R 1 0 % 5.08 MM

Part	Lead Spacing	Lead Spacing	Temperature Coefficient	Tolerance	Mounting Type	Voltage - Rated	Applications	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Lead Style	Capacitance	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Tolerance [Max]	Tolerance [Min]
KYOCERA AVX MR061C223KAA
KYOCERA AVX MR052C391KAA	0.2 in	5.08 mm	X7R	10 %	Through Hole	200 VDC	General Purpose	Radial	-55 C	125 °C	0.19 "	0.09 "	4.83 mm	2.28 mm	Formed Leads	390 pF	0.235 "	5.97 mm
KYOCERA AVX MR065E105ZAA	0.2 in	5.08 mm	Z5U		Through Hole	50 VDC	General Purpose	Radial	10 °C	85 °C			0.29 " 7.36 mm	0.09 in 2.28 mm	Straight	1 µF	0.29 in	7.36 mm	80 %	-20 %
KYOCERA AVX MR055C222KAATR2	0.2 in	5.08 mm	X7R	10 %	Through Hole	50 VDC	General Purpose	Radial	-55 C	125 °C	0.19 "	0.09 "	4.83 mm	2.28 mm	Formed Leads	2200 pF	0.235 "	5.97 mm
KYOCERA AVX MR051A122FAATR1	0.2 in	5.08 mm	C0G NP0	1 %	Through Hole	100 V	General Purpose	Radial	-55 C	125 °C	0.19 "	0.09 "	4.83 mm	2.28 mm	Formed Leads	1200 pF	0.235 "	5.97 mm
KYOCERA AVX MR051A222GTA
KYOCERA AVX MR052A100JAA	0.2 in	5.08 mm	C0G NP0	5 %	Through Hole	200 VDC	General Purpose	Radial	-55 C	125 °C	0.19 "	0.09 "	4.83 mm	2.28 mm	Formed Leads	10 pF	0.235 "	5.97 mm
KYOCERA AVX MR051A820JAATR1	0.2 in	5.08 mm	C0G NP0	5 %	Through Hole	100 V	General Purpose	Radial	-55 C	125 °C	0.19 "	0.09 "	4.83 mm	2.28 mm	Formed Leads	82 pF	0.235 "	5.97 mm
KYOCERA AVX MR041C102KAATR1	0.1 in	2.54 mm	X7R	10 %	Through Hole	100 V	General Purpose	Radial	-55 C	125 °C	0.19 "	0.09 "	4.83 mm	2.28 mm	Straight	0.001 µF	0.2 in	5.08 mm
KYOCERA AVX MR065C105KAA	0.2 in	5.08 mm	X7R	10 %	Through Hole	50 VDC	General Purpose	Radial	-55 C	125 °C			0.29 " 7.36 mm	0.09 in 2.28 mm	Straight	1 µF	0.29 in	7.36 mm
