SW-R-K Series
Manufacturer: Adam Tech
Beta
⌘K

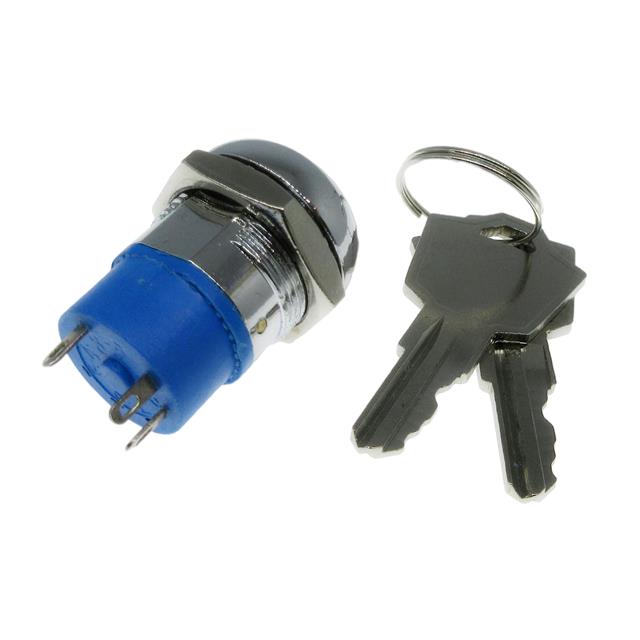

SWITCH KEYLOCK 2POS SPDT 4A 125V
| Part | Depth Behind Flange | Mechanical Life | Panel Cutout Dimensions [diameter] | Termination Style | Voltage Rating - AC | Angle of Throw | Current Rating (Amps) | Voltage Rating - DC | Contact Timing | Number of Positions | Operating Temperature [Max] | Operating Temperature [Min] | Key Removable Positions | Switch Function | Circuit | Actuator Type | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Adam Tech | 27.5 mm | 10000 Steps | 19 mm | Solder Lug | 125 V | 45 ° | 4 A | 28 V | Not Specified | 2 | 85 °C | -20 ░C | All | On-On | SPDT | Flat Key | Panel Mount |
