000975 Series
Manufacturer: Molex
Beta
⌘K

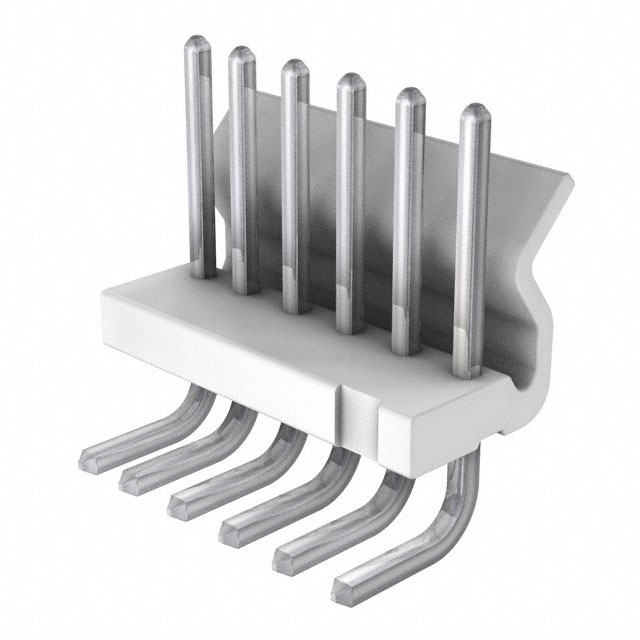

CONN HEADER R/A 6POS 3.96MM
| Part | Pitch - Mating | Pitch - Mating | Contact Shape | Applications | Contact Finish - Post | Style | Number of Rows | Fastening Type | Contact Length - Post | Contact Length - Post | Termination | Number of Positions Loaded | Insulation Height | Insulation Height | Shrouding | Number of Positions | Insulation Material | Contact Type | Contact Material | Mounting Type | Connector Type | Contact Length - Mating | Contact Length - Mating [x] | Material Flammability Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Molex | 3.96 mm | 0.156 in | Square | Automotive General Purpose Industrial Medical Telecommunications | Tin | Board to Board Cable | 1 | Friction Lock | 0.142 in | 3.6 mm | Solder | All | 10.2 mm | 0.402 in | Shrouded - 1 Wall | 6 | Nylon 6/6 Polyamide (PA66) | Male Pin | Brass | Right Angle Through Hole | Header | 13.59 mm | 0.535 in | UL94 V-2 |
