HFW4S Series
Manufacturer: Amphenol ICC (FCI)
Beta
⌘K

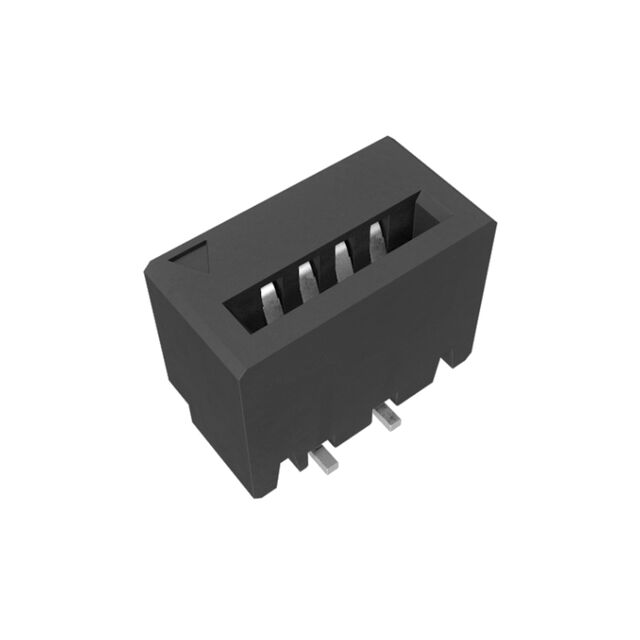

CONN FFC FPC VERT 4POS 1MM SMD
| Part | Mating Cycles | Housing Color | Number of Positions | Housing Material | Cable End Type | Contact Finish | Flat Flex Type | Voltage Rating | Material Flammability Rating | FFC, FCB Thickness [custom] | FFC, FCB Thickness [custom] | Height Above Board [z] | Height Above Board [z] | Termination | Connector/Contact Type | Pitch | Pitch | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol ICC (FCI) | 30 | Black | 4 | Glass Filled Halogen Free Liquid Crystal Polymer (LCP) | Straight Tapered | Tin | FFC FPC | 100 V | UL94 V-0 | 0.3 mm | 0.33 mm | 0.209 in | 5.3 mm | Solder | Contacts Vertical - 1 Sided | 1 mm | 0.039 in | Phosphor Bronze | -55 C | 85 °C | Surface Mount |
