K10WBM-P Series
Manufacturer: ODU
Beta
⌘K

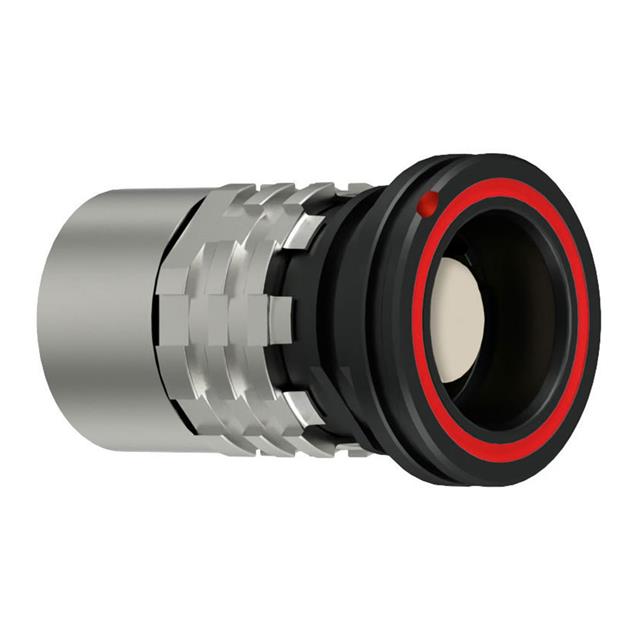

ODU AMC HD RCEPT, INLINE, STY 1,
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Shielding | Shell Material | Contact Material | Orientation | Color | Primary Material | Ingress Protection | Cable Opening | Cable Opening | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Applications | Features | Connector Type | Material Flammability Rating | Number of Positions [custom] | Number of Positions [custom] | Shell Size - Insert [custom] | Backshell Material, Plating | Insert Material | Shell Finish | Fastening Type | Mounting Type | Contact Finish - Mating | Current Rating (Amps) | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
-51 °C | 125 °C | Shielded | Brass | Copper Alloy | B | Black Silver | Metal | IP68 - Dust Tight Waterproof | 0.276 in | 7 mm | 50 µin | 1.27 µm | Industrial Medical Military | Backshell | Receptacle Female Sockets | UL94 V-0 | 2 | 10 | 0 | Brass Ruthenium over Electroless Nickel | Polyetheretherketone (PEEK) | Ruthenium over Electroless Nickel | Detent Lock Push-Pull | Free Hanging (In-Line) | Gold | 1 A 5 A | ||
-51 °C | 125 °C | Shielded | Brass | Copper Alloy | B | Black Silver | Metal | IP68 - Dust Tight Waterproof | 0.276 in | 7 mm | 50 µin | 1.27 µm | Industrial Medical Military | Backshell | Receptacle Female Sockets | UL94 V-0 | 0 | Brass Ruthenium over Electroless Nickel | Polyetheretherketone (PEEK) | Ruthenium over Electroless Nickel | Detent Lock Push-Pull | Free Hanging (In-Line) | Gold | 16 | ||||
-51 °C | 125 °C | Shielded | Brass | Copper Alloy | B | Black Silver | Metal | IP68 - Dust Tight Waterproof | 0.276 in | 7 mm | 50 µin | 1.27 µm | Industrial Medical Military | Backshell | Receptacle Female Sockets | UL94 V-0 | 0 | Brass Ruthenium over Electroless Nickel | Polyetheretherketone (PEEK) | Ruthenium over Electroless Nickel | Detent Lock Push-Pull | Free Hanging (In-Line) | Gold | 1 A 5 A | 9 |
