PAA130 Series

Enclosed Power Supply 48V 130 Watt

Manufacturer: TT Electronics/BI

Catalog

Enclosed Power Supply 48V 130 Watt

Catalog

Enclosed Power Supply 48V 130 Watt

Part	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Current - Output 1	Voltage - Input [Max]	Voltage - Input [Min]	Voltage - Isolation	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Features	Voltage - Output 1	Approval Agency	Applications	Standard Number	Power (Watts)	Power (Watts)	Number of Outputs	Efficiency	Type	Power (Watts) [Max]
TT Electronics/BI PAA130-18B	Chassis Mount	80 °C	-30 °C	2.708 A	264 VAC	90 VAC	4000 V	91.2 mm	3.59 in	34.5 mm	1.36 in	54.6 mm	2.15 in	PFC Universal Input	48 V	CB CE cURus	ITE (Commercial)	62368-1	125 W	130 W	1	Level VI	Open Frame
TT Electronics/BI PAA130-14A	Chassis Mount	80 °C	-30 °C	5.417 A	264 VAC	90 VAC	4000 V	91.2 mm	3.59 in	34.5 mm	1.36 in	54.6 mm	2.15 in	PFC Universal Input	24 V	CB CE cURus	ITE (Commercial)	62368-1	119 W		1	Level VI	Open Frame

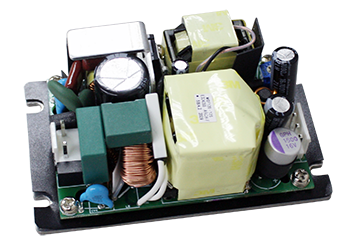

TT Electronics/BI PAA130-18A	Chassis Mount	80 °C	-30 °C	2.708 A	264 VAC	90 VAC	4000 V	91.2 mm	3.59 in	34.5 mm	1.36 in	54.6 mm	2.15 in	PFC Universal Input	48 V	CB CE cURus	ITE (Commercial)	62368-1	125 W	130 W	1	Level VI	Open Frame
TT Electronics/BI PAA130-12C	Chassis Mount	80 °C	-30 °C	10.833 A	264 VAC	90 VAC	4000 V	91.2 mm	3.59 in	34.5 mm	1.36 in	54.6 mm	2.15 in	PFC Universal Input	12 V	CB CE cURus	ITE (Commercial)	62368-1	119 W		1	Level VI	Enclosed
TT Electronics/BI PAA130-14C	Chassis Mount	80 °C	-30 °C	5.417 A	264 VAC	90 VAC	4000 V	91.2 mm	3.59 in	34.5 mm	1.36 in	54.6 mm	2.15 in	PFC Universal Input	24 V	CB CE cURus	ITE (Commercial)	62368-1	120 W		1	Level VI	Enclosed	130 W
TT Electronics/BI PAA130-12A	Chassis Mount	80 °C	-30 °C	10.833 A	264 VAC	90 VAC	4000 V	91.2 mm	3.59 in	34.5 mm	1.36 in	54.6 mm	2.15 in	PFC Universal Input	12 V	CB CE cURus	ITE (Commercial)	62368-1	119 W		1	Level VI	Open Frame
TT Electronics/BI PAA130-14B	Chassis Mount	80 °C	-30 °C	5.417 A	264 VAC	90 VAC	4000 V	91.2 mm	3.59 in	34.5 mm	1.36 in	54.6 mm	2.15 in	PFC Universal Input	24 V	CB CE cURus	ITE (Commercial)	62368-1	120 W		1	Level VI	Open Frame	130 W
TT Electronics/BI PAA130-12B	Chassis Mount	80 °C	-30 °C	10.833 A	264 VAC	90 VAC	4000 V	91.2 mm	3.59 in	34.5 mm	1.36 in	54.6 mm	2.15 in	PFC Universal Input	12 V	CB CE cURus	ITE (Commercial)	62368-1	119 W		1	Level VI	Open Frame
TT Electronics/BI PAA130-18C	Chassis Mount	80 °C	-30 °C	2.708 A	264 VAC	90 VAC	4000 V	91.2 mm	3.59 in	34.5 mm	1.36 in	54.6 mm	2.15 in	PFC Universal Input	48 V	CB CE cURus	ITE (Commercial)	62368-1	125 W	130 W	1	Level VI	Enclosed
