Schaffner FN3041 Series

Catalog

LOW LEAKAGE EMC FILTER WITH HIGH

Part	Voltage - Rated AC (Phase to Phase)	Configuration	Termination Style	Approval Agency	Applications	Voltage - Rated AC (Phase to Ground/Neutral)	Frequency - Operating	Filter Type	Current	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]

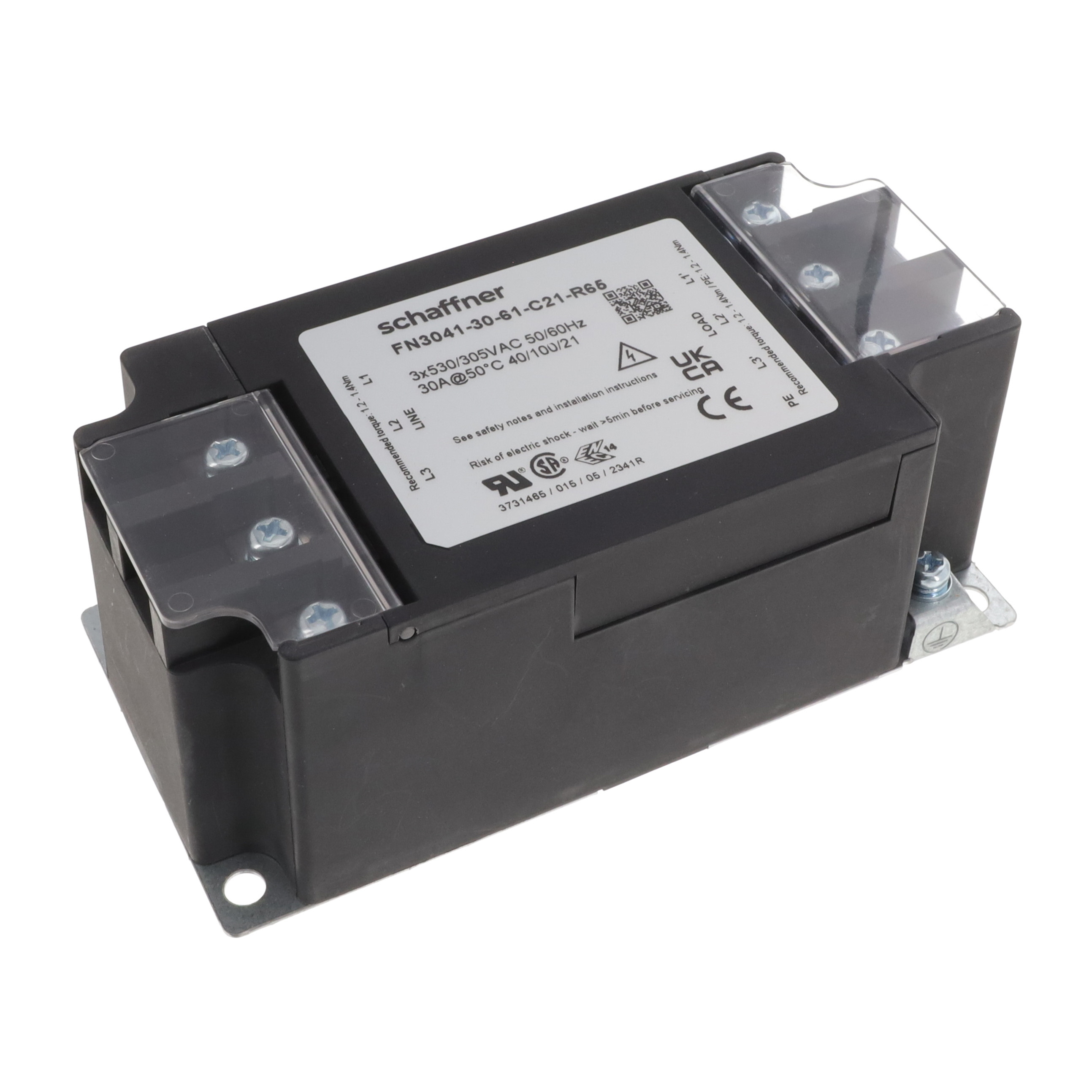

TE Connectivity AMP Connectors FN3041-30-61-C21-R65	530 V	Single Stage	Terminal Block	CE CSA ENEC UKCA UR	General Purpose	305 V	60 Hz	Three Phase (Delta)	30 A	Chassis Mount	-40 C	100 °C

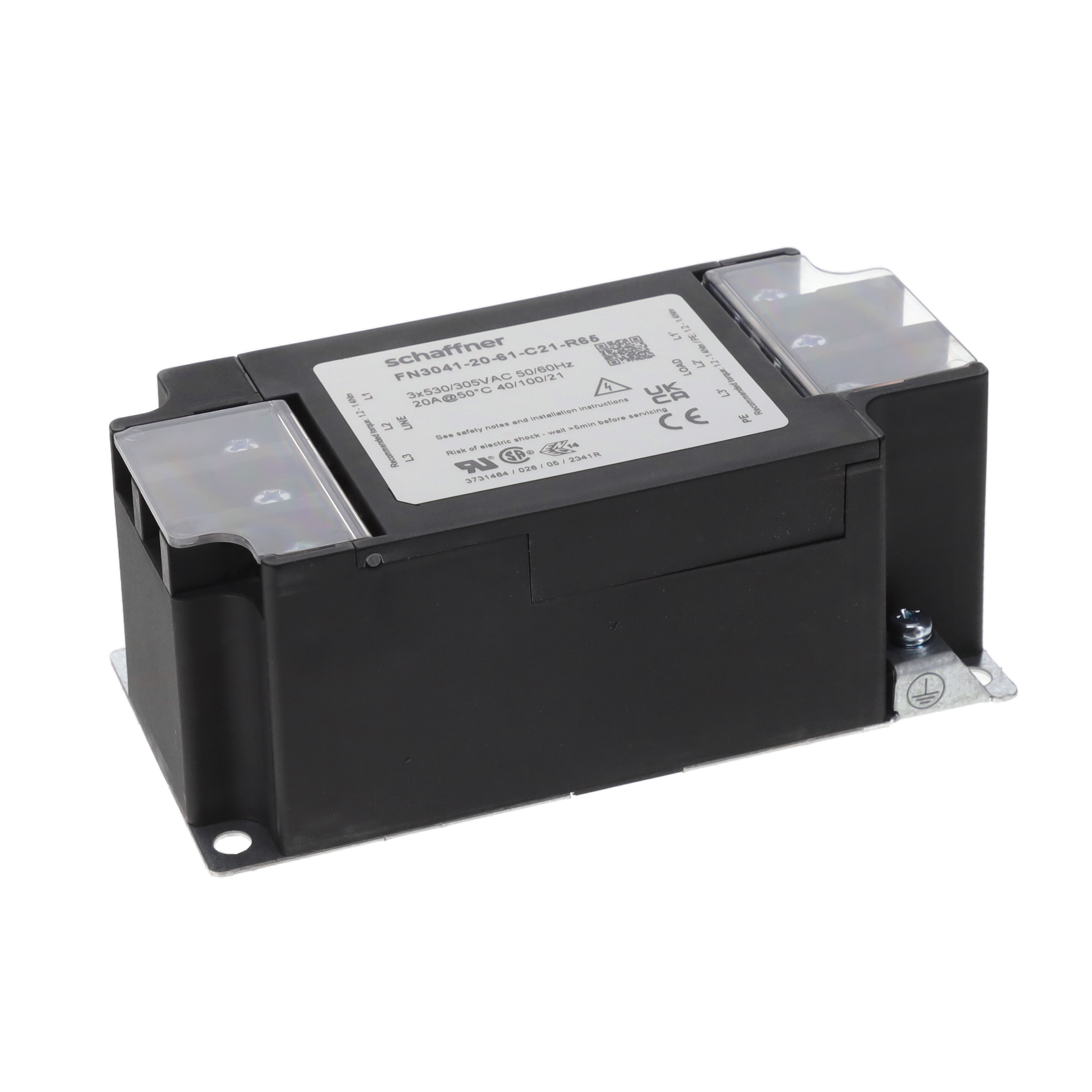

TE Connectivity AMP Connectors FN3041-20-61-C21-R65	530 V	Single Stage	Terminal Block	CE CSA ENEC UKCA UR	General Purpose	305 V	60 Hz	Three Phase (Delta)	20 A	Chassis Mount	-40 C	100 °C
TE Connectivity AMP Connectors FN3041-20-61-C21-R65	530 V	Single Stage	Terminal Block	CE CSA ENEC UKCA UR	General Purpose	305 V	60 Hz	Three Phase (Delta)	20 A	Chassis Mount	-40 C	100 °C
TE Connectivity AMP Connectors FN3041-10-61-C21-R65	530 V	Single Stage	Terminal Block	CE CSA ENEC UKCA UR	General Purpose	305 V	60 Hz	Three Phase (Delta)	10 A	Chassis Mount	-40 C	100 °C
TE Connectivity AMP Connectors FN3041-10-61-C21-R65	530 V	Single Stage	Terminal Block	CE CSA ENEC UKCA UR	General Purpose	305 V	60 Hz	Three Phase (Delta)	10 A	Chassis Mount	-40 C	100 °C
TE Connectivity AMP Connectors FN3041-30-61-C21-R65	530 V	Single Stage	Terminal Block	CE CSA ENEC UKCA UR	General Purpose	305 V	60 Hz	Three Phase (Delta)	30 A	Chassis Mount	-40 C	100 °C
