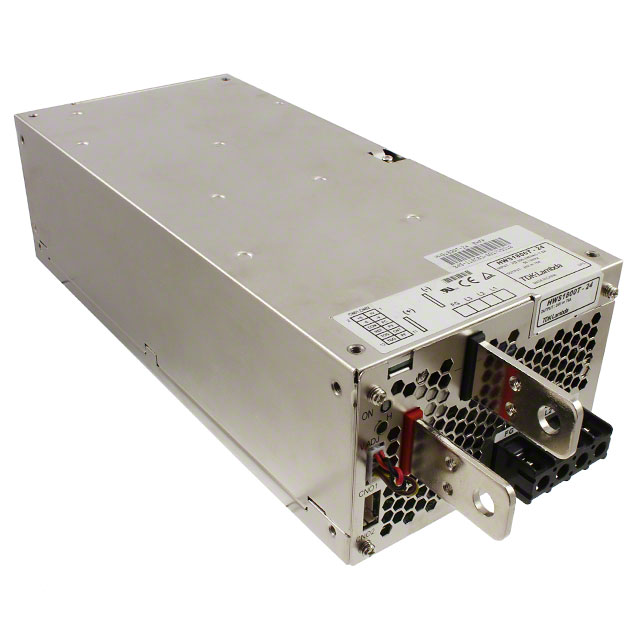

HWS1800 Series

Catalog

AC/DC CONVERTER 48V 1800W

Part	Voltage - Isolation	Applications	Power (Watts)	Voltage - Output 1	Voltage - Input [Max]	Voltage - Input [Min]	Number of Outputs	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Features	Approval Agency	Type	Efficiency	Current - Output 1	Voltage - Output 1 [custom]
TDK Corporation HWS1800T-48	3000 V	ITE (Commercial)	1.8 kW	48 V	265 VAC	85 VAC	1	70 °C	-10 °C	Chassis Mount	4.98 in	126.5 mm	11 in	82 mm	279.4 mm	3.23 in	Adjustable Output DC Input Capable Load Sharing Remote On/Off Remote Sense Universal Input	CE	Enclosed	90 %	38 A
TDK Corporation HWS1800T-36	3000 V	ITE (Commercial)	1.8 kW		265 VAC	85 VAC	1	70 °C	-10 °C	Chassis Mount	4.98 in	126.5 mm	11 in	82 mm	279.4 mm	3.23 in	Adjustable Output DC Input Capable Load Sharing Remote On/Off Remote Sense Universal Input	CE	Enclosed	88 %	50 A	36 V
TDK Corporation HWS1800T-60	3000 V	ITE (Commercial)	1.8 kW		265 VAC	85 VAC	1	70 °C	-10 °C	Chassis Mount	4.98 in	126.5 mm	11 in	82 mm	279.4 mm	3.23 in	Adjustable Output DC Input Capable Load Sharing Remote On/Off Remote Sense Universal Input	CE	Enclosed	90 %	30 A	60 V
TDK Corporation HWS1800T-5	3000 V	ITE (Commercial)	1.8 kW	5 V	265 VAC	85 VAC	1	70 °C	-10 °C	Chassis Mount	4.98 in	126.5 mm	11 in	82 mm	279.4 mm	3.23 in	Adjustable Output DC Input Capable Load Sharing Remote On/Off Remote Sense Universal Input	CE	Enclosed	81 %	300 A
