3128-4 Series

Catalog

CONN PC PIN CIRC .020DIA GOLD

Part	Pin Size - Above Flange [diameter]	Pin Size - Above Flange [diameter]	Contact Finish	Insulation	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Terminal Style	Termination	Length - Overall [x]	Length - Overall [x]	Length - Above Flange [x]	Length - Above Flange [x]	Mounting Type	Length - Below Flange [x]	Length - Below Flange [x]	Terminal Type	Flange Diameter [diameter]	Flange Diameter [diameter]	Pin Size - Below Flange [diameter]	Pin Size - Below Flange [diameter]	Contact Finish Thickness	Contact Finish Thickness	Contact Material
Mill-Max Manufacturing Corp. 3128-4-00-21-00-00-08-0	0.02 in	0.51 mm	Gold	Non-Insulated	0.61 mm	0.024 in	Single End	Solder	0.67 in	17.02 mm	13.97 mm	0.55 in	Through Hole	2.54 mm	0.1 "	PC Pin	0.046 "	1.17 mm	0.02 in	0.51 mm	20 µin	0.51 µm	Brass Alloy

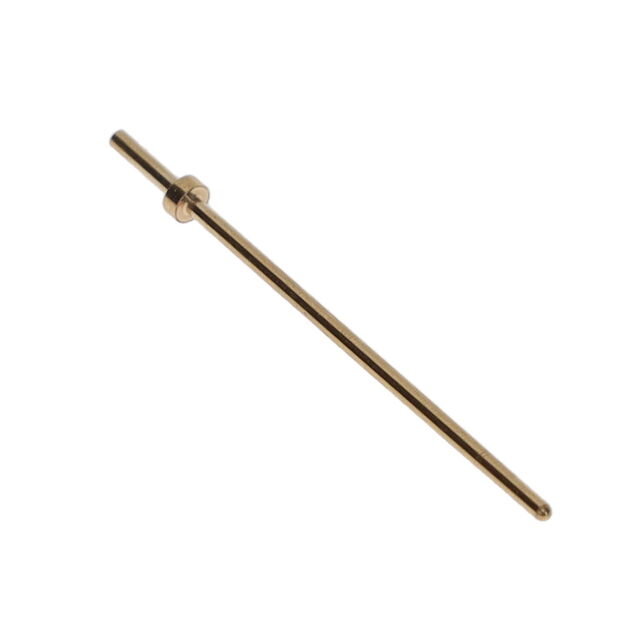

Mill-Max Manufacturing Corp. 3128-4-00-34-00-00-08-0	0.02 in	0.51 mm	Gold	Non-Insulated	0.61 mm	0.024 in	Single End	Solder	0.67 in	17.02 mm	13.97 mm	0.55 in	Through Hole	2.54 mm	0.1 "	PC Pin	0.046 "	1.17 mm	0.02 in	0.51 mm	50 µin	1.27 µm	Brass Alloy

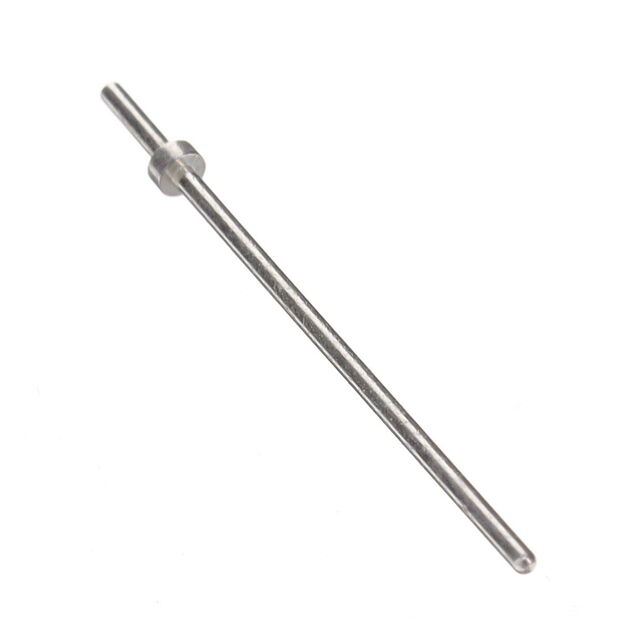

Mill-Max Manufacturing Corp. 3128-4-00-01-00-00-08-0	0.02 in	0.51 mm	Tin-Lead	Non-Insulated	0.61 mm	0.024 in	Single End	Solder	0.67 in	17.02 mm	13.97 mm	0.55 in	Through Hole	2.54 mm	0.1 "	PC Pin	0.046 "	1.17 mm	0.02 in	0.51 mm	200 Áin	5.08 Ám	Brass Alloy
