TLS850 Series

Manufacturer: INFINEON

Catalog

TLS850B0 LINEAR REGULATOR 3.23V TO 3.37V OUTPUT DEMONSTRATION BOARD AUTOMOTIVE AEC-Q100

Part	Board Type	Supplied Contents	Contents	Utilized IC / Part	Regulator Type	Channels per IC	Current - Output	Voltage - Output	Voltage - Input [Min]	Voltage - Input [Max]	Grade	PSRR	Operating Temperature [Min]	Operating Temperature [Max]	Current - Supply (Max) [Max]	Number of Regulators	Control Features	Qualification	Mounting Type	Output Configuration	Supplier Device Package	Current - Quiescent (Iq)	Voltage - Output (Min/Fixed)	Protection Features	Voltage Dropout (Max) [Max]	Package / Case	Voltage - Input (Max) [Max]	Voltage Dropout (Max)

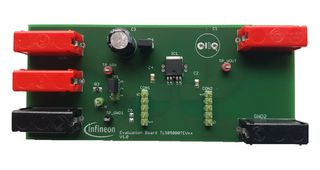

INFINEON TLS850B0TE33BOARDTOBO1	Fully Populated	Board(s)	Board(s)	TLS850B0TEV33	Positive Fixed	1	500 mA	3.3 V	3 V	40 V
INFINEON TLS850F2TAV50ATMA1							500 mA				Automotive	59 dB	-40 °C	150 °C	82 µA	1	Enable Power Fail	AEC-Q100	Surface Mount	Positive	PG-TO263-7-1	80 µA	5 V	Over Current Over Temperature	0.175 V	D2PAK (7 Leads + Tab) TO-263-8 TO-263CA

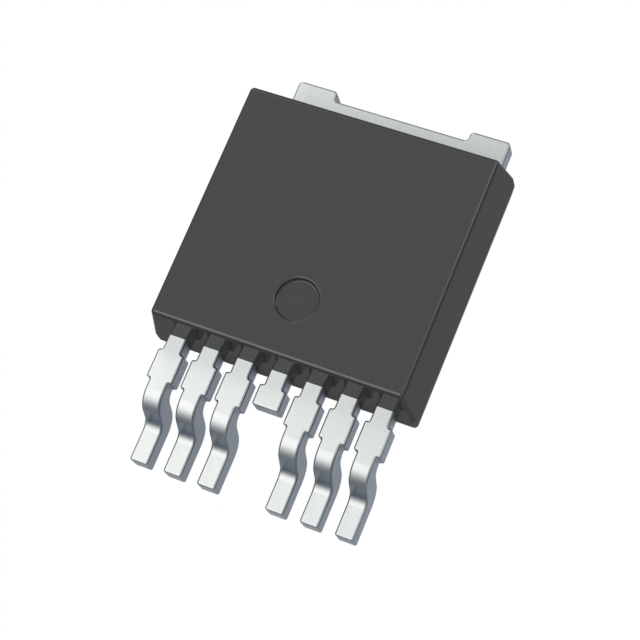

INFINEON TLS850F3TUV50ATMA1							500 mA					60 dB	-40 °C	150 °C	55 µA	1	Delay Inhibit Reset Output Watchdog		Surface Mount	Positive	PG-TO252-7-1	47 µA	5 V	Over Current Over Temperature Reverse Polarity		TO-252-7 DPAK (6 Leads + Tab)	42 V	0.75 V
INFINEON TLS850B0TB33BOARDTOBO1	Fully Populated	Board(s)	Board(s)	TLS850B0TBV33	Positive Fixed	1	500 mA	3.3 V	3 V	40 V
INFINEON TLS850B0TB50BOARDTOBO1	Fully Populated	Board(s)	Board(s)	TLS850B0TBV50	Positive Fixed	1	500 mA	5 V	3 V	40 V
INFINEON TLS850B0TEV50ATMA1							500 mA				Automotive	60 dB	-40 °C	150 °C	33 µA	1	Enable	AEC-Q100	Surface Mount	Positive	PG-TO252-5	25 µA	5 V	Over Current Over Temperature	0.5 V	DPAK (4 Leads + Tab) TO-252-5 TO-252AD

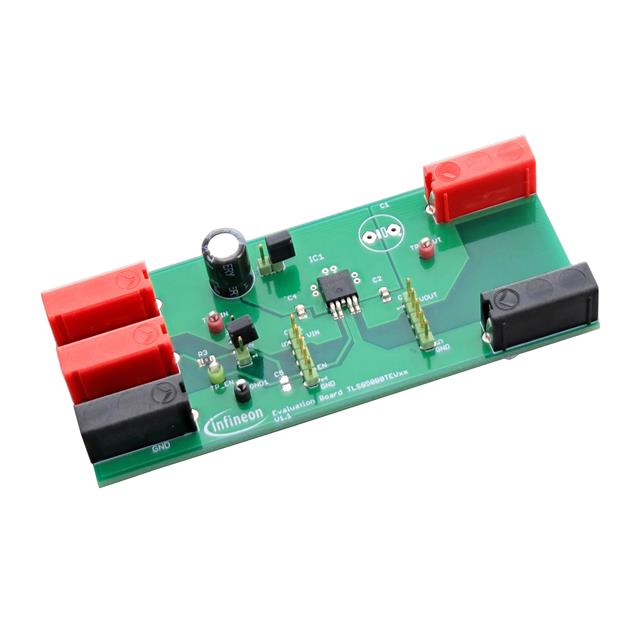

INFINEON TLS850B0TE50BOARDTOBO1	Fully Populated	Board(s)	Board(s)	TLS850B0TEV50	Positive Fixed	1	500 mA	5 V	3 V	40 V
