2250009 Series
Manufacturer: Bel Fuse Inc.
Beta
⌘K

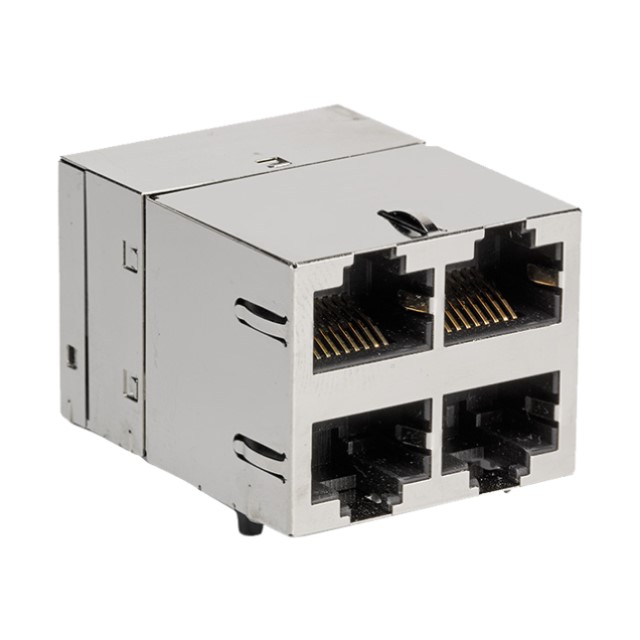

CONN JACK 4PORT 100 BASE-T PCB
| Part | Number of Ports | Mounting Type | Termination | Tab Direction | Orientation | Features | Number of Rows [custom] | Applications | LED Color | Operating Temperature [Max] | Operating Temperature [Min] | Height Above Board [z] | Height Above Board [z] | Contact Material | Connector Type | Shielding | Contact Finish | Shield Material | Contact Finish Thickness | Contact Finish Thickness | Housing Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bel Fuse Inc. | 4 | Through Hole | Solder | Up and Down | 90 ° | Board Guide | 2 | 10/100 Base-T AutoMDIX | Green Yellow | 85 °C | -40 C | 25.5 mm | 1.004 in | Phosphor Bronze | RJ45 | EMI Finger Shielded | Gold | ||||
Bel Fuse Inc. | 4 | Through Hole | Solder | Up and Down | 90 ° | Board Guide | 2 | 10/100 Base-T AutoMDIX | Green Yellow | 85 °C | -40 C | 25.5 mm | 1.004 in | Phosphor Bronze | RJ45 | EMI Finger Shielded | Gold | Brass | 50 µin | 1.27 µm | Thermoplastic |
