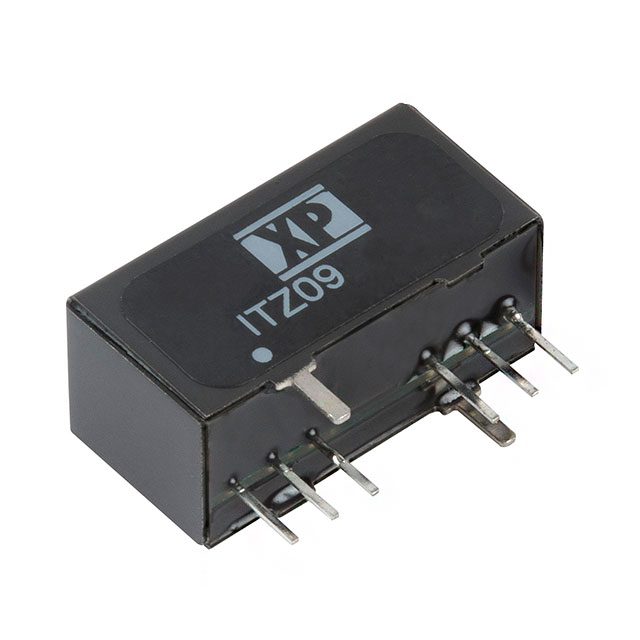

ITZ0948 Series

Manufacturer: XP Power

Catalog

ISOLATED THROUGH HOLE DC/DC CONVERTER, ITE, 4:1, 9 W, 1 OUTPUT, 24 V, 375 MA

Part	Voltage - Input (Min) [Min]	Applications	Standard Number	Type	Voltage - Output 1	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Supplier Device Package	Current - Output (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Efficiency	Number of Outputs	Voltage - Input (Max) [Max]	Features	Control Features	Voltage - Isolation	Package / Case	Mounting Type	Voltage - Output 2	Current - Output (Max)
XP Power ITZ0948S24	18 V	ITE (Commercial)	62368-1	Isolated Module	24 V	21.9 mm	0.38 "	9.6 mm	0.44 in	11.2 mm	0.86 "	8-SIP	375 mA	-40 °C	85 °C	88 %	1	75 V	Remote On/Off SCP	Active Low Enable	1.5 kV	8-SIP Module	Through Hole
XP Power ITZ0948S3V3	18 V	ITE (Commercial)	62368-1	Isolated Module	3.3 V	21.9 mm	0.38 "	9.6 mm	0.44 in	11.2 mm	0.86 "	8-SIP	2 A	-40 °C	85 °C		1	75 V	Remote On/Off SCP	Active Low Enable	1.5 kV	8-SIP Module	Through Hole
XP Power ITZ0948D12	18 V	ITE (Commercial)	62368-1	Isolated Module	12 V	21.9 mm	0.38 "	9.6 mm	0.44 in	11.2 mm	0.86 "	8-SIP		-40 °C	85 °C	87 %	2	75 V	Remote On/Off SCP	Active Low Enable	1.5 kV	8-SIP Module	Through Hole	-12 V	250 mA
XP Power ITZ0948S09	18 V	ITE (Commercial)	62368-1	Isolated Module	9 V	21.9 mm	0.38 "	9.6 mm	0.44 in	11.2 mm	0.86 "	8-SIP	1 A	-40 °C	85 °C	86 %	1	75 V	Remote On/Off SCP	Active Low Enable	1.5 kV	8-SIP Module	Through Hole
XP Power ITZ0948S12	18 V	ITE (Commercial)	62368-1	Isolated Module	12 V	21.9 mm	0.38 "	9.6 mm	0.44 in	11.2 mm	0.86 "	8-SIP	750 mA	-40 °C	85 °C	89 %	1	75 V	Remote On/Off SCP	Active Low Enable	1.5 kV	8-SIP Module	Through Hole
