SPU02N60 Series
Manufacturer: INFINEON
Beta
⌘K

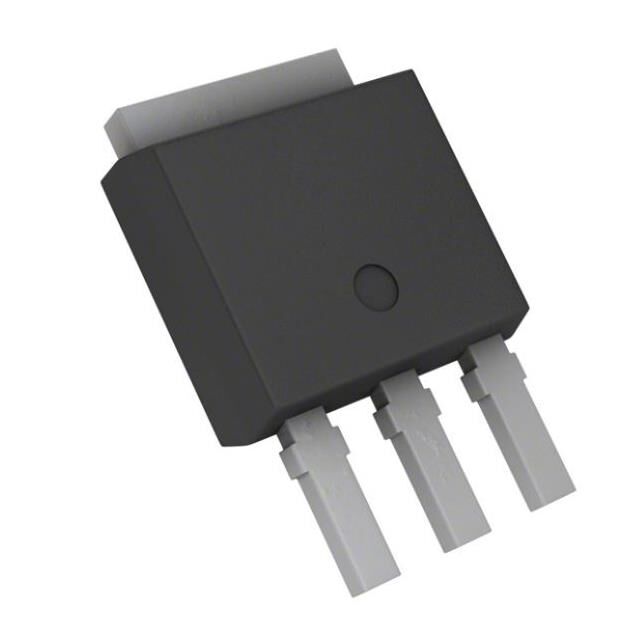

POWER MOSFET, N CHANNEL, 650 V, 1.8 A, 2.7 OHM, TO-251, THROUGH HOLE
| Part | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Drive Voltage (Max Rds On, Min Rds On) | Input Capacitance (Ciss) (Max) @ Vds | Vgs (Max) | Operating Temperature [Max] | Operating Temperature [Min] | Gate Charge (Qg) (Max) @ Vgs [Max] | Supplier Device Package | Technology | Power Dissipation (Max) | Current - Continuous Drain (Id) @ 25°C | Drain to Source Voltage (Vdss) | Package / Case | FET Type | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 INFINEON | 3 Ohm | 3.9 V | 10 V | 200 pF | 20 V | 150 °C | -55 °C | 12.5 nC | PG-TO251-3-21 | MOSFET (Metal Oxide) | 25 W | 1.8 A | 650 V | IPAK TO-251-3 Short Leads TO-251AA | N-Channel | Through Hole |
