887-042 Series

Manufacturer: EDAC Inc.

Catalog

Catalog

CONN EDGE SGL FMALE 42POS 0.156

...

Part	Material - Insulation	Termination Rows	Flange Feature	Flange Feature [diameter]	Flange Feature [diameter]	Read Out	Contact Material	Card Thickness [Max]	Card Thickness [Min]	Card Type	Number of Rows	Number of Positions/Bay/Row	Pitch	Pitch	Contact Finish Thickness	Contact Finish Thickness	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions	Termination	Contact Finish	Color	Gender	Mounting Type	Contact Type	Termination Rows [custom]	Number of Positions/Bay/Row [custom]	Number of Rows [custom]	Features

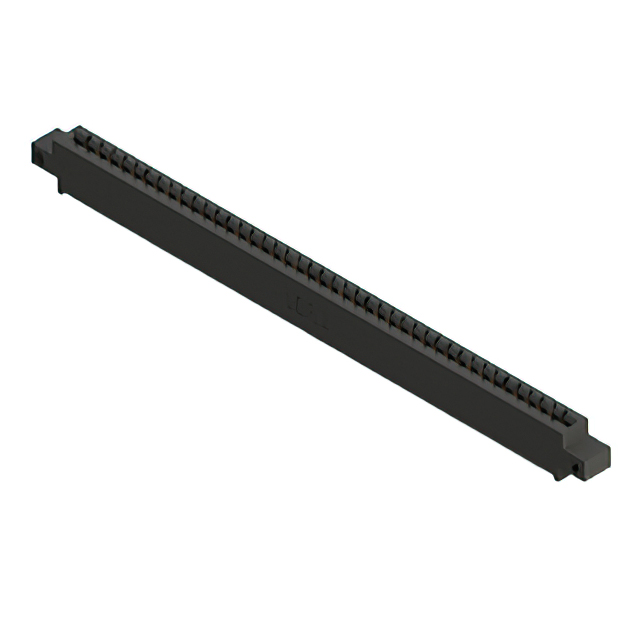

EDAC Inc. 887-042-523-612	Polyphenylene Sulfide (PPS)	1	Side Mount Opening Unthreaded	0.128 "	3.25 mm	Single	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Single Edge	1	42	3.96 mm	0.156 in	0.25 Ám	10 Áin	125 °C	-40 C	42	Solder	Gold	Black	Female	Through Hole	Cantilever
EDAC Inc. 887-042-521-602	Polyphenylene Sulfide (PPS)	1		0.128 "	3.25 mm	Single	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Single Edge	1	42	3.96 mm	0.156 in	0.25 Ám	10 Áin	125 °C	-40 C	42	Solder	Gold	Black	Female	Through Hole	Cantilever
EDAC Inc. 887-042-559-604	Polyphenylene Sulfide (PPS)	1		0.156 "	3.96 mm	Single	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Single Edge	1	42	3.96 mm	0.156 in	0.25 Ám	10 Áin	125 °C	-40 C	42	Solder	Gold	Black	Female	Right Angle Through Hole	Cantilever

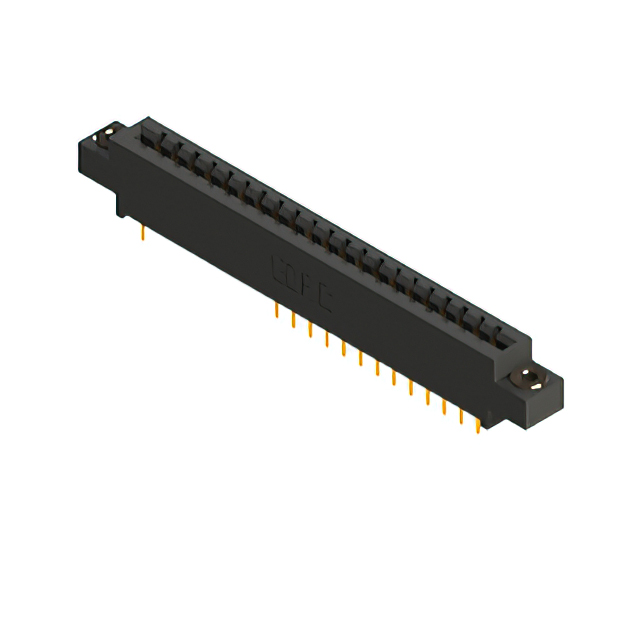

EDAC Inc. 887-042-541-803	Polyphenylene Sulfide (PPS)		Floating Bobbin Top Mount Opening	0.116 "	2.95 mm	Dual	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Dual Edge			3.96 mm	0.156 in	0.25 Ám	10 Áin	125 °C	-40 C	42	Wire Wrap	Gold	Black	Female	Through Hole	Cantilever	2	21	2
EDAC Inc. 887-042-524-204	Polyphenylene Sulfide (PPS)		Flush Mount Top Opening Unthreaded	0.156 "	3.96 mm	Dual	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Dual Edge			3.96 mm	0.156 in	0.25 Ám	10 Áin	125 °C	-40 C	42	Solder	Gold	Black	Female	Through Hole	Cantilever	2	21	2

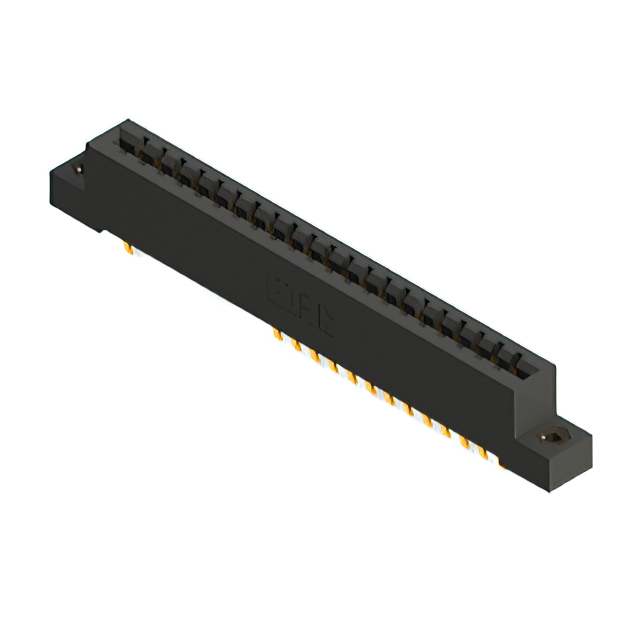

EDAC Inc. 887-042-560-208	Polyphenylene Sulfide (PPS)		4-40 Flush Mount Threaded Insert Top Opening			Dual	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Dual Edge			3.96 mm	0.156 in	0.25 Ám	10 Áin	125 °C	-40 C	42	Solder	Gold	Black	Female	Board Edge Straddle Mount	Cantilever	2	21	2	Card Extender
EDAC Inc. 887-042-541-808	Polyphenylene Sulfide (PPS)		4-40 Threaded Insert Top Mount Opening			Dual	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Dual Edge			3.96 mm	0.156 in	0.25 Ám	10 Áin	125 °C	-40 C	42	Wire Wrap	Gold	Black	Female	Through Hole	Cantilever	2	21	2

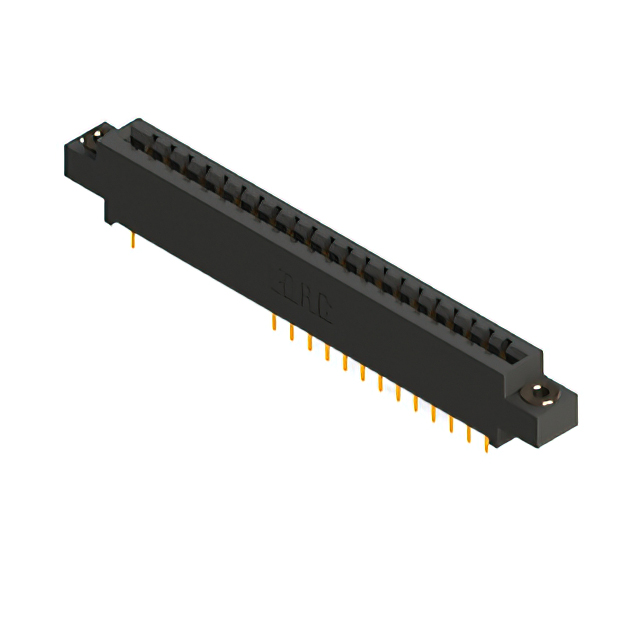

EDAC Inc. 887-042-540-803	Polyphenylene Sulfide (PPS)		Floating Bobbin Top Mount Opening	0.116 "	2.95 mm	Dual	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Dual Edge			3.96 mm	0.156 in	0.25 Ám	10 Áin	125 °C	-40 C	42	Wire Wrap	Gold	Black	Female	Through Hole	Cantilever	2	21	2
EDAC Inc. 887-042-559-803	Polyphenylene Sulfide (PPS)		Floating Bobbin Top Mount Opening	0.116 "	2.95 mm	Dual	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Dual Edge			3.96 mm	0.156 in	0.25 Ám	10 Áin	125 °C	-40 C	42	Solder	Gold	Black	Female	Right Angle Through Hole	Cantilever	2	21	2

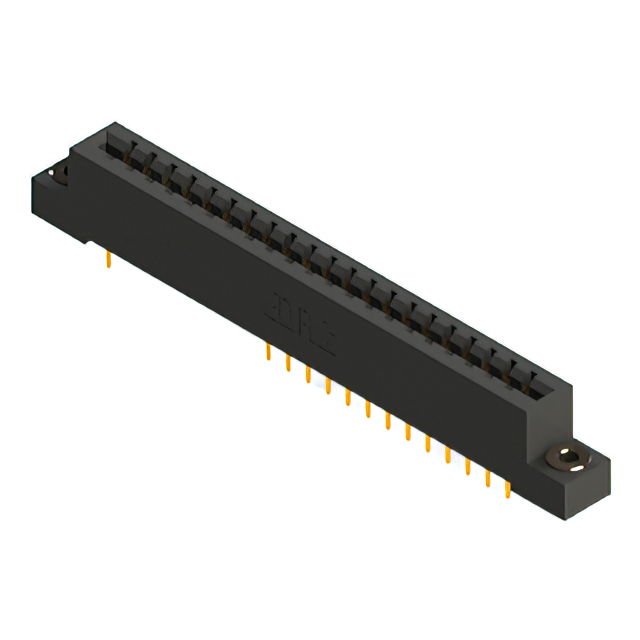

EDAC Inc. 887-042-521-203	Polyphenylene Sulfide (PPS)		Floating Bobbin Flush Mount	0.116 "	2.95 mm	Dual	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Dual Edge			3.96 mm	0.156 in	0.25 Ám	10 Áin	125 °C	-40 C	42	Solder	Gold	Black	Female	Through Hole	Cantilever	2	21	2
