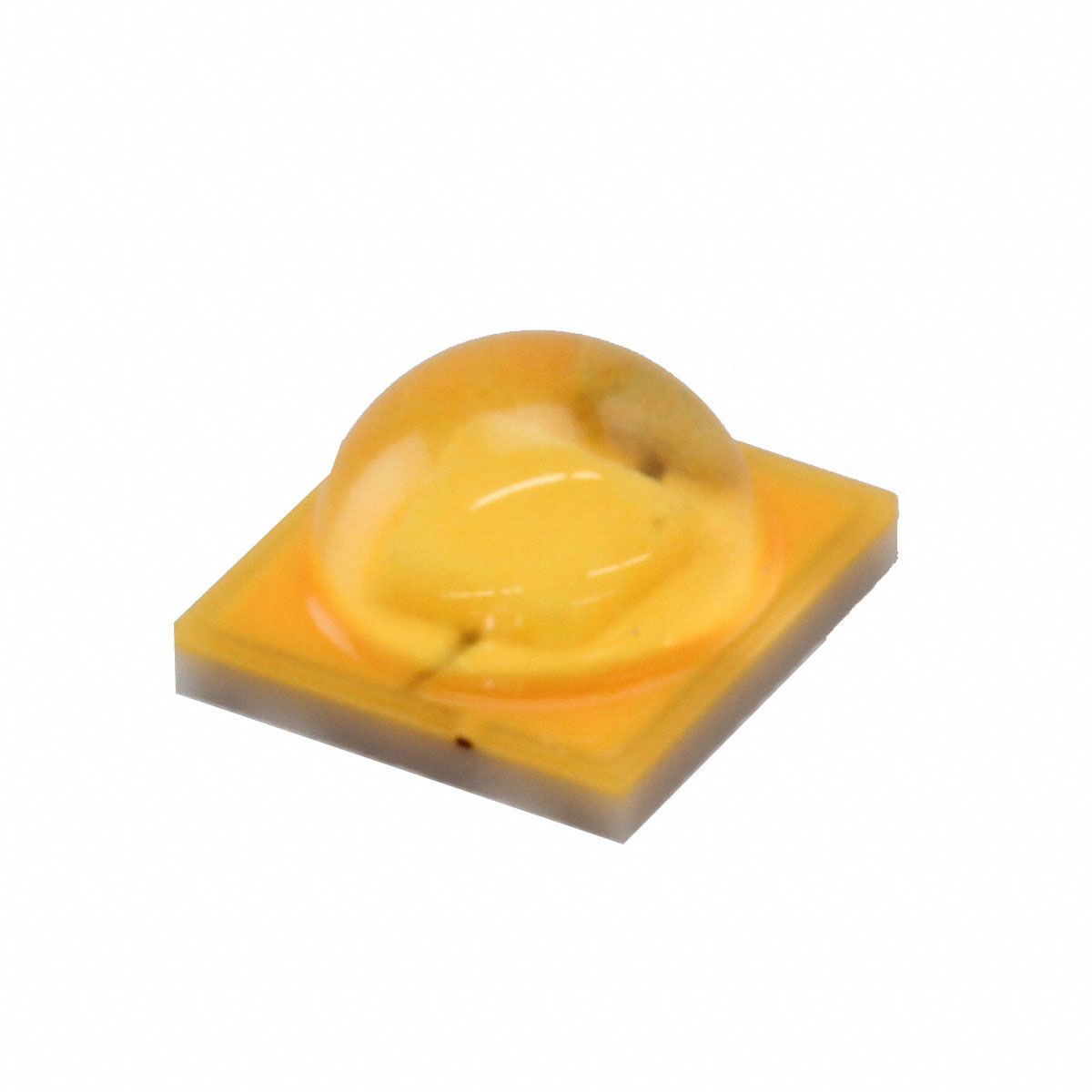

L1Q0 Series

Manufacturer: Lumileds

Catalog

LED LUXEON WARM WHT 3500K 3535

Part	Thermal Resistance of Package	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Package / Case	Mounting Type	Color	Current - Test	Flux @ 85°C, Current - Test	CCT (K)	Lumens/Watt @ Current - Test	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Voltage - Forward (Vf) (Typ)	Supplier Device Package	Viewing Angle	Current - Max [Max]	CRI (Color Rendering Index)	CCT (K)	Height - Seated (Max) [Max] [z]
Lumileds L1Q0-3580000001100	7 °C/W	2.12 mm	0.083 "	1414 (3535 Metric)	Surface Mount	Warm White	350 mA	106 lm	3500 K	108 lm/W	0.136 "	3.45 mm	3.45 mm	0.136 in	2.81 V	3535	135 °	1.05 A	80
Lumileds L1Q0-5770000001100	7 °C/W		2.25 mm	1414 (3535 Metric)	Surface Mount	Cool White	1 A	320 lm	5700 K	106 lm/W	0.136 "	3.45 mm	3.45 mm	0.136 in	2.99 V	3535	135 °	1.05 A	70	3-Step MacAdam Ellipse	0.089 in
Lumileds L1Q0-4070000001500	7 °C/W		2.25 mm	1414 (3535 Metric)	Surface Mount	Neutral White	1 A	313 lm	4000 K	104 lm/W	0.136 "	3.45 mm	3.45 mm	0.136 in	2.99 V	3535	135 °	1.05 A	70	3-Step MacAdam Ellipse	0.089 in
Lumileds L1Q0-2780000000800	7 °C/W		2.25 mm	1414 (3535 Metric)	Surface Mount	Warm White	1 A	261 lm	2700 K	87 lm/W	0.136 "	3.45 mm	3.45 mm	0.136 in	2.99 V	3535	135 °	1.05 A	80	3-Step MacAdam Ellipse	0.089 in
Lumileds L1Q0-5775000001100	7 °C/W		2.25 mm	1414 (3535 Metric)	Surface Mount	Cool White	1 A	320 lm	5700 K	106 lm/W	0.136 "	3.45 mm	3.45 mm	0.136 in	2.99 V	3535	135 °	1.05 A	75	3-Step MacAdam Ellipse	0.089 in
Lumileds L1Q0-3080000000900	7 °C/W		2.25 mm	1414 (3535 Metric)	Surface Mount	Warm White	1 A		3000 K	88 lm/W	0.136 "	3.45 mm	3.45 mm	0.136 in	2.99 V	3535	135 °	1.05 A	80	3-Step MacAdam Ellipse	0.089 in
Lumileds L1Q0-2780000001200	7 °C/W		2.25 mm	1414 (3535 Metric)	Surface Mount	Warm White	1 A	261 lm	2700 K	87 lm/W	0.136 "	3.45 mm	3.45 mm	0.136 in	2.99 V	3535	135 °	1.05 A	80	3-Step MacAdam Ellipse	0.089 in
Lumileds L1Q0-3080000001100	7 °C/W	2.12 mm	0.083 "	1414 (3535 Metric)	Surface Mount	Warm White	350 mA	102 lm	3000 K	104 lm/W	0.136 "	3.45 mm	3.45 mm	0.136 in	2.81 V	3535	135 °	1.05 A	80
Lumileds L1Q0-5775000001500	7 °C/W		2.25 mm	1414 (3535 Metric)	Surface Mount	Cool White	1 A	320 lm	5700 K	106 lm/W	0.136 "	3.45 mm	3.45 mm	0.136 in	2.99 V	3535	135 °	1.05 A	75	3-Step MacAdam Ellipse	0.089 in
Lumileds L1Q0-3580000000900	7 °C/W		2.25 mm	1414 (3535 Metric)	Surface Mount	Warm White	1 A	278 lm	3500 K	92 lm/W	0.136 "	3.45 mm	3.45 mm	0.136 in	2.99 V	3535	135 °	1.05 A	80	3-Step MacAdam Ellipse	0.089 in
