LPPB061 Series
Manufacturer: Sullins Connector Solutions
Beta
⌘K
CONN HDR 6POS 0.05 GOLD SMD
| Part | Pitch - Mating | Pitch - Mating | Contact Finish Thickness - Post | Material Flammability Rating | Contact Type | Mounting Type | Connector Type | Insulation Material | Operating Temperature [Max] | Operating Temperature [Min] | Contact Finish Thickness - Mating | Termination | Insulation Color | Fastening Type | Contact Finish - Mating | Number of Positions Loaded | Number of Positions | Contact Finish - Post | Number of Rows | Insulation Height | Insulation Height | Contact Material | Contact Shape | Contact Length - Post | Contact Length - Post |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

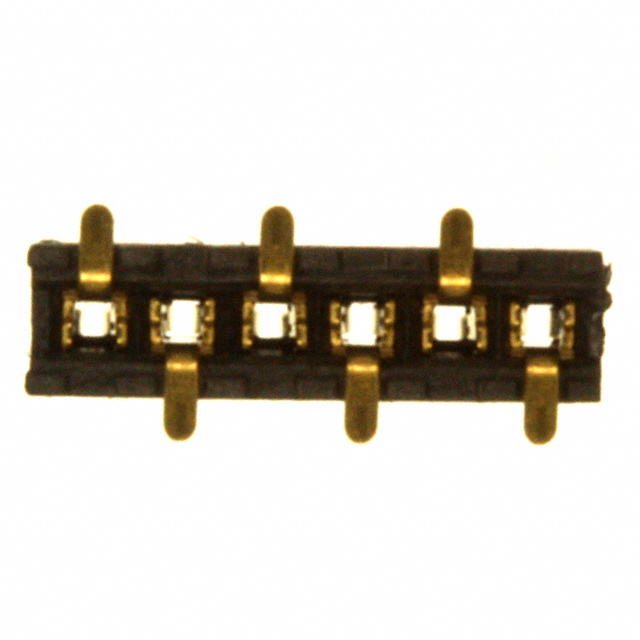

 Sullins Connector Solutions | 0.05 in | 1.27 mm | Flash | UL94 V-0 | Female Socket | Surface Mount | Header Top or Bottom Entry | Liquid Crystal Polymer (LCP) | 125 °C | -40 °C | Flash | Solder | Black | Push-Pull | Gold | All | 6 | Gold | 1 | 4.65 mm | 0.183 in | Phosphor Bronze | Square | ||

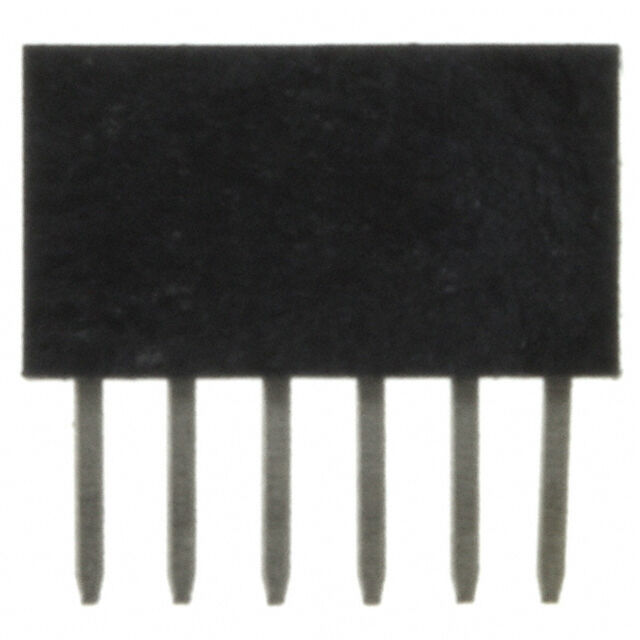

 Sullins Connector Solutions | 0.05 in | 1.27 mm | Flash | UL94 V-0 | Female Socket | Through Hole | Header | Liquid Crystal Polymer (LCP) | 105 ░C | -40 °C | Flash | Solder | Push-Pull | Gold | All | 6 | Gold | 1 | 4.5 mm | 0.177 in | Phosphor Bronze | Square | 0.118 in | 3 mm | |

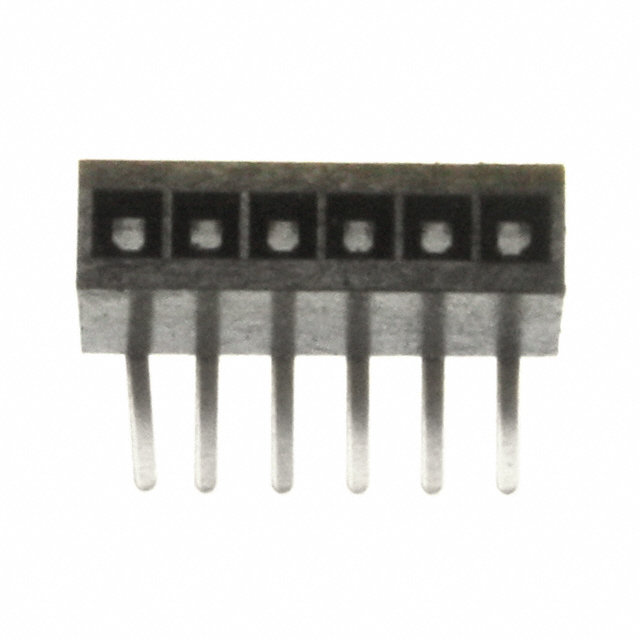

 Sullins Connector Solutions | 0.05 in | 1.27 mm | Flash | UL94 V-0 | Female Socket | Through Hole Right Angle | Header | Liquid Crystal Polymer (LCP) | 105 ░C | -40 °C | Flash | Solder | Push-Pull | Gold | All | 6 | Gold | 1 | 2.2 mm | 0.087 " | Phosphor Bronze | Square | 0.091 in | 2.3 mm |
