109P1324 Series

Catalog

FAN AXIAL 127X38MM 24VDC WIRE

Part	Lifetime @ Temp.	Current Rating (Amps)	Material - Blade	Material - Frame	Power (Watts)	RPM	Width [y]	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Size / Dimension [z]	Size / Dimension [x]	Bearing Type	Voltage - Rated	Static Pressure	Static Pressure	Air Flow	Air Flow	Noise	Approval Agency	Fan Type	Termination	Weight	Weight	Features
Sanyo Denki America Inc. 109P1324S102	40000 Hrs	0.55 A	Plastic	Plastic	13.2 W	3300 RPM	38 mm	60 °C	60 °C	-4 °F	-20 ░C	5 in	5 "	Ball	24 VDC	117.6 Pa	0.472 in H2O	4.14 mł/min	148 CFM	47 dB	CSA TUV UL	Tubeaxial	2 Wire Leads	0.772 lb	350.17 g
Sanyo Denki America Inc. 109P1324S1021	40000 Hrs	0.55 A	Plastic	Plastic	13.2 W	3300 RPM	38 mm	60 °C	60 °C	-4 °F	-20 ░C	5 in	5 "	Ball	24 VDC	117.6 Pa	0.472 in H2O	4.14 mł/min	148 CFM	47 dB	CSA TUV UL	Tubeaxial	2 Wire Leads	0.772 lb	350.17 g
Sanyo Denki America Inc. 109P1324H101	40000 Hrs	0.41 A	Plastic	Plastic	9.84 W	2950 RPM	38 mm	60 °C	60 °C	-4 °F	-20 ░C	5 in	5 "	Ball	24 VDC	98.1 Pa	0.394 in H2O	3.75 m³/min	134 CFM	45 dB(A)	CSA TUV UL	Tubeaxial	3 Wire Leads	0.772 lb	350.17 g	Locked Rotor Protection Speed Sensor (Tach)
Sanyo Denki America Inc. 109P1324S1011	40000 Hrs	0.55 A	Plastic	Plastic	13.2 W	3300 RPM	38 mm	60 °C	60 °C	-4 °F	-20 ░C	5 in	5 "	Ball	24 VDC	117.6 Pa	0.472 in H2O	4.14 mł/min	148 CFM	47 dB	CSA TUV UL	Tubeaxial	3 Wire Leads	0.772 lb	350.17 g	Locked Rotor Protection Speed Sensor (Tach)
Sanyo Denki America Inc. 109P1324S1D01	40000 Hrs	0.55 A	Plastic	Plastic	13.2 W	3300 RPM	38 mm	60 °C	60 °C	-4 °F	-20 ░C	5 in	5 "	Ball	24 VDC	117.6 Pa	0.472 in H2O	4.14 mł/min	148 CFM	47 dB	CSA TUV UL	Tubeaxial	3 Wire Leads	0.772 lb	350.17 g	Locked Rotor Sensor

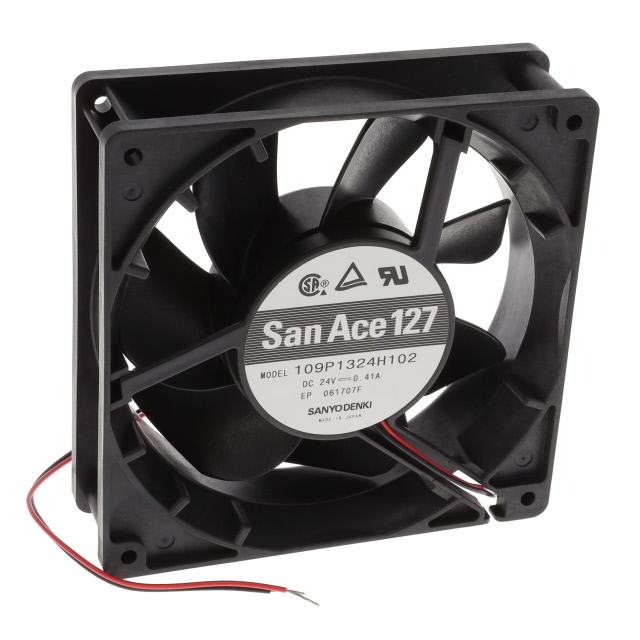

Sanyo Denki America Inc. 109P1324H102	40000 Hrs	0.41 A	Plastic	Plastic	9.84 W	2950 RPM	38 mm	60 °C	60 °C	-4 °F	-20 ░C	5 in	5 "	Ball	24 VDC	98.1 Pa	0.394 in H2O	3.75 m³/min	134 CFM	45 dB(A)	CSA TUV UL	Tubeaxial	2 Wire Leads	0.772 lb	350.17 g
