Circular DIN Connectors MINI-DIN PANEL MNT 4P SNAP&LOCK 500 W
Circular DIN Connectors MINI-DIN PANEL MNT 4P SNAP&LOCK 500 W
| Part | Termination | Shell Size - Insert | Fastening Type | Mounting Type | Primary Material | Number of Positions | Connector Type | Shielding | Voltage Rating | Contact Finish - Mating | Shell Material | Orientation | Color | Current Rating (Amps) | Operating Temperature [Min] | Operating Temperature [Max] | Features | Material Flammability Rating | Contact Finish Thickness - Mating | Contact Material | Insert Material | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Kycon, Inc. | Solder | Mini DIN | Push-Pull | Right Angle Through Hole | Plastic | 8 | Receptacle Female Sockets | Shielded | 12 VDC | Gold | Polybutylene Terephthalate (PBT) | Keyed | Black Silver | 2 A | -25 °C | 80 °C | Board Guide Board Lock | |||||
 Kycon, Inc. | Solder | Mini DIN | Push-Pull | Right Angle Through Hole | Plastic | 6 | Receptacle Female Sockets | Shielded | 12 VDC | Gold | Polybutylene Terephthalate (PBT) | Keyed | Black Silver | 2 A | -25 °C | 80 °C | Board Lock Stacked 2 | UL94 V-0 | ||||

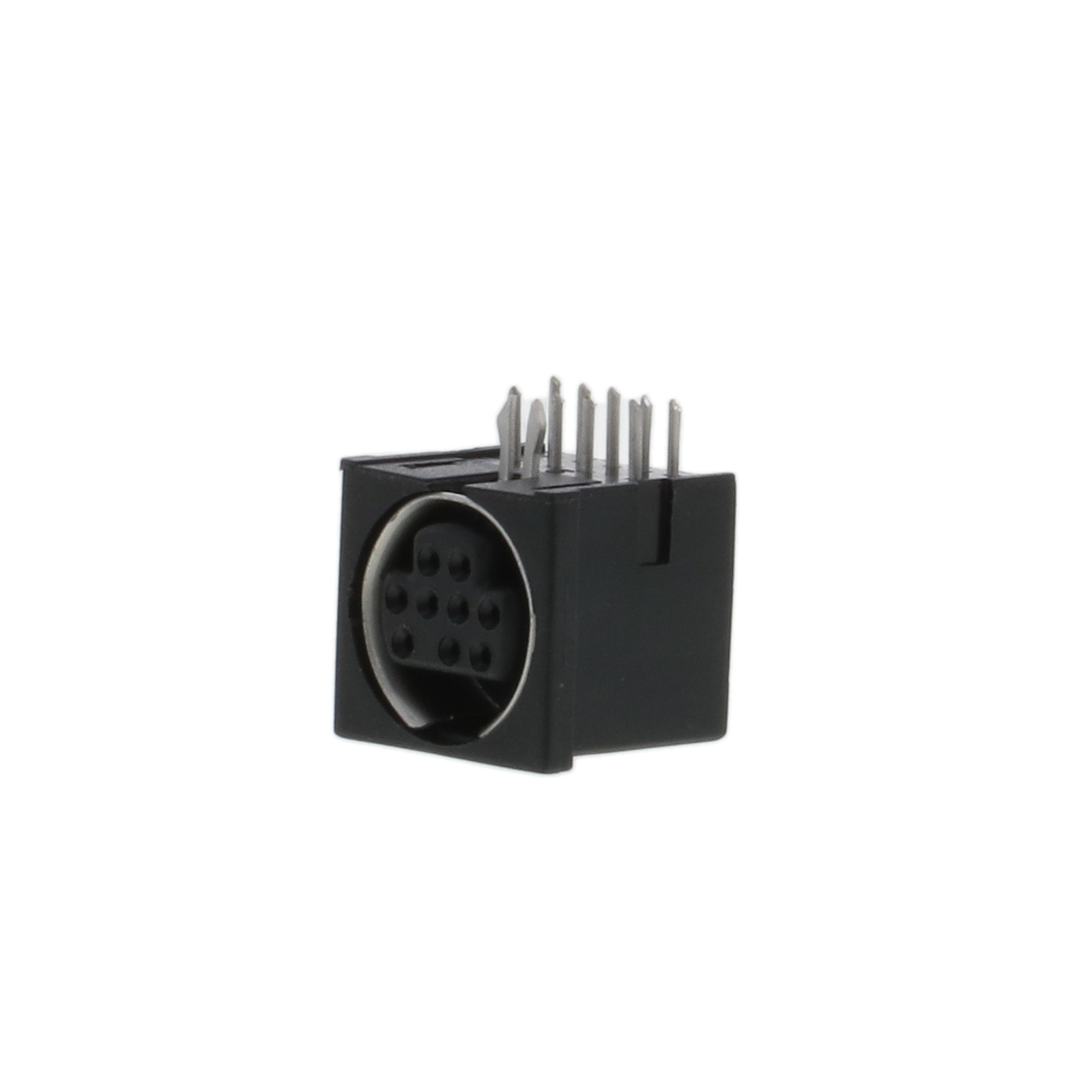

 Kycon, Inc. | Solder | Mini DIN | Push-Pull | Right Angle Through Hole | Plastic | 9 | Receptacle Female Sockets | Shielded | 12 VDC | Gold | Polybutylene Terephthalate (PBT) | Keyed | Black Silver | 2 A | -25 °C | 80 °C | Board Guide Board Lock | |||||
 Kycon, Inc. | Solder | Mini DIN | Push-Pull | Right Angle Through Hole | Plastic | 9 | Receptacle Female Sockets | Unshielded | 12 VDC | Gold | Polybutylene Terephthalate (PBT) | Keyed | Black Silver | -25 °C | 80 °C | Board Lock | Flash | Copper Alloy | Polybutylene Terephthalate (PBT) | Audio Video |
