DTF2 Series
Manufacturer: Honeywell Sensing and Productivity Solutions
Beta
⌘K
SWITCH SNAP ACTION DPDT 10A 125V
| Part | Pretravel | Pretravel | Overtravel | Overtravel | Actuator Type | Voltage Rating - DC | Circuit | Differential Travel | Differential Travel | Features | Voltage Rating - AC | Switch Function | Operating Position | Operating Position | Current Rating (Amps) | Mounting Type | Release Force | Termination Style | Operating Force | Pretravel |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Honeywell Sensing and Productivity Solutions | 3.2 mm | 0.125 in | 0.125 in | 3.2 mm | Roller Plunger | 125 VDC | DPDT | 1.5 mm | 0.06 " | Actuator Mounted Left Side | 125 V | On-Mom | 2.515 in | 63.9 mm | 10 A 300 mA | Chassis Mount | 113 gf | Screw Terminal | 1134 gf | |

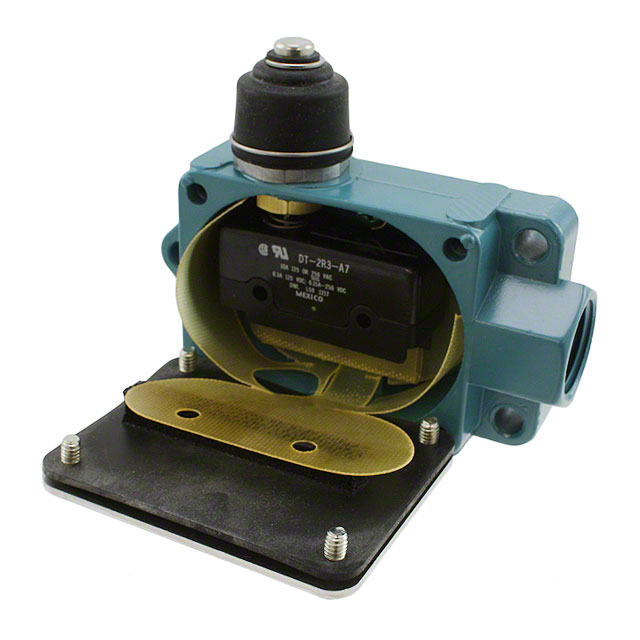

 Honeywell Sensing and Productivity Solutions | 3.6 mm | 0.156 in | 3.96 mm | Round (Pin Plunger) | 125 VDC | DPDT | 1.5 mm | 0.06 " | Actuator Mounted Left Side | 125 V | On-Mom | 2.05 " | 52.1 mm | 10 A 300 mA | Chassis Mount | 113 gf | Screw Terminal | 1134 gf | 0.14 in | |

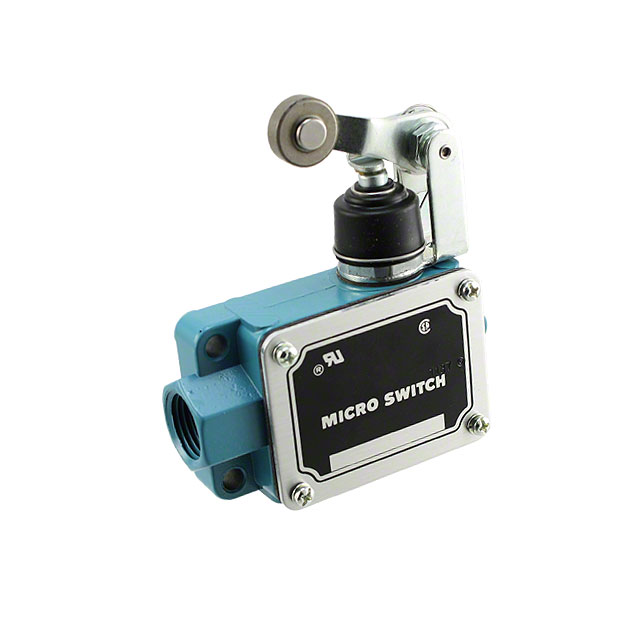

 Honeywell Sensing and Productivity Solutions | 7.9 mm | 0.219 in | 5.6 mm | Lever Roller | 125 VDC | DPDT | 3.05 mm | 0.12 " | Actuator Mounted Right Side | 125 V | On-Mom | 10 A 300 mA | Chassis Mount | 57 gf | Screw Terminal | 1134 gf | 0.31 in | |||

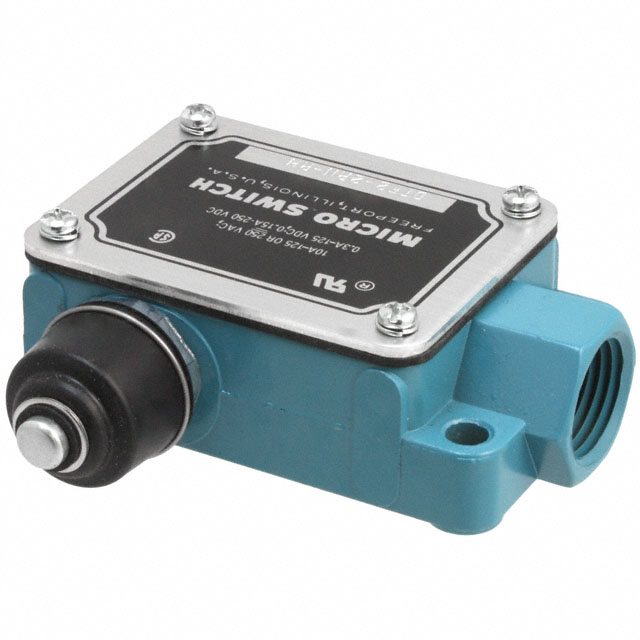

 Honeywell Sensing and Productivity Solutions | 3.6 mm | 0.156 in | 3.96 mm | Round (Pin Plunger) | 125 VDC | DPDT | 1.5 mm | 0.06 " | Actuator Mounted Right Side | 125 V | On-Mom | 2.05 " | 52.1 mm | 10 A 300 mA | Chassis Mount | 113 gf | Screw Terminal | 1134 gf | 0.14 in |
