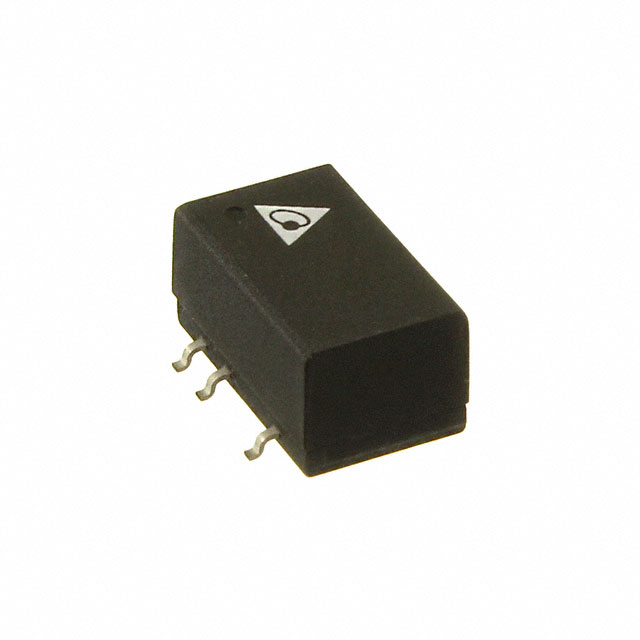

SH01S Series

Catalog

DC DC CONVERTER 12V 1W

Part	Voltage - Isolation	Applications	Type	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Number of Outputs	Features	Current - Output (Max) [Max]	Voltage - Output 1	Package / Case	Voltage - Input (Min) [Min]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Voltage - Input (Max) [Max]	Efficiency
Delta Electronics SH01S2412A	1.5 kV	Medical	Isolated Module	85 °C	-40 C	Surface Mount	1	SCP	84 mA	12 V	8-SMD Module 5 Leads	21.6 V	13.7 mm	0.54 in	8 mm	0.28 "	7 mm	0.31 in	26.4 V	77 %
Delta Electronics SH01S1512A	1.5 kV	Medical	Isolated Module	85 °C	-40 C	Surface Mount	1	SCP	84 mA	12 V	8-SMD Module 5 Leads	13.5 V	13.7 mm	0.54 in	8 mm	0.28 "	7 mm	0.31 in	16.5 V	78 %
Delta Electronics SH01S0505A	1.5 kV	Medical	Isolated Module	85 °C	-40 C	Surface Mount	1	SCP	200 mA	5 V	8-SMD Module 5 Leads	4.5 V	13.7 mm	0.54 in	8 mm	0.28 "	7 mm	0.31 in	5.5 V	78 %
Delta Electronics SH01S0503A	1.5 kV	Medical	Isolated Module	85 °C	-40 C	Surface Mount	1	SCP	0.3 A	3.3 V	8-SMD Module 5 Leads	4.5 V	13.7 mm	0.54 in	8 mm	0.28 "	7 mm	0.31 in	5.5 V	73 %
Delta Electronics SH01S2415A	1.5 kV	Medical	Isolated Module	85 °C	-40 C	Surface Mount	1	SCP	67 mA	15 V	8-SMD Module 5 Leads	21.6 V	13.7 mm	0.54 in	8 mm	0.28 "	7 mm	0.31 in	26.4 V	79 %
