QCM50 Series
Manufacturer: BANNER ENGINEERING
Beta
⌘K

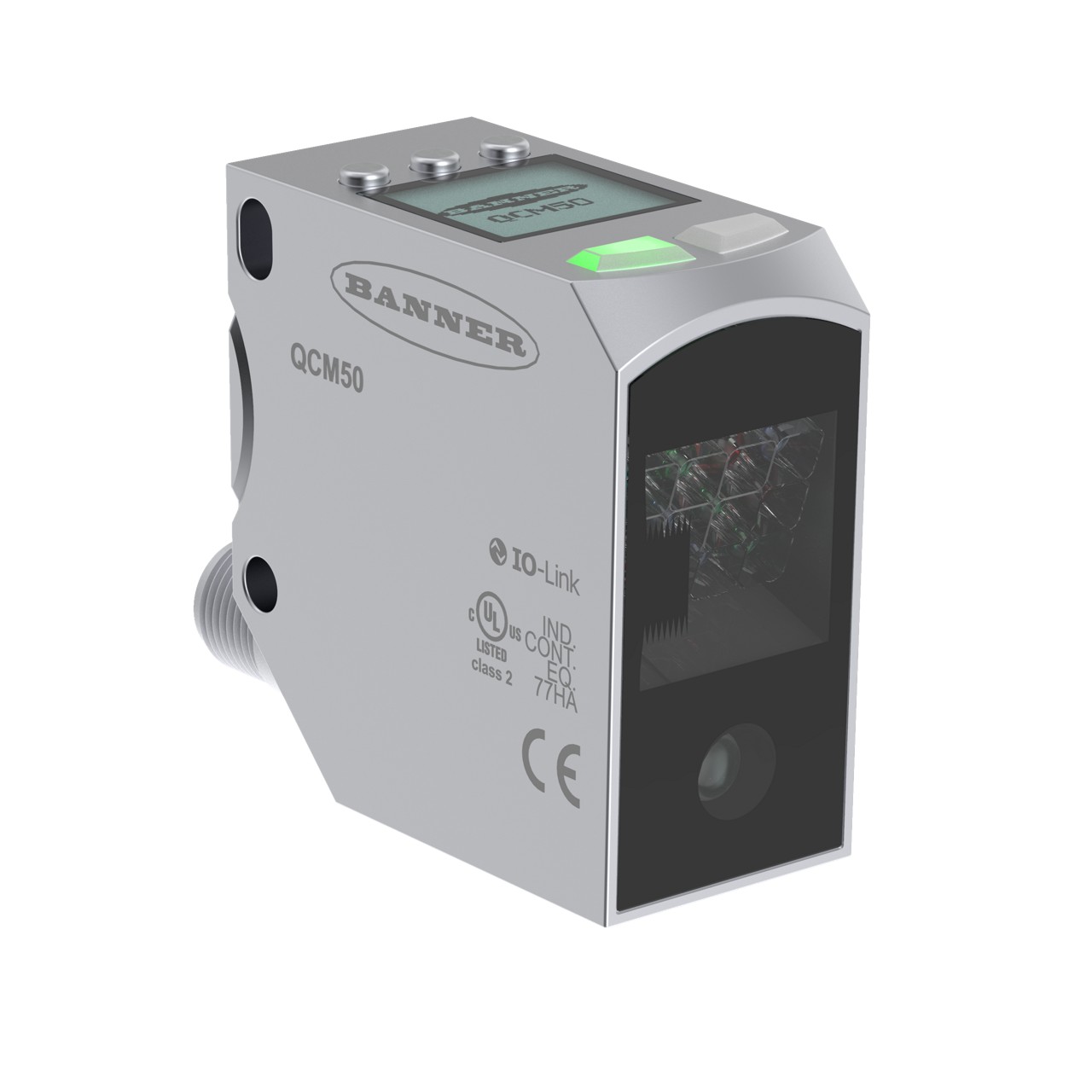

QCM50 SERIES: COLOR SENSORRA
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Package / Case | Current - Supply (Max) [Max] | Output | Voltage - Supply [Min] | Voltage - Supply [Max] | Sensing Distance [Max] | Sensing Distance [Max] | Sensing Distance [Min] | Sensing Distance [Min] | Output Configuration | Light Source | Connection Method | Ingress Protection | Adjustment Type | Response Time |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 BANNER ENGINEERING | 55 °C | -20 ░C | Module | 60 mA | NPN PNP | 18 V | 30 VDC | ||||||||||
 BANNER ENGINEERING | 55 °C | -20 ░C | 10 VDC | 30 VDC | 5.91 in | 15 cm | 20 mm | 0.79 " | NPN PNP | White LED | Connector | IP67 IP69K | Adjustable | 180 µs | |||
 BANNER ENGINEERING | 55 °C | -20 ░C | 10 VDC | 30 VDC | 2.36 in 60 mm | 0.71 in 18 mm | NPN PNP | White LED | Connector | IP67 IP69K | Adjustable | 180 µs | |||||
 BANNER ENGINEERING | 55 °C | -20 ░C | 10 VDC | 30 VDC | 1.26 in | 32 mm | 18 mm | 0.709 " | NPN PNP | White LED | Connector | IP67 IP69K | Adjustable | 180 µs |
