R16153 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

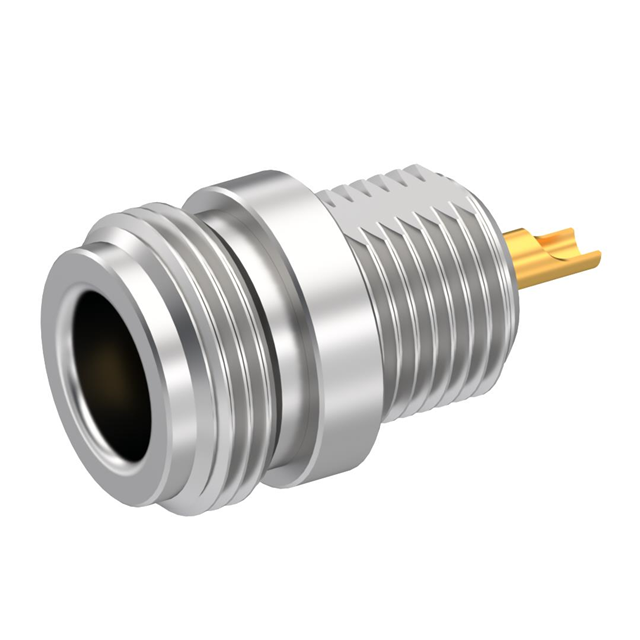

N / JACK RECEPTACLE FRONT MOUTIN
| Part | Body Finish | Operating Temperature [Min] | Operating Temperature [Max] | Voltage Rating | Mating Cycles | Insertion Loss | Body Material | Dielectric Material | Center Contact Plating | Center Contact Material | Shield Termination | Frequency - Max [Max] | Housing Color | Impedance | Connector Style | Contact Termination | Number of Ports | Ingress Protection | Connector Type | Fastening Type | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | White Bronze | -55 C | 165 °C | 1400 V | 500 | 0.15 dB | Brass | Polytetrafluoroethylene (PTFE) | Gold | Beryllium Copper | Solder | 11 GHz | Silver | 50 Ohms | N Type | Solder Cup | 1 | IP67 - Dust Tight Waterproof | Female Socket Jack | Threaded | Free Hanging (In-Line) |
