W32B0C-P Series
Manufacturer: ODU
Beta
⌘K

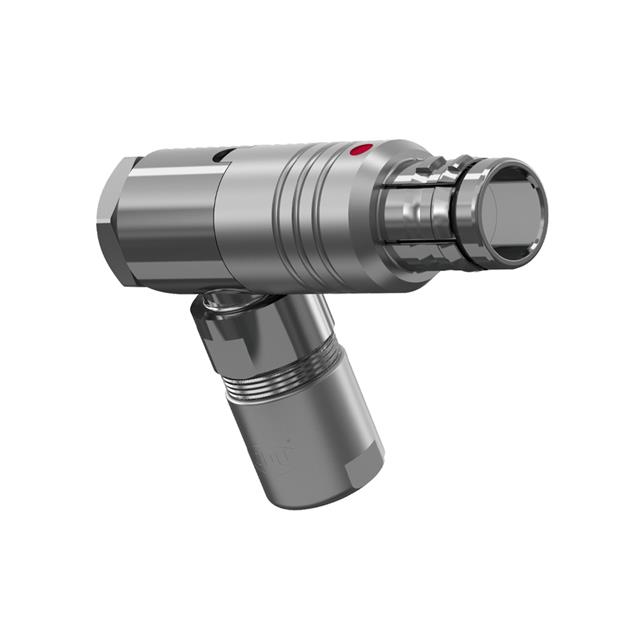

ODU MINI-SNAP PLUG, R/A, SZ 2, S
| Part | Shell Finish | Color | Backshell Material, Plating | Ingress Protection | Insert Material | Applications | Shielding | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Current Rating (Amps) | Primary Material | Cable Opening [Min] | Cable Opening [Max] | Cable Opening [Max] | Cable Opening [Min] | Orientation | Voltage Rating | Fastening Type | Contact Material | Shell Size - Insert [custom] | Connector Type | Number of Positions | Shell Material | Features | Contact Finish - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Chrome over Nickel | Silver | Brass Chrome over Nickel | IP68 - Dust Tight Waterproof | Polyetheretherketone (PEEK) | Industrial Medical Military Testing Equipment & Measurement | Unshielded | 120 °C | -40 C | Free Hanging (In-Line) Right Angle | 6 A | Metal | 0.276 " | 0.295 in | 7.5 mm | 7 mm | 0 | 366 V | Push-Pull | Brass | 2 | Plug Male Pins | 16 | Brass | Backshell | Gold | |
Chrome over Nickel | Silver | Brass Chrome over Nickel | IP68 - Dust Tight Waterproof | Polyetheretherketone (PEEK) | Industrial Medical Military Testing Equipment & Measurement | Unshielded | 120 °C | -40 C | Free Hanging (In-Line) Right Angle | 7.5 A | Metal | 0.335 in 8.5 mm | 0.354 in 9 mm | 0 | 400 V | Push-Pull | Brass | 2 | Plug Male Pins | 12 | Brass | Backshell | Gold |
