851-47 Series

Manufacturer: Mill-Max Manufacturing Corp.

Catalog

Catalog

CONN RCPT 29POS 0.05 GOLD PCB

...

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Shape	Insulation Material	Contact Material	Mounting Type	Insulation Color	Number of Positions	Connector Type	Number of Rows	Termination	Contact Type	Pitch - Mating	Pitch - Mating	Material Flammability Rating	Insulation Height [z]	Insulation Height [z]	Current Rating (Amps)	Contact Finish - Post	Contact Finish Thickness - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions Loaded	Contact Finish - Mating	Contact Length - Post	Contact Length - Post	Fastening Type	Insulation Height	Insulation Height	Number of Positions [custom]
Mill-Max Manufacturing Corp. 851-47-029-10-001000	200 µin	5.08 µm	Circular	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Beryllium Copper	Through Hole	Black	29	Receptacle	1	Solder	Female Socket	1.27 mm	0.05 in	UL94 V-0	4.1 mm	0.161 in	3 A	Tin	Flash	-55 C	125 °C	All	Gold	2.51 mm	0.099 in	Push-Pull

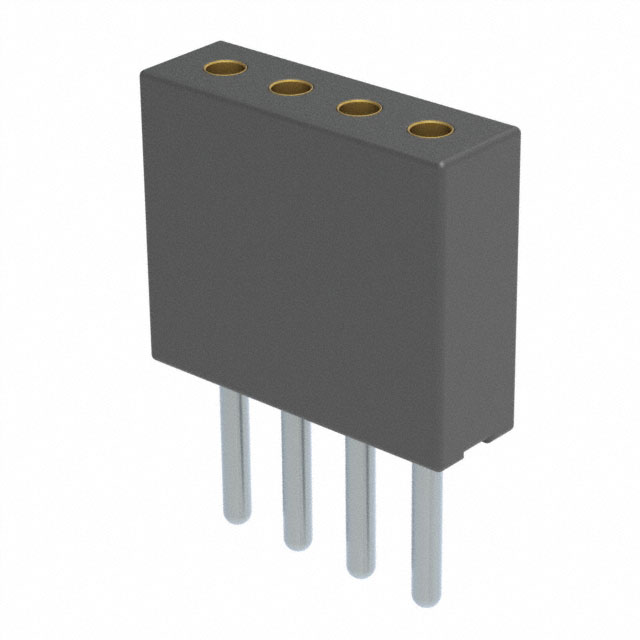

Mill-Max Manufacturing Corp. 851-47-004-10-002000	200 µin	5.08 µm	Circular	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Beryllium Copper	Through Hole	Black	4	Receptacle	1	Solder	Female Socket	1.27 mm	0.05 in	UL94 V-0	4.7 mm	0.185 in	3 A	Tin	Flash	-55 C	125 °C	All	Gold	2.92 mm	0.115 in	Push-Pull
Mill-Max Manufacturing Corp. 851-47-045-10-002000	200 µin	5.08 µm	Circular	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Beryllium Copper	Through Hole	Black	45	Receptacle	1	Solder	Female Socket	1.27 mm	0.05 in	UL94 V-0	4.7 mm	0.185 in	3 A	Tin	Flash	-55 C	125 °C	All	Gold	2.92 mm	0.115 in	Push-Pull

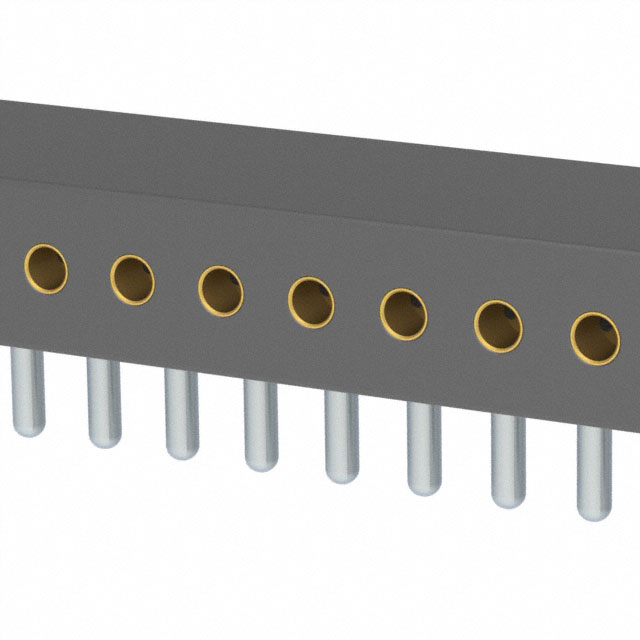

Mill-Max Manufacturing Corp. 851-47-033-20-001000	200 µin	5.08 µm	Circular	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Beryllium Copper	Right Angle Through Hole	Black		Receptacle	1	Solder	Female Socket	1.27 mm	0.05 in	UL94 V-0			3 A	Tin	Flash	-55 C	125 °C	All	Gold	3 mm	0.118 in	Push-Pull	0.087 "	2.2 mm	33
Mill-Max Manufacturing Corp. 851-47-018-20-001000	200 µin	5.08 µm	Circular	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Beryllium Copper	Right Angle Through Hole	Black	18	Receptacle	1	Solder	Female Socket	1.27 mm	0.05 in	UL94 V-0			3 A	Tin	Flash	-55 C	125 °C	All	Gold	3 mm	0.118 in	Push-Pull	0.087 "	2.2 mm
Mill-Max Manufacturing Corp. 851-47-034-20-001000	200 µin	5.08 µm	Circular	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Beryllium Copper	Right Angle Through Hole	Black		Receptacle	1	Solder	Female Socket	1.27 mm	0.05 in	UL94 V-0			3 A	Tin	Flash	-55 C	125 °C	All	Gold	3 mm	0.118 in	Push-Pull	0.087 "	2.2 mm	34

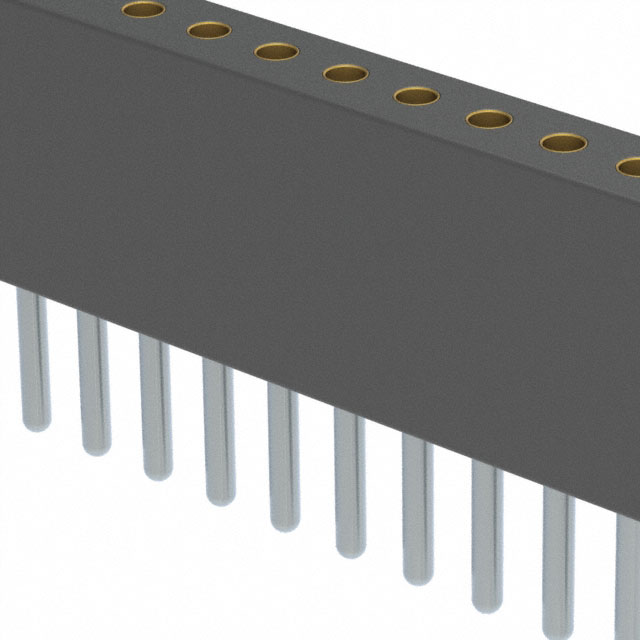

Mill-Max Manufacturing Corp. 851-47-033-10-002000	200 µin	5.08 µm	Circular	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Beryllium Copper	Through Hole	Black		Receptacle	1	Solder	Female Socket	1.27 mm	0.05 in	UL94 V-0	4.7 mm	0.185 in	3 A	Tin	Flash	-55 C	125 °C	All	Gold	2.92 mm	0.115 in	Push-Pull			33
Mill-Max Manufacturing Corp. 851-47-038-10-002000	200 µin	5.08 µm	Circular	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Beryllium Copper	Through Hole	Black	38	Receptacle	1	Solder	Female Socket	1.27 mm	0.05 in	UL94 V-0	4.7 mm	0.185 in	3 A	Tin	Flash	-55 C	125 °C	All	Gold	2.92 mm	0.115 in	Push-Pull
Mill-Max Manufacturing Corp. 851-47-029-10-002000	200 µin	5.08 µm	Circular	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Beryllium Copper	Through Hole	Black	29	Receptacle	1	Solder	Female Socket	1.27 mm	0.05 in	UL94 V-0	4.7 mm	0.185 in	3 A	Tin	Flash	-55 C	125 °C	All	Gold	2.92 mm	0.115 in	Push-Pull

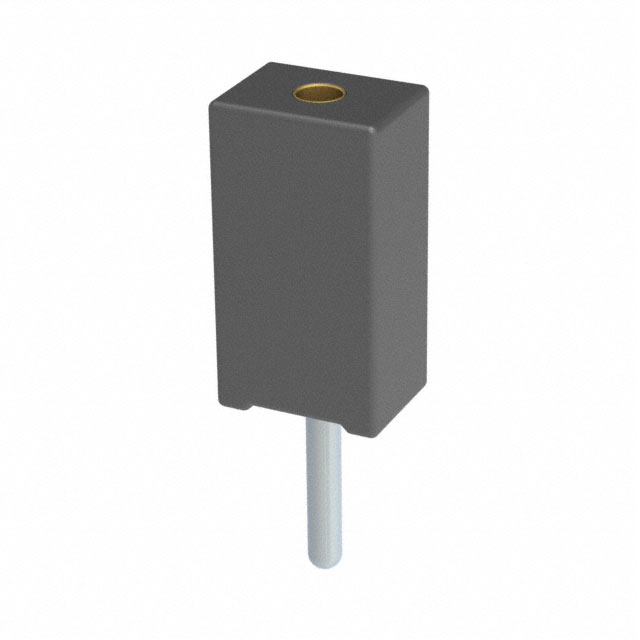

Mill-Max Manufacturing Corp. 851-47-001-10-001000	200 µin	5.08 µm	Circular	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Beryllium Copper	Through Hole	Black	1	Receptacle	1	Solder	Female Socket			UL94 V-0	4.1 mm	0.161 in	3 A	Tin	Flash	-55 C	125 °C	All	Gold	2.51 mm	0.099 in	Push-Pull
