1056436 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

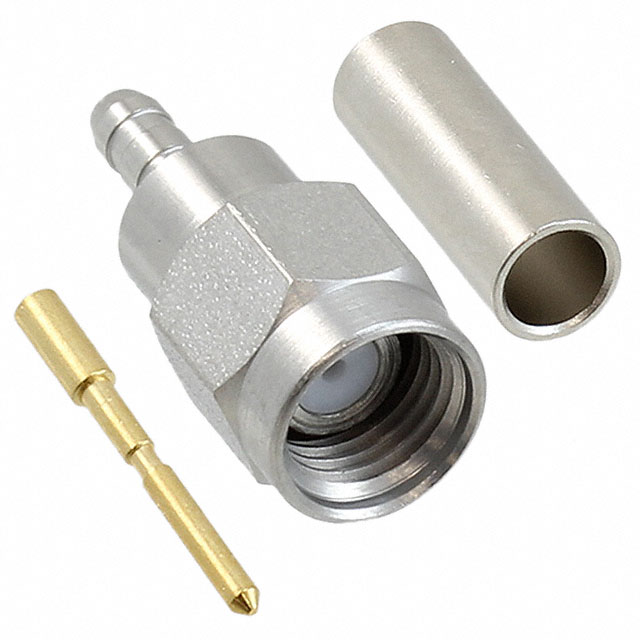

CONN SMA PLUG STR 50 OHM SOLDER
| Part | Dielectric Material | Voltage Rating | Center Contact Plating | Operating Temperature [Min] | Operating Temperature [Max] | Mating Cycles | Body Material | Number of Ports | Contact Termination | Center Contact Material | Connector Type | Housing Color | Mounting Type | Impedance | Connector Style | Shield Termination | Fastening Type | Frequency - Max [Max] | Cable Group |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Polytetrafluoroethylene (PTFE) | 250 V | Gold | -65 ░C | 165 °C | 500 | Stainless Steel | 1 | Solder | Brass | Plug Male Pin | Silver | Free Hanging (In-Line) | 50 Ohms | SMA | Crimp | Threaded | 12.4 GHz | RD-316 Double Braid |
