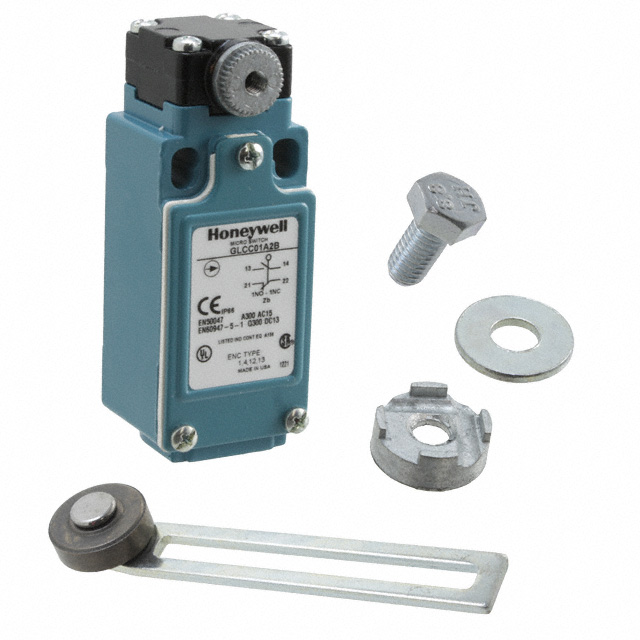

GLCC01 Series
Manufacturer: Honeywell Sensing and Productivity Solutions
Beta
⌘K
SWITCH SNAP ACTION SPDT 6A 120V
| Part | Mounting Type | Termination Style | Actuator Type | Voltage Rating - AC | Current Rating (Amps) | Switch Function | Mechanical Life | Voltage Rating - DC | Operating Temperature [Max] | Operating Temperature [Min] | Operating Force | Ingress Protection | Overtravel | Overtravel | Pretravel | Pretravel | Operating Position | Operating Position | Circuit | Features | Differential Travel |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Honeywell Sensing and Productivity Solutions | Chassis Mount | Screw Terminal | Roller Plunger | 120 V | 6 A 550 mA | On-Mom | 15000000 Cycles | 125 VDC | 85 °C | -40 °C | 1632 gf | IP67 - Dust Tight Waterproof | 3 mm | 0.118 in | 0.12 in | 3 mm | 1.1 in | 28 mm | SPDT | ||
 Honeywell Sensing and Productivity Solutions | Chassis Mount | Screw Terminal | Side Rotary Adjustable Roller | 120 V | 6 A 550 mA | On-Mom | 10000000 Cycles | 125 VDC | 85 °C | -40 °C | 12 gfm | IP67 - Dust Tight Waterproof | 49 ° | 26 ° | 26 ° | SPDT | Steel Roller | 12 ° |
