CGS CJB Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

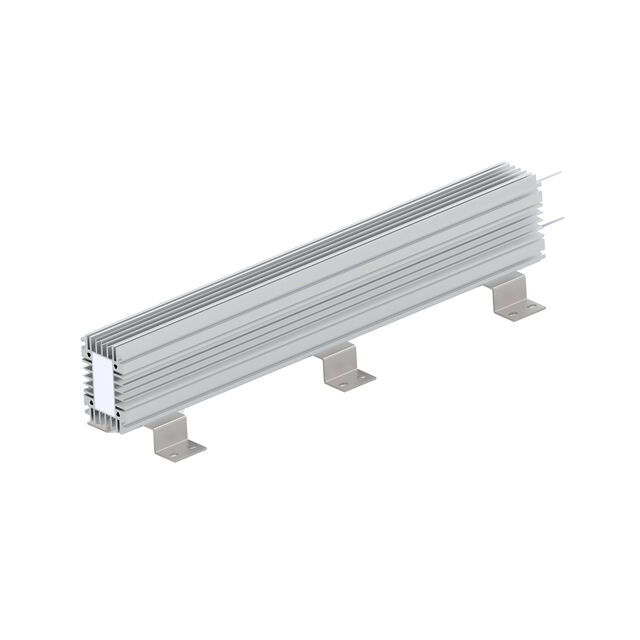

RESISTOR, 6.8 OHM, CJB SERIES, 1.475 KW, ± 5%, WIRE LEADED, 1.1 KVDC
| Part | Tolerance | Temperature Coefficient | Resistance | Power (Watts) | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Feature | Package / Case | Lead Style | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Composition | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Coating, Housing Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 5 % | 200 ppm/°C | 6.8 Ohms | 1475 W | -40 C | 200 °C | Brackets | Radial Rectangular Case | Wire Leads | 4.587 in | 116.5 mm | Wirewound | 60 mm | 625 mm | 2.362 in | 24.606 " | Aluminum |
 TE Connectivity AMP Connectors | 5 % | 200 ppm/°C | 33 Ohms | 525 W | -40 C | 200 °C | Brackets | Radial Rectangular Case | Wire Leads | 4.587 in | 116.5 mm | Wirewound | 60 mm | 295 mm | 2.362 in | 11.614 in | Aluminum |
 TE Connectivity AMP Connectors | 5 % | 200 ppm/°C | 100 Ohms | 1475 W | -40 C | 200 °C | Brackets | Radial Rectangular Case | Wire Leads | 4.587 in | 116.5 mm | Wirewound | 60 mm | 625 mm | 2.362 in | 24.606 " | Aluminum |
TE Connectivity AMP Connectors | 5 % | 200 ppm/°C | 33 Ohms | 1700 W | -40 C | 200 °C | Brackets | Radial Rectangular Case | Wire Leads | 4.587 in | 116.5 mm | Wirewound | 60 mm | 725 mm | 2.362 in | 28.543 " | Aluminum |
 TE Connectivity AMP Connectors | 5 % | 200 ppm/°C | 4.7 Ohms | 400 W | -40 C | 200 °C | Brackets | Radial Rectangular Case | Wire Leads | 4.587 in | 116.5 mm | Wirewound | 60 mm | 225 mm | 2.362 in | 8.858 " | Aluminum |
 TE Connectivity AMP Connectors | 5 % | 200 ppm/°C | 68 Ohms | 1475 W | -40 C | 200 °C | Brackets | Radial Rectangular Case | Wire Leads | 4.587 in | 116.5 mm | Wirewound | 60 mm | 625 mm | 2.362 in | 24.606 " | Aluminum |
TE Connectivity AMP Connectors | 5 % | 200 ppm/°C | 6.8 Ohms | 400 W | -40 C | 200 °C | Brackets | Radial Rectangular Case | Wire Leads | 4.587 in | 116.5 mm | Wirewound | 60 mm | 225 mm | 2.362 in | 8.858 " | Aluminum |
 TE Connectivity AMP Connectors | 5 % | 200 ppm/°C | 4.7 Ohms | 525 W | -40 C | 200 °C | Brackets | Radial Rectangular Case | Wire Leads | 4.587 in | 116.5 mm | Wirewound | 60 mm | 295 mm | 2.362 in | 11.614 in | Aluminum |
TE Connectivity AMP Connectors | 5 % | 200 ppm/°C | 33 Ohms | 650 W | -40 C | 200 °C | Brackets | Radial Rectangular Case | Wire Leads | 4.587 in | 116.5 mm | Wirewound | 60 mm | 365 mm | 2.362 in | 14.37 " | Aluminum |
TE Connectivity AMP Connectors | 5 % | 200 ppm/°C | 68 Ohms | 650 W | -40 C | 200 °C | Brackets | Radial Rectangular Case | Wire Leads | 4.587 in | 116.5 mm | Wirewound | 60 mm | 365 mm | 2.362 in | 14.37 " | Aluminum |
