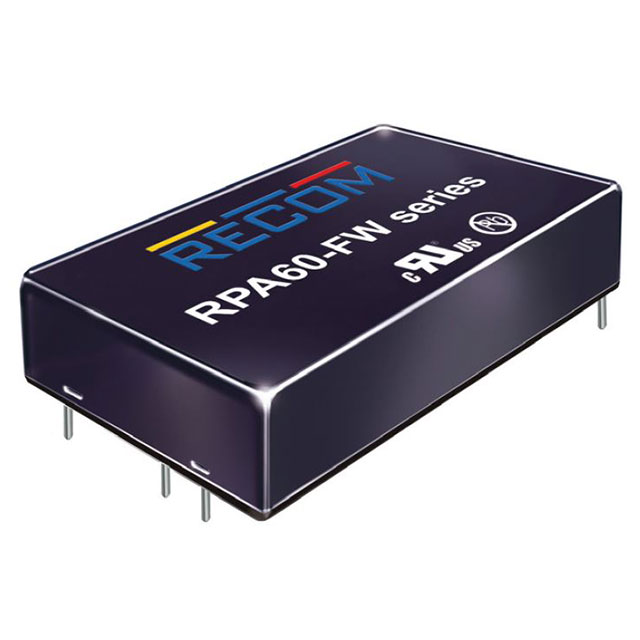

RPA60-FW Series
Manufacturer: Recom Power
Beta
⌘K
ISOLATED THROUGH HOLE DC/DC CONVERTER, ITE, DIP, 4:1, 60 W, 1 OUTPUT, 12 V
| Part | Package / Case | Voltage - Output 1 | Operating Temperature [Max] | Operating Temperature [Min] | Number of Outputs | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Control Features | Voltage - Input (Min) [Min] | Voltage - Input (Max) [Max] | Features | Power (Watts) | Efficiency | Current - Output (Max) | Voltage - Isolation | Mounting Type | Type | Applications | Current - Output (Max) [Max] | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Recom Power | 6-DIP Module | 12 V | 105 C | -40 °C | 1 | 25.4 mm | 17.1 mm | 0.67 in | 1 " | 2 in | 50.8 mm | Active High Enable | 9 V | 36 V | OCP OTP OVP Remote On/Off SCP UVLO | 60 W | 92.8 % | 5 A | 1.5 kV | Through Hole | Isolated Module | ITE (Commercial) Railway | ||
 Recom Power | 6-DIP Module 5 Leads | 15 V | 105 C | -40 °C | 1 | 9 V | 36 V | OCP OTP OVP SCP UVLO | 60 W | 93.3 % | 1.5 kV | Through Hole | Isolated Module | ITE (Commercial) Railway | 4 A | 0.4 in 10.2 mm 25.4 mm 50.8 mm | ||||||||
 Recom Power | 6-DIP Module | 24 V | 105 C | -40 °C | 1 | Active High Enable | 9 V | 36 V | OCP OTP OVP Remote On/Off SCP UVLO | 60 W | 93 % | 1.5 kV | Through Hole | Isolated Module | ITE (Commercial) Railway | 2.5 A | 0.4 in 10.2 mm 25.4 mm 50.8 mm | |||||||
 Recom Power | 6-DIP Module 5 Leads | 24 V | 105 C | -40 °C | 1 | 25.4 mm | 17.1 mm | 0.67 in | 1 " | 2 in | 50.8 mm | 9 V | 36 V | OCP OTP OVP SCP UVLO | 60 W | 93 % | 1.5 kV | Through Hole | Isolated Module | ITE (Commercial) Railway | 2.5 A | |||
Recom Power | 6-DIP Module 5 Leads | 5 V | 105 C | -40 °C | 1 | 9 V | 36 V | OCP OTP OVP SCP UVLO | 60 W | 92.4 % | 1.5 kV | Through Hole | Isolated Module | ITE (Commercial) Railway | 12 A | 0.4 in 10.2 mm 25.4 mm 50.8 mm | ||||||||
Recom Power | 6-DIP Module | 5 V | 105 C | -40 °C | 1 | 25.4 mm | 17.1 mm | 0.67 in | 1 " | 2 in | 50.8 mm | Active Low Enable | 9 V | 36 V | OCP OTP OVP Remote On/Off SCP UVLO | 60 W | 92.4 % | 1.5 kV | Through Hole | Isolated Module | ITE (Commercial) Railway | 12 A | ||
Recom Power | 6-DIP Module 5 Leads | 24 V | 105 C | -40 °C | 1 | 9 V | 36 V | OCP OTP OVP SCP UVLO | 60 W | 93 % | 1.5 kV | Through Hole | Isolated Module | ITE (Commercial) Railway | 2.5 A | 0.4 in 10.2 mm 25.4 mm 50.8 mm | ||||||||
 Recom Power | 6-DIP Module | 24 V | 105 C | -40 °C | 1 | Active Low Enable | 9 V | 36 V | OCP OTP OVP Remote On/Off SCP UVLO | 60 W | 93 % | 1.5 kV | Through Hole | Isolated Module | ITE (Commercial) Railway | 2.5 A | 0.4 in 10.2 mm 25.4 mm 50.8 mm | |||||||
Recom Power | 6-DIP Module | 5 V | 105 C | -40 °C | 1 | 25.4 mm | 17.1 mm | 0.67 in | 1 " | 2 in | 50.8 mm | Active High Enable | 9 V | 36 V | OCP OTP OVP Remote On/Off SCP UVLO | 60 W | 92.4 % | 1.5 kV | Through Hole | Isolated Module | ITE (Commercial) Railway | 12 A | ||
Recom Power | 6-DIP Module 5 Leads | 12 V | 105 C | -40 °C | 1 | 25.4 mm | 17.1 mm | 0.67 in | 1 " | 2 in | 50.8 mm | 9 V | 36 V | OCP OTP OVP SCP UVLO | 60 W | 92.8 % | 5 A | 1.5 kV | Through Hole | Isolated Module | ITE (Commercial) Railway |
