1744057 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

CONN HEADER VERT 9POS 3.96MM

Part	Applications	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Style	Insulation Material	Shrouding	Connector Type	Termination	Voltage Rating	Insulation Color	Current Rating (Amps)	Material Flammability Rating	Contact Length - Mating	Contact Length - Mating	Contact Material	Features	Contact Length - Post	Contact Length - Post	Contact Shape	Mounting Type	Contact Type	Pitch - Mating	Pitch - Mating	Fastening Type	Overall Contact Length [x]	Overall Contact Length [x]	Number of Positions	Contact Finish - Post	Number of Positions Loaded	Insulation Height	Insulation Height	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Operating Temperature [Max]	Operating Temperature [Min]	Number of Rows
TE Connectivity AMP Connectors 1744057-9	General Purpose Industrial Lighting	120 Áin	3.05 Ám	Board to Cable/Wire	Nylon 6/6 Polyamide (PA66)	Shrouded - 1 Wall	Header	Solder	250 VAC	Natural	7.5 A	UL94 V-0	0.303 in	7.7 mm	Brass	Board Guide	3.68 mm	0.145 in	Square	Through Hole	Male Pin	3.96 mm	0.156 in	Locking Ramp	14.6 mm	0.575 in	9	Tin	All	0.127 in	3.22 mm	120 µin	3.05 µm	105 ░C	-25 °C	1

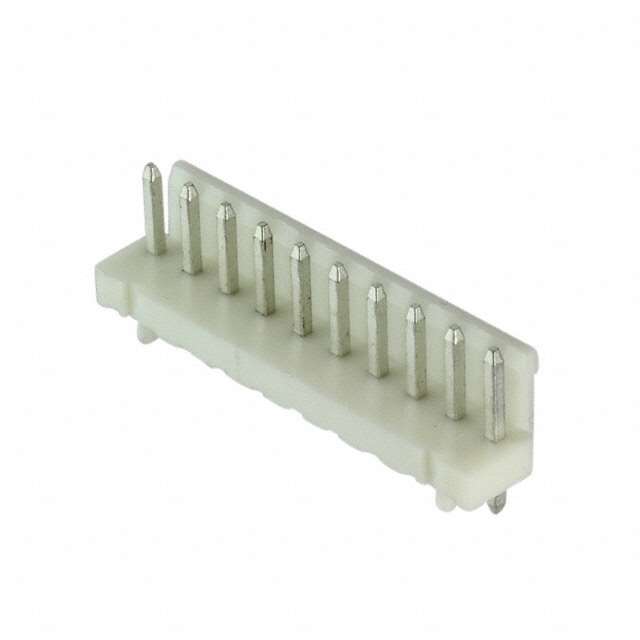

TE Connectivity AMP Connectors 1-1744057-0	General Purpose Industrial Lighting	120 Áin	3.05 Ám	Board to Cable/Wire	Nylon 6/6 Polyamide (PA66)	Shrouded - 1 Wall	Header	Solder	250 VAC	Natural	7.5 A	UL94 V-0	0.303 in	7.7 mm	Brass	Board Guide	3.68 mm	0.145 in	Square	Through Hole	Male Pin	3.96 mm	0.156 in	Locking Ramp	14.6 mm	0.575 in	10	Tin	All	0.127 in	3.22 mm	120 µin	3.05 µm	105 ░C	-25 °C	1
TE Connectivity AMP Connectors 1744057-6	General Purpose Industrial Lighting	120 Áin	3.05 Ám	Board to Cable/Wire	Nylon 6/6 Polyamide (PA66)	Shrouded - 1 Wall	Header	Solder	250 VAC	Natural	7.5 A	UL94 V-0	0.303 in	7.7 mm	Brass	Board Guide	3.68 mm	0.145 in	Square	Through Hole	Male Pin	3.96 mm	0.156 in	Locking Ramp	14.6 mm	0.575 in	6	Tin	All	0.127 in	3.22 mm	120 µin	3.05 µm	105 ░C	-25 °C	1

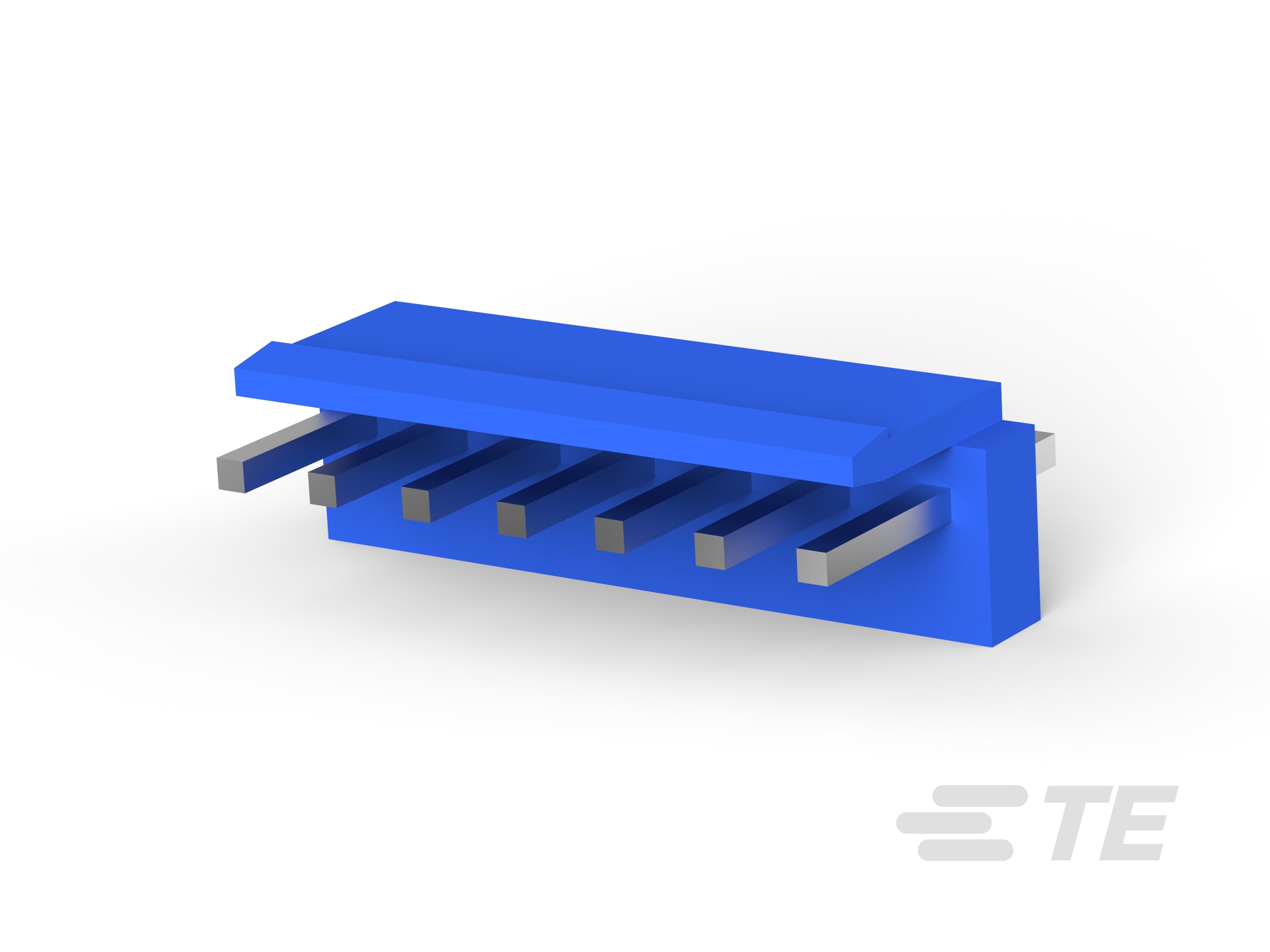

TE Connectivity AMP Connectors 2-1744057-7	General Purpose Industrial Lighting	120 Áin	3.05 Ám	Board to Cable/Wire	Nylon 6/6 Polyamide (PA66)	Shrouded - 1 Wall	Header	Solder	250 VAC	Blue	7.5 A	UL94 V-0	0.303 in	7.7 mm	Brass	Board Guide	3.68 mm	0.145 in	Square	Through Hole	Male Pin	3.96 mm	0.156 in	Locking Ramp	14.6 mm	0.575 in	7	Tin	All	0.127 in	3.22 mm	120 µin	3.05 µm	105 ░C	-25 °C	1
TE Connectivity AMP Connectors 1744057-4	General Purpose Industrial Lighting	120 Áin	3.05 Ám	Board to Cable/Wire	Nylon 6/6 Polyamide (PA66)	Shrouded - 1 Wall	Header	Solder	250 VAC	Natural	7.5 A	UL94 V-0	0.303 in	7.7 mm	Brass	Board Guide	3.68 mm	0.145 in	Square	Through Hole	Male Pin	3.96 mm	0.156 in	Locking Ramp	14.6 mm	0.575 in	4	Tin	All	0.127 in	3.22 mm	120 µin	3.05 µm	105 ░C	-25 °C	1
