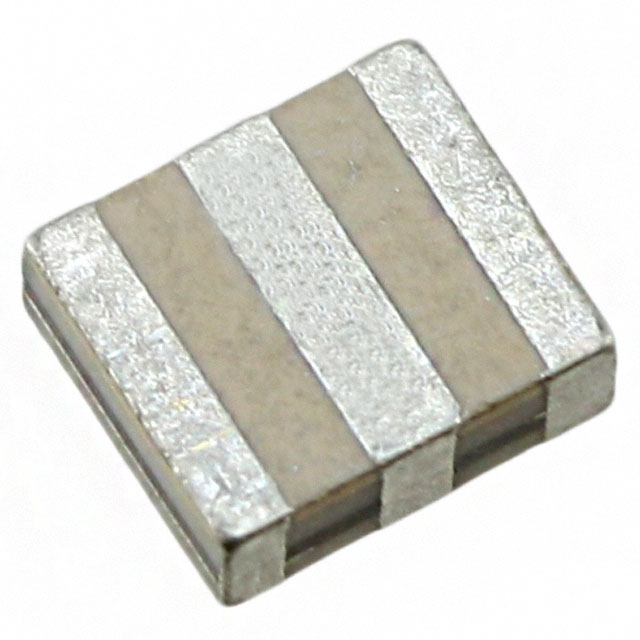

AWSCR-MTD Series
Manufacturer: Abracon LLC
Beta
⌘K
RESONATORS CER RESONATOR 24MHZ TOL +/-0.5% STAB +/-0.3% -25°C ~ 85°C 10PF 40 OHMS
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Features | Impedance | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Type | Frequency Tolerance | Frequency | Mounting Type | Package / Case | Frequency Stability | Height [z] | Height [z] | Capacitance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Abracon LLC | 85 °C | -40 C | Built in Capacitor | 40 Ohms | 4.1 mm | 0.161 in | 0.185 in | 4.7 mm | Ceramic | 0.5 % | 24 MHz | Surface Mount | 3-SMD Non-Standard | 0.5 % | 1.7 mm | 0.067 in | 15 pF |
