PTPOWER 35 Series

Catalog

DIN RAIL TERMINAL BLOCKS PTPOWER 35-FE-F

Part	Material Flammability Rating	Stripping Length	Height (Max) [z]	Height (Max) [z]	Material - Insulation	Length [x]	Length [x]	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Housing Color	Termination Style	Current - IEC	Wire Gauge or Range - mm² [Max]	Wire Gauge or Range - mm² [Min]	Mounting Type	Number of Levels	Terminal - Width [y]	Current - UL	Voltage - IEC	Number of Positions	Type	Voltage - UL	Color

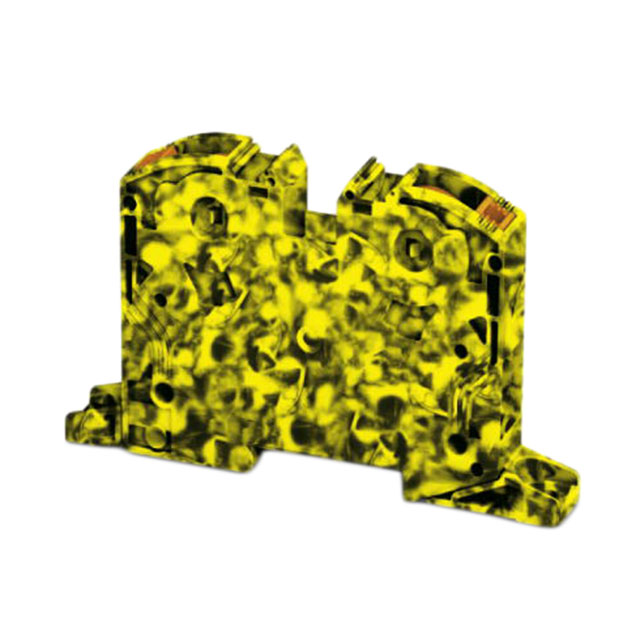

Phoenix Contact 3212082	UL94 V-0	25 mm	62.3 mm	2.453 in	Nylon Polyamide (PA)	91.59 mm	3.606 in	2 AWG	14 AWG	Black Yellow	Push In Spring	125 A	35 mm²	2.5 mm²	Direct Mount	1	16 mm	115 A	1 kV	2	Middle
Phoenix Contact 3212069								2 AWG	14 AWG		Push In Spring	125 A	35 mm²	2.5 mm²		2	48 mm	115 A	1 kV	4	Feed Through	1000 V	Blue Gray
Phoenix Contact 3212070								2 AWG	14 AWG		Push In Spring	125 A	35 mm²	2.5 mm²		2	48 mm	115 A	1 kV	4	Feed Through	1000 V
