DTMF400-xxSX-F-W10 Series
Manufacturer: ETA-USA
Beta
⌘K

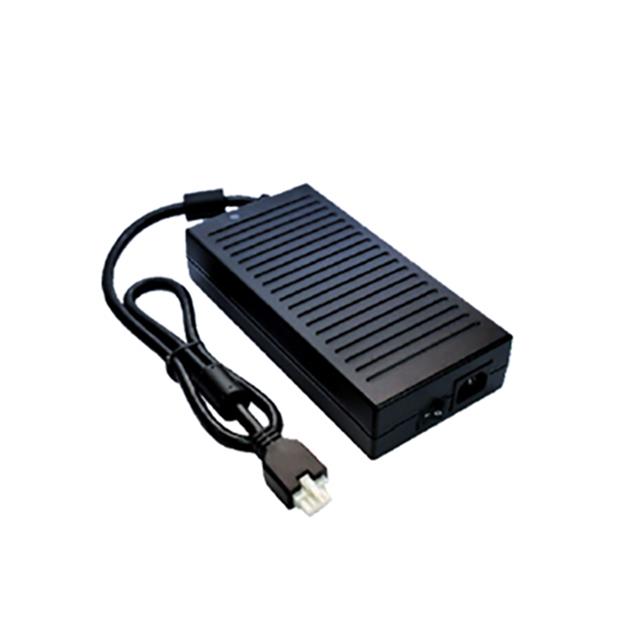

DESKTOP AC ADAPTERS 400W 90-264VAC 48V 8
| Part | Voltage - Input [Max] | Voltage - Input [Min] | Approval Agency | Input Connector | Power (Watts) | Voltage - Output | No Load Power Consumption | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Current - Output (Max) [Max] | Output Connector | Output Connector | Region Utilized | Input Type | Operating Temperature [Min] | Operating Temperature [Max] | Form | Efficiency | Applications | Standard Number | Cord Length | Cord Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ETA-USA | 264 VAC | 90 VAC | CB CE cUL FCC TUV | IEC 320-C14 | 400 W | 48 V | 500 mW | 8.74 in | 45 mm | 1.77 in | 222 mm | 4.41 " | 112 mm | 8.33 A | Rectangular | 10 Pin | International | Cord (Sold Separately) | -30 ░C | 60 °C | Desktop (Class I) | Level VI | ITE (Commercial) Medical | 60601-1; 62368-1 | 0.8 m | 31.5 in |
