M80-542 Series

Catalog

10+10 POS. MALE DIL HORIZONTAL SMT CONN. JACKSCREWS ROHS COMPLIANT: YES

Part	Insulation Color	Operating Temperature [Min]	Operating Temperature [Max]	Row Spacing - Mating	Row Spacing - Mating	Contact Finish Thickness - Post [custom]	Contact Finish Thickness - Post [custom]	Features	Shrouding	Contact Finish Thickness - Mating [custom]	Contact Finish Thickness - Mating [custom]	Insulation Height	Insulation Height	Contact Shape	Material Flammability Rating	Contact Material	Fastening Type	Style	Connector Type	Voltage Rating	Termination	Contact Finish - Post	Contact Finish - Mating	Number of Rows [custom]	Mounting Type	Pitch - Mating	Pitch - Mating	Number of Positions	Number of Positions Loaded	Insulation Material	Current Rating (Amps)	Contact Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post

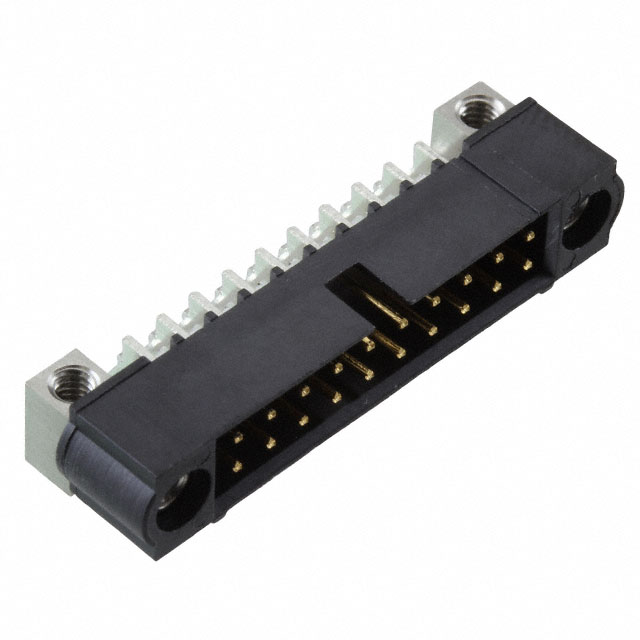

Harwin Inc. M80-5422042	Black	-55 C	125 °C	2 mm	0.079 in	118.1 µin	3 µm	Keying Slot Mating Flange Mounting Flange Mounting Hardware	Shrouded - 4 Wall	29.5 µin	0.75 µm	5.55 mm	0.218 in	Circular	UL94 V-0	Copper Alloy	Threaded	Board to Board Cable	Header	800 V	Solder	Tin	Gold	2	Right Angle Surface Mount	0.079 "	2 mm	20	All	Polyphenylene Sulfide (PPS) Glass Filled	2.2 A	Male Pin

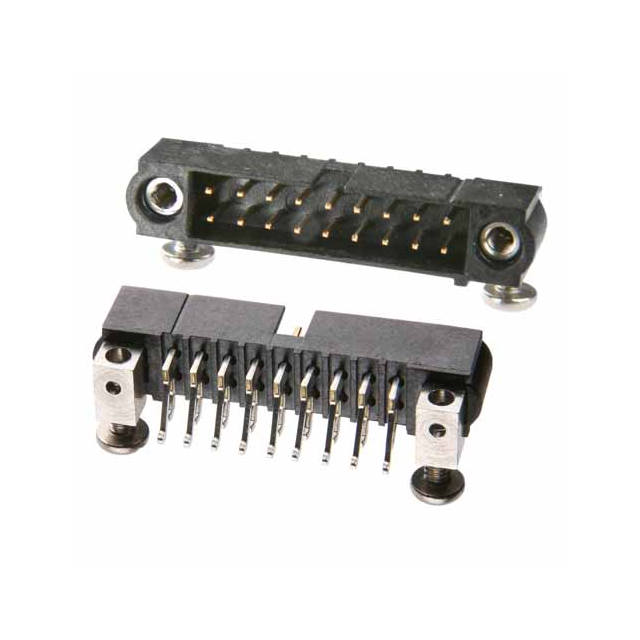

Harwin Inc. M80-5421442	Black	-55 C	125 °C	2 mm	0.079 in	118.1 µin	3 µm	Keying Slot Mating Flange Mounting Flange Mounting Hardware	Shrouded - 4 Wall	29.5 µin	0.75 µm	5.55 mm	0.218 in	Circular	UL94 V-0	Copper Alloy	Threaded	Board to Board Cable	Header	800 V	Solder	Tin	Gold	2	Right Angle Surface Mount	0.079 "	2 mm	14	All	Polyphenylene Sulfide (PPS) Glass Filled	2.2 A	Male Pin
Harwin Inc. M80-5420622	Black	-55 C	125 °C	2 mm	0.079 in	118.1 µin	3 µm	Keying Slot Mating Flange Mounting Flange Mounting Hardware	Shrouded - 4 Wall	29.5 µin	0.75 µm	5.55 mm	0.218 in	Circular	UL94 V-0	Copper Alloy	Threaded	Board to Board Cable	Header	800 V	Solder	Tin-Lead	Gold	2	Right Angle Surface Mount	0.079 "	2 mm	6	All	Polyphenylene Sulfide (PPS) Glass Filled	2.2 A	Male Pin
Harwin Inc. M80-5420805	Black	-55 C	125 °C	2 mm	0.079 in			Keying Slot Mating Flange Mounting Flange Mounting Hardware	Shrouded - 4 Wall	29.5 µin	0.75 µm	5.55 mm	0.218 in	Circular	UL94 V-0	Copper Alloy	Threaded	Board to Board Cable	Header	800 VAC	Solder	Gold	Gold	2	Right Angle Surface Mount	0.079 "	2 mm	8	All	Polyphenylene Sulfide (PPS) Glass Filled	2.2 A	Male Pin	29.5 µin	0.75 µm
Harwin Inc. M80-5425042	Black	-55 C	125 °C	2 mm	0.079 in	118.1 µin	3 µm	Keying Slot Mating Flange Mounting Flange Mounting Hardware	Shrouded - 4 Wall	29.5 µin	0.75 µm	5.55 mm	0.218 in	Circular	UL94 V-0	Copper Alloy	Threaded	Board to Board Cable	Header	800 V	Solder	Tin	Gold	2	Right Angle Surface Mount	0.079 "	2 mm	50	All	Polyphenylene Sulfide (PPS) Glass Filled	2.2 A	Male Pin

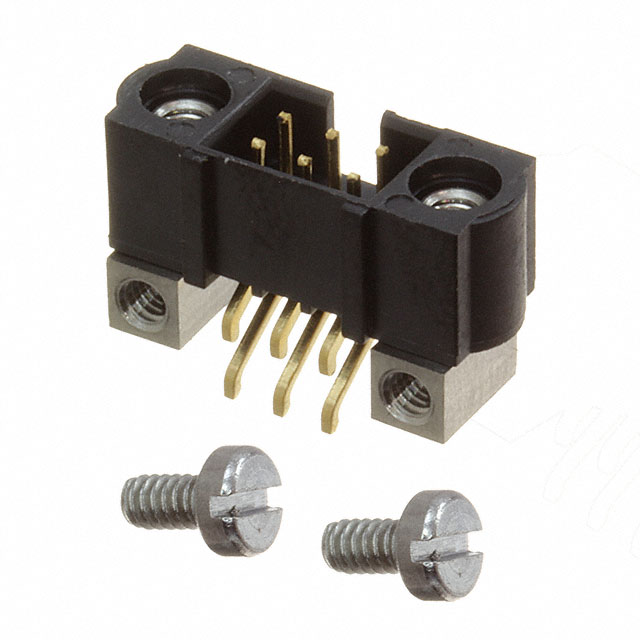

Harwin Inc. M80-5420605	Black	-55 C	125 °C	2 mm	0.079 in			Keying Slot Mating Flange Mounting Flange Mounting Hardware	Shrouded - 4 Wall	29.5 µin	0.75 µm	5.55 mm	0.218 in	Circular	UL94 V-0	Copper Alloy	Threaded	Board to Board Cable	Header	800 VAC	Solder	Gold	Gold	2	Right Angle Surface Mount	0.079 "	2 mm	6	All	Polyphenylene Sulfide (PPS) Glass Filled	2.2 A	Male Pin	29.5 µin	0.75 µm
Harwin Inc. M80-5422022	Black	-55 C	125 °C	2 mm	0.079 in	118.1 µin	3 µm	Keying Slot Mating Flange Mounting Flange Mounting Hardware	Shrouded - 4 Wall	29.5 µin	0.75 µm	5.55 mm	0.218 in	Circular	UL94 V-0	Copper Alloy	Threaded	Board to Board Cable	Header	800 V	Solder	Tin-Lead	Gold	2	Right Angle Surface Mount	0.079 "	2 mm	20	All	Polyphenylene Sulfide (PPS) Glass Filled	2.2 A	Male Pin
