ALFG2P Series

Manufacturer: Panasonic Electronic Components

Catalog

POWER RELAY, SPST-NO, 12 VDC, 33 A, LF-G(ALFG) SERIES, THROUGH HOLE, NON LATCHING

Part	Coil Resistance	Approval Agency	Relay Type	Coil Voltage	Termination Style	Mounting Type	Coil Current	Release Time	Must Operate Voltage	Operate Time	Operating Temperature [Max]	Operating Temperature [Min]	Switching Voltage [Max]	Contact Material	Must Release Voltage	Load - Max Switching [Max]	Contact Form	Coil Insulation	Contact Rating (Current)	Coil Type
Panasonic Electronic Components ALFG2PF121	103 Ohms	cURus VDE	General Purpose	12 VDC	PC Pin	Through Hole	117 mA	10 ms	8.4 VDC	20 ms	60 °C	-40 C	250 VAC	Silver Tin Oxide (AgSnO)	1.2 VDC	8250 VA	SPST-NO (1 Form A)	Class F	33 A	Non Latching
Panasonic Electronic Components ALFG2PF181	230 Ohms	cURus VDE	General Purpose	18 VDC	PC Pin	Through Hole	78 mA	10 ms	12.6 VDC	20 ms	60 °C	-40 C	250 VAC	Silver Tin Oxide (AgSnO)	1.8 VDC	8250 VA	SPST-NO (1 Form A)	Class F	33 A	Non Latching
Panasonic Electronic Components ALFG2PF09	58 Ohms	cURus VDE	General Purpose	9 VDC	PC Pin	Through Hole	155 mA	10 ms	6.3 VDC	20 ms	60 °C	-40 C	250 VAC	Silver Tin Oxide (AgSnO)	0.9 VDC	7750 VA	SPST-NO (1 Form A)	Class F	31 A	Non Latching
Panasonic Electronic Components ALFG2PF091	58 Ohms	cURus VDE	General Purpose	9 VDC	PC Pin	Through Hole	155 mA	10 ms	6.3 VDC	20 ms	60 °C	-40 C	250 VAC	Silver Tin Oxide (AgSnO)	0.9 VDC	7750 VA	SPST-NO (1 Form A)	Class F	31 A	Non Latching
Panasonic Electronic Components ALFG2PF24	410 Ohms	cURus VDE	General Purpose	24 VDC	PC Pin	Through Hole	58.6 mA	10 ms	16.8 VDC	20 ms	60 °C	-40 C	250 VAC	Silver Tin Oxide (AgSnO)	2.4 VDC	7750 VA	SPST-NO (1 Form A)	Class F	31 A	Non Latching

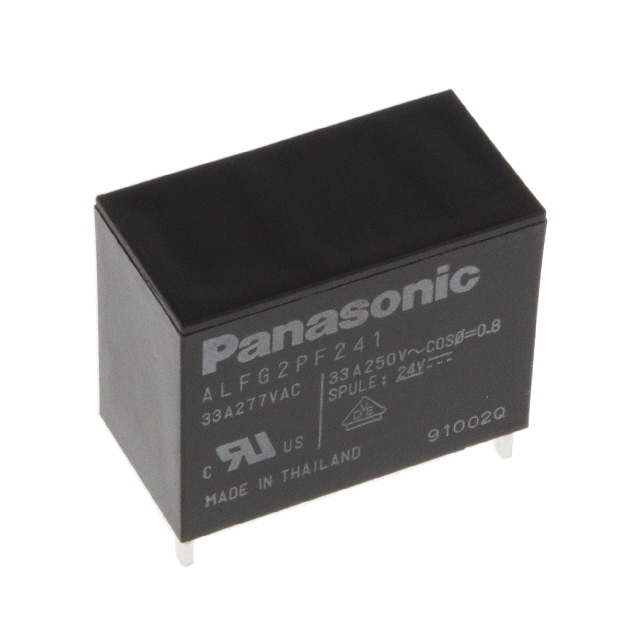

Panasonic Electronic Components ALFG2PF241	410 Ohms	cURus VDE	General Purpose	24 VDC	PC Pin	Through Hole	58.6 mA	10 ms	16.8 VDC	20 ms	60 °C	-40 C	250 VAC	Silver Tin Oxide (AgSnO)	2.4 VDC	8250 VA	SPST-NO (1 Form A)	Class F	33 A	Non Latching
